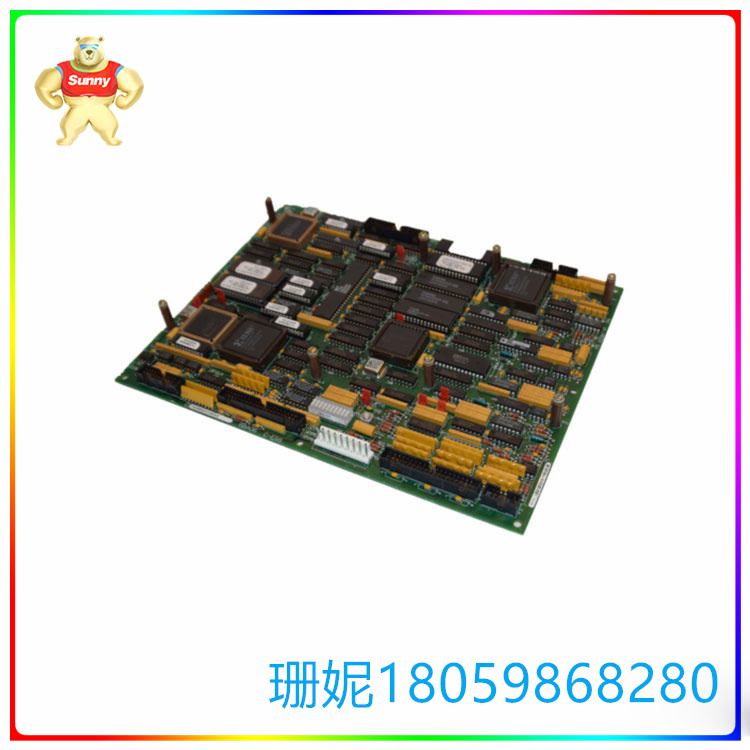

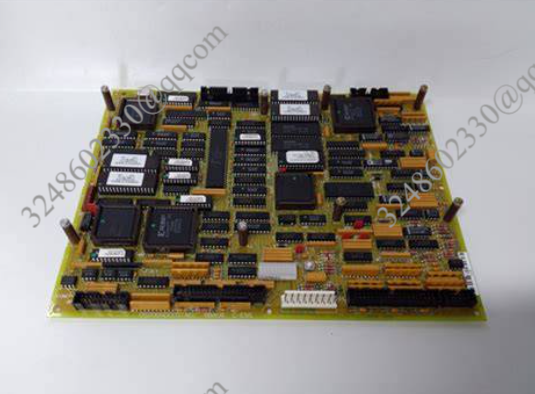

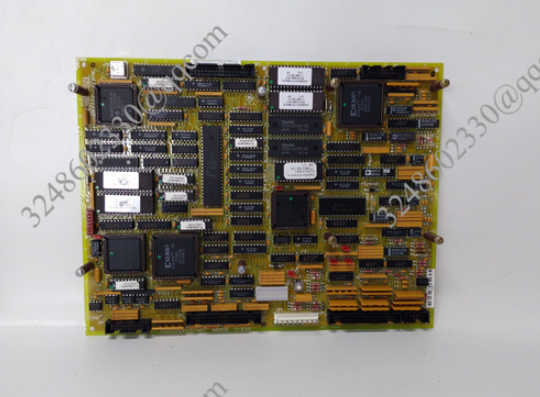

DS200SDCCG1AGD 驱动控制板 可以由多个微处理器同时访问

【产品详情】

通用电气驱动控制板DS200SDCCG1AGD是用于马克V系列的驱动器的主要控制器之一。通用电气驱动控制板DS200SDCCG1AGD由三个微处理器和RAM组成，可以由多个微处理器同时访问。GE驱动控制板DS200SDCCG1AGD上的10个led用于显示故障码，当发生错误时触发故障。十个led排成一排，一起显示错误代码。如果没有遇到错误并且电路板正常工作，则led从左到右依次点亮两个led。

要查看DS200SDCCG1AGD上的led，您可以打开单板柜门，定位单板，目视检查led并了解单板的状况。单板和各部件均存在高压，打开单板柜门时应小心操作。当电源被应用到驱动器时，不要触摸机柜中的任何东西。另外，柜门开着的时候不要让任何东西掉在柜内，检查完毕后要关门。

第一次启动单板时，必须设置配置参数，以定义单板如何处理信息和控制驱动器。有可用的软件工具使您能够编辑参数。这些工具可以在笔记本电脑上使用。如果您同时需要配置多个单元，您可以创建一个配置，并将相同的配置下载到多个板。

有关DS200SDCCG1AGD型号的更多信息，请参阅GEI-100029驱动器控制卡手册，其中提供了卡组，LED诊断等信息。

DS200SDCCG1AGD 驱动控制板 可以由多个微处理器同时访问

【英文介绍】

The General Electric Drive Control Board DS200SDCCG1AGD is one of the main controllers for drives in the Mark V series. The General Electric Drive control board DS200SDCCG1AGD consists of three microprocessors and RAM and can be accessed by multiple microprocessors simultaneously. The 10 leds on the GE drive control board DS200SDCCG1AGD are used to display fault codes and trigger faults when errors occur. Ten leds are lined up and display error codes together. If no errors are encountered and the board is working properly, the led lights up two leds from left to right.

To view the led on the DS200SDCCG1AGD, you can open the board cabinet door, position the board, visually inspect the led and understand the condition of the board. The boards and components are under high pressure. Therefore, be careful when opening the board cabinet door. When the power is applied to the drive, do not touch anything in the cabinet. In addition, do not let anything fall in the cabinet when the door is open, and close the door after inspection.

When you start the board for the first time, you must set configuration parameters to define how the board handles information and controls the drive. There are software tools available that enable you to edit parameters. These tools can be used on a laptop. If you need to configure more than one unit at the same time, you can create a configuration and download the same configuration to multiple boards.

For more information on the DS200SDCCG1AGD model, please refer to the GEI-100029 Driver Control Card Manual, which provides information on card sets, LED diagnostics, and more.
