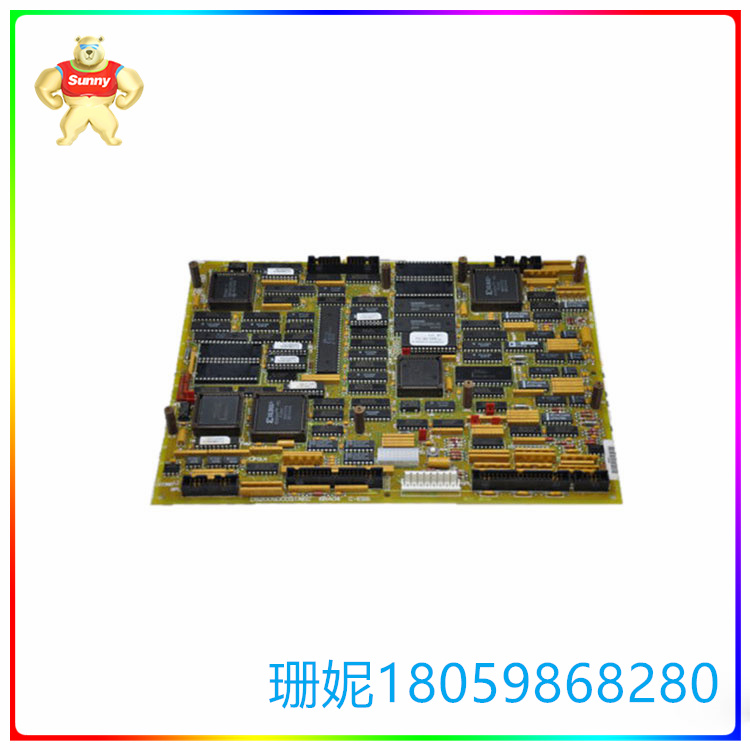

DS200SDCCG1AEC 驱动器的主控制器 可由多个微处理器同时访问

【产品详情】

GE驱动控制板DS200SDCCG1AEC是驱动器的主控制器。GE驱动控制板DS200SDCCG1AEC由3个微处理器和RAM组成，可由多个微处理器同时访问。

如果出现问题，您可以使用几种工具对电路板进行故障排除。首先，打开机柜门，查看单板上的led指示灯。GE驱动控制板DS200SDCCG1AEC由10个led组成，排列在板上。当led连续闪烁时，这意味着板的操作没有错误。当led缓慢闪烁时，它们表示错误代码从1到399。当led闪烁更快时，它们表示错误代码在400到1023之间。

测试点在电路板上可用。它们是金属柱，你可以用测试仪探测来测试信号路径。该程序只能由经过培训的服务人员执行，测试设备必须经过批准，并且必须针对任务进行校准。

您可以使用的另一个诊断工具是驱动器上可用的诊断工具。诊断工具可以从控制面板访问，它们产生驱动器中所有组件性能的详细描述。如果发现问题的根源在单板上，您可以解决问题并解决问题。

诊断结果可以通过串行连接从驱动器下载到笔记本电脑。

DS200SDCCG1AEC 驱动器的主控制器 可由多个微处理器同时访问

【英文介绍】

The GE drive control board DS200SDCCG1AEC is the main controller of the drive. The GE drive control board DS200SDCCG1AEC consists of three microprocessors and RAM and can be accessed by multiple microprocessors at the same time.

If something goes wrong, there are several tools you can use to troubleshoot the board. First, open the cabinet door and check the led indicator on the board. The GE drive control board DS200SDCCG1AEC consists of 10 leds arranged on the board. When the led flashes continuously, it means that there is no error in the operation of the board. When leds blink slowly, they indicate error codes from 1 to 399. When leds blink faster, they indicate error codes between 400 and 1023.

Test points are available on the circuit board. They are metal posts that you can detect with a tester to test the signal path. The procedure can only be performed by trained service personnel, test equipment must be approved, and it must be calibrated for the task.

Another diagnostic tool you can use is the diagnostic tool available on your drive. Diagnostic tools are accessible from the control panel and they produce a detailed description of the performance of all components in the drive. If the root of the problem is found on the board, you can fix the problem and resolve it.

Diagnostic results can be downloaded from the drive to the laptop via a serial connection.

DS200SDCCG1AEC 驱动器的主控制器 可由多个微处理器同时访问
