DS200RTBAG2AFB 继电器端子板 提供了额外的十个继电器

【产品详情】

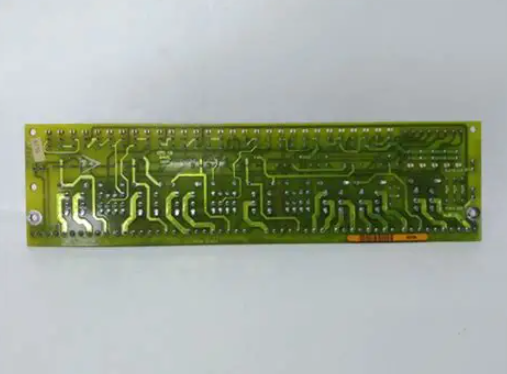

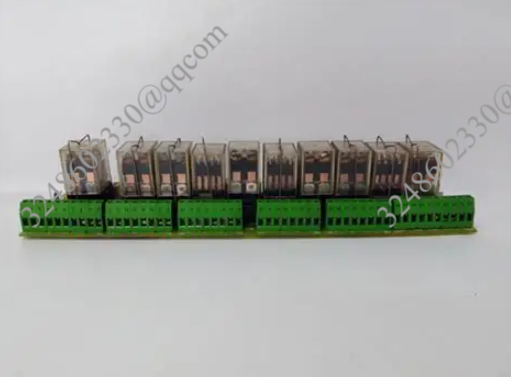

DS200RTBAG2AFB是为通用电气Mark V板系列设计的继电器端子板(RTBA)。该板可用于多个GE品牌驱动器和励磁器的应用。通过将该板安装到驱动柜中，向用户提供了额外的十个继电器。LAN I/O终端和远程用户都可以驱动这块板上的继电器。

位置K20至K29是所有板载继电器的电路板位置。DS200RTBAG2AFB包括两种继电器，DPDT和4PDT。DPDT类型包括卡上的七个继电器，包括K20到K26。这些类型具有两个C型触点，每个触点额定10A。K27到K29是第二种继电器类型，4PDT。而不是两个，4PDT继电器包括四个形式C触点，每个速率1A。所有这些点都由130 VAC金属氧化物压敏电阻(MOV)保护。每个继电器包含一个内部110 VDC线圈，以确保它们正常运行。如果任何继电器停止工作或断开，用户可以很容易地拆卸和更换所有十个点。

DS200RTBAG2AFB型号有两个连接器;一个是16针连接器，另一个是两针连接器。16针连接器被标记为RPL，两针连接器被标记为OPTPL。OPTPL连接器有两个命名X2和CFX1。X2命名法将信号发送回CFX1命名法120vac负载的NTB/3TB板。此命名法与RPL X2命名法相同。有关这两个连接器的所有可用命名，请参阅GEI-10016B手册中的表3和表4。

DS200RTBAG2AFB 继电器端子板 提供了额外的十个继电器

【英文介绍】

The DS200RTBAG2AFB is a relay terminal board (RTBA) designed for the General Electric Mark V board series. The board can be used in applications with multiple GE branded drives and exciters. By mounting the board into the drive cabinet, an additional ten relays are provided to the user. Both LAN I/O terminals and remote users can drive the relays on this board.

Positions K20 to K29 are circuit board locations for all onboard relays. The DS200RTBAG2AFB includes two relays, DPDT and 4PDT. The DPDT type consists of seven relays on the card, including K20 to K26. These types have two C-type contacts, each rated at 10A. K27 to K29 is the second relay type, 4PDT. Instead of two, 4PDT relays include four form C contacts at a rate of 1A each. All of these points are protected by 130 VAC metal-oxide varistors (MOV). Each relay contains an internal 110 VDC coil to ensure their proper operation. If any of the relays stop working or break, the user can easily remove and replace all ten points.

The DS200RTBAG2AFB model has two connectors; One is a 16-pin connector and the other is a two-pin connector. 16-pin connectors are labeled RPL and 2-pin connectors are labeled OPTPL. OPTPL connectors have two designations X2 and CFX1. The X2 nomenclature sends the signal back to the CFX1 nomenclature for the NTB/3TB board with a 120vac load. This naming is the same as the RPLX2 naming. Refer to Tables 3 and 4 in the GEI-10016B manual for all available designations for these two connectors.
