DS200PCCAG1ABB 电源连接卡 驱动器控制电路之间的接口板

【产品详情】

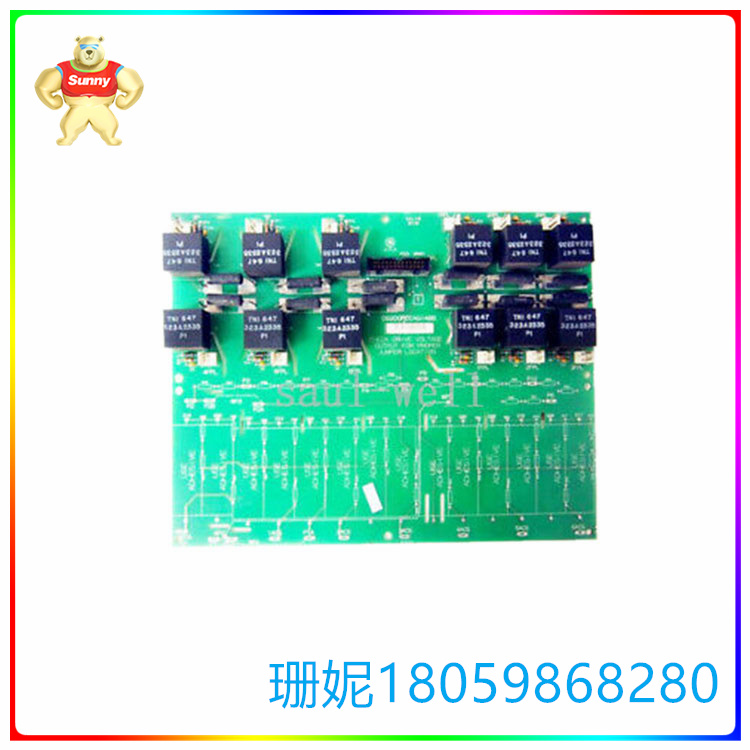

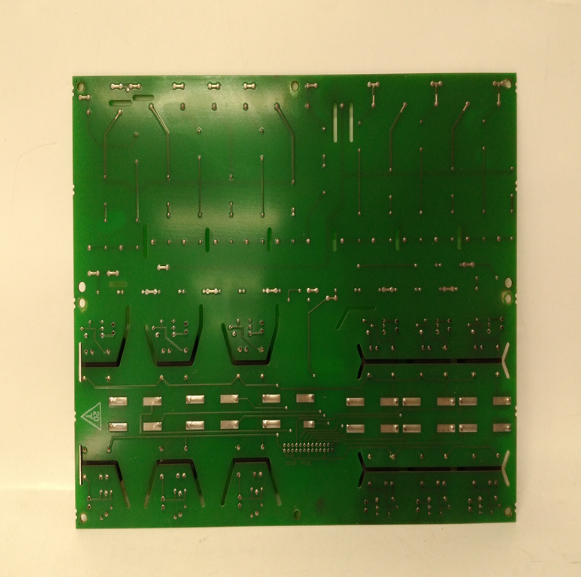

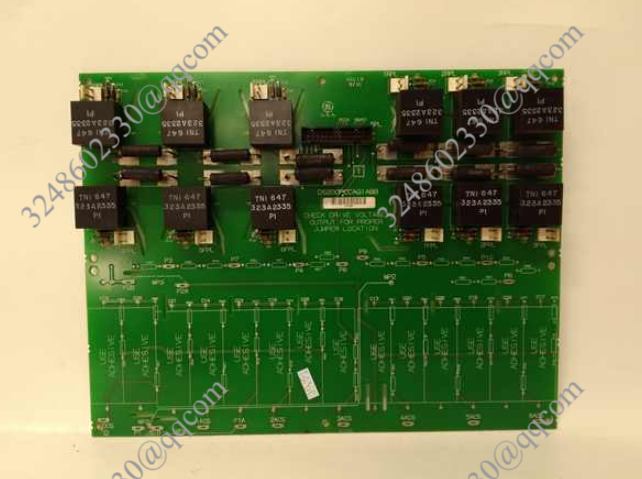

DS200PCCAG1ABB PCCA电源连接卡作为scr和驱动器控制电路之间的接口板。关于DS200PCCAG1ABB的信息可以在GE工业控制系统说明书GEI-100161A和GEI-100161B中找到。该板是基准DS200PCCAG1型号的“ABB”修订版，是G1组号。G1组号意味着这个PCCA板是再生的，并且具有240-630伏的电枢电压缩放。

DS200PCCAG1ABB有四个可配置的跳线，分别位于JP1, JP2, WP3和WP4。当设置为应用特定配置时，这些跳线通知驱动器缓冲电容器是否与电压反馈通道在同一点连接到电源桥上。跳线的具体用途如下:

JP1选择直流电枢电压范围

JP2与JP1一起用于选择直流电枢电压范围

设置WP3配置缓冲和电压反馈连接状态

WP4也用于指示缓冲器和电压反馈通道连接

DS200PCCAG1ABB是常用的电路板，作为PCCA电源连接卡G1组的一部分，通常在新的和翻新的条件下可用，并且在大多数情况下是可修复的。

DS200PCCAG1ABB 电源连接卡 驱动器控制电路之间的接口板

【英文介绍】

The DS200PCCAG1ABB PCCA power connection card acts as the interface board between the scr and the driver control circuit. Information about the DS200PCCAG1ABB can be found in the GE Industrial Control System specifications GEI-100161A and GEI-100161B. This board is an "ABB" revision of the benchmark DS200PCCAG1 model and is group G1 number. The G1 group number means that this PCCA board is regenerative and has an armature voltage zoom of 240-630 volts.

The DS200PCCAG1ABB has four configurable jumpers located at JP1, JP2, WP3 and WP4. When set to apply a specific configuration, these jumpers inform the driver whether the buffer capacitor is connected to the power bridge at the same point as the voltage feedback channel. The specific uses of jumpers are as follows:

JP1 Select DC armature voltage range

JP2 is used with JP1 to select the DC armature voltage range

Set WP3 configuration buffer and voltage feedback connection status

WP4 is also used to indicate buffer and voltage feedback channel connections

The DS200PCCAG1ABB is a commonly used circuit board that is available as part of the PCCA power connection card Group G1, usually in new and refurbished conditions, and in most cases is repairable.
