DS200LPPAG1AAA 具有七个跳线和两个接线端子 线路保护面板

【产品详情】

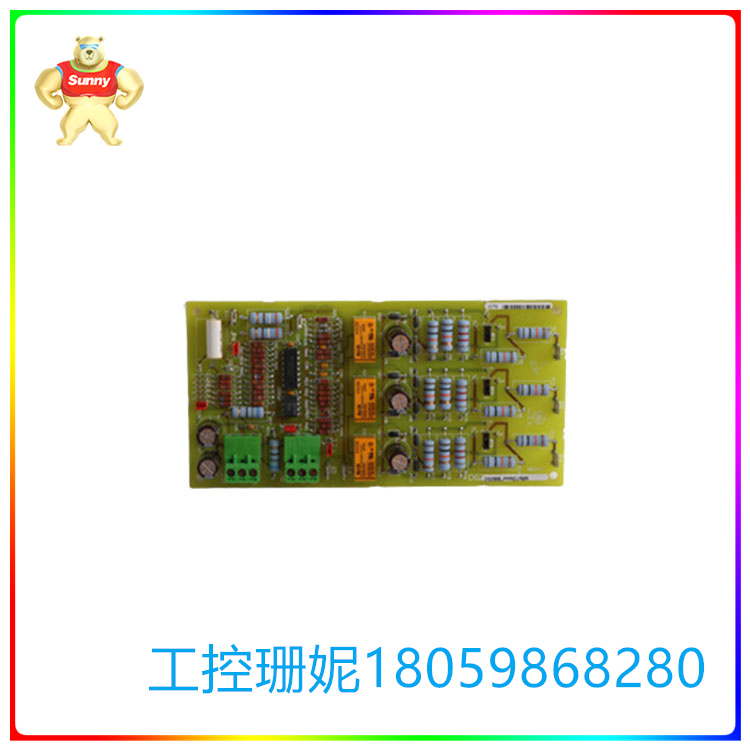

GE线路保护板，DS200LPPAG1AAA，具有七个跳线和两个接线端子，每个接线端子上有三个端子。这些跳伞者被确定为JP1到JP7。GE线路保护板DS200LPPAG1AAA也包含测试点。该板安装在驱动器的另一个组件的支架上。连接到电路板的信号线起源于另一个组件。

如果您怀疑DS200LPPAG1AAA板不能正常工作，您可以采取几个步骤来确定板是否有故障。第一步是访问驱动器中包含的诊断工具，以生成关于功能和组件运行状况的报告。诊断工具是控制面板上的一个菜单选择。诊断报告完成后，您可以在控制面板上查看它，也可以将文件下载到笔记本电脑上。可以保存该文件，并且可以比较修复操作前后的诊断结果。

该模块有一个菜单驱动的界面，一个选择是访问诊断。另一个菜单选项使您可以从通过串行电缆连接的笔记本电脑下载和上传文件。其他菜单选择是访问驱动器配置的部分并编辑参数。这些参数定义了驱动器在运行期间的行为。

DS200LPPAG1AAA上的键盘包含按钮，使操作员能够直接控制驱动器而无需改变参数。操作员可以停止并运行驱动器，并根据预定参数选择加速或减速驱动器。

DS200LPPAG1AAA 具有七个跳线和两个接线端子 线路保护面板

【英文介绍】

The GE line protection board, DS200LPPAG1AAA, has seven jumpers and two terminals, three terminals on each terminal. The skydivers were identified as JP1 to JP7. The GE line protection board DS200LPPAG1AAA also contains test points. The board is mounted on the bracket of another component of the drive. The signal line connected to the board originates from another component.

If you suspect that the DS200LPPAG1AAA board is not working properly, there are several steps you can take to determine if the board is faulty. The first step is to access the diagnostic tools included in the drive to generate reports on the health of the features and components. Diagnostic Tools is a menu selection on the control panel. Once the diagnostic report is complete, you can view it on the control panel or download the file to your laptop. The file can be saved and diagnostic results before and after the repair operation can be compared.

The module has a menu-driven interface and one option is to access diagnostics. Another menu option enables you to download and upload files from a laptop connected via a serial cable. Other menu options are to access the drive configuration section and edit the parameters. These parameters define the behavior of the drive during runtime.

The keyboard on the DS200LPPAG1AAA contains buttons that allow the operator to directly control the drive without changing parameters. The operator can stop and run the drive and choose to speed up or slow down the drive according to predetermined parameters.
