DS200LDCCH1AGA 驱动控制  局域网通信板

【产品详情】

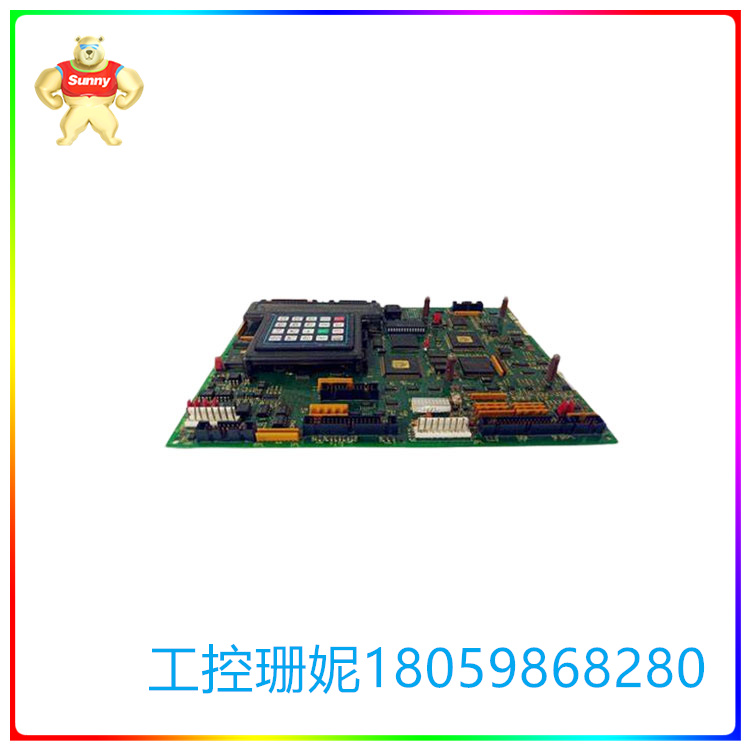

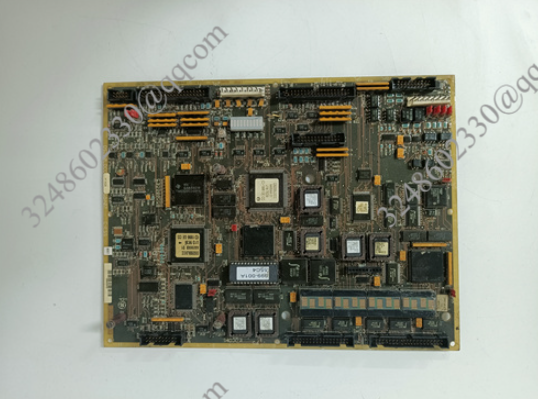

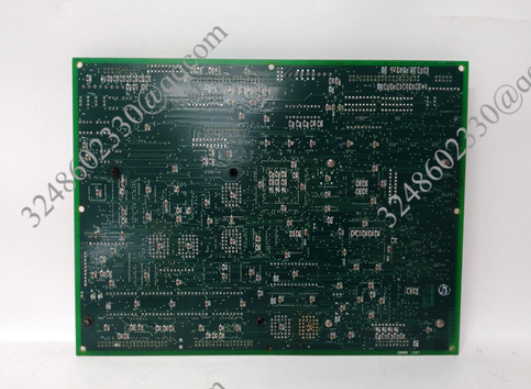

通用电气开发了DS200LDCCH1AGA卡作为驱动控制和局域网(LAN)通信板。该卡安装在Mark V系列替代驱动板中，与GE品牌DIRECTO-MATIC 2000驱动器和励磁器兼容。当安装在驱动器中，该板为驱动器提供驱动器阵列和I/O控制功能。

DS200LDCCH1AGA通信卡上有四个微处理器。局域网控制处理器(LCP)可用于接受五种不同的总线类型馈送到驱动器。驱动控制处理器(DCP)也可用于处理模拟和数字I/O转换。DCP还能够控制和转换外围I/O设备，如编码器和定时器。电机控制处理器(MCP)用于处理发送到驱动器的数字I/O。如果计算需要DCP无法提供的额外处理能力，则协同电机处理器(CMP)将提供完成这些功能所需的额外功率。该板由一个用于系统编程和诊断目的的字母数字键盘完成。

DS200LDCCH1AGA模型具有现场可调参数;其中之一是EEPROM U9，它将被编程为下载正确操作LDCC单元所需的驱动器配置值。EEPROM U9固件可以通过从另一个驱动控制板移动U9直接传输到LDCC单元。

DS200LDCCH1AGA 驱动控制  局域网通信板

【英文介绍】

Ge developed the DS200LDCCH1AGA card as a driver control and local area network (LAN) communication board. The card is installed in the Mark V Series replacement driver board and is compatible with GE brand DIRECTO-MATIC 2000 drives and exciters. When installed in a drive, the board provides the drive array and I/O control functions for the drive.

The DS200LDCCH1AGA communication card has four microprocessors. The local Area Network Control Processor (LCP) can be used to accept five different bus types of feeds to the drive. The Drive Control Processor (DCP) can also be used to handle analog and digital I/O conversions. DCP is also able to control and convert peripheral I/O devices such as encoders and timers. The motor control processor (MCP) is used to process the digital I/O sent to the drive. If the computation requires additional processing power that a DCP cannot provide, the co-motor processor (CMP) will provide the additional power needed to accomplish these functions. The board is completed by an alphanumeric keyboard for system programming and diagnostic purposes.

DS200LDCCH1AGA model has field adjustable parameters. One of these is the EEPROM U9, which will be programmed to download the drive configuration values needed to properly operate the LDCC unit. EEPROM U9 firmware can be transferred directly to the LDCC unit by moving the U9 from another drive control board.
