531X126SNDAEG1 通用电气的缓冲器卡 电路板

【产品详情】

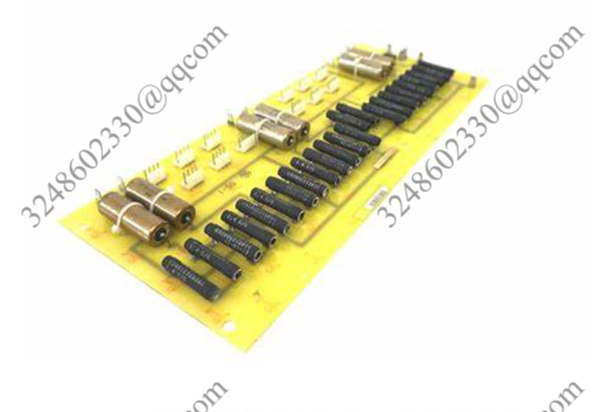

 531X126SNDAEG1是通用电气的缓冲器卡。零件号(531X126SNDAEG1)，板的类型(SNUBBER CARD)和制造商的标志(通用电气)都印在电路板的表面，以及+SV-1。531X126SNDAEG1有12套雄性端子，白色塑料底座和靠背。每个公端子由四个薄金属尖头组成。这些公端子允许531X126SNDAEG1连接到周围的电路板。531X126SNDAEG1有一个小的黑色方形晶体管。晶体管是一种半导电装置，用于开关或放大电力或电子信号。晶体管可以通过它们与电路板的三个连接点来识别。531X126SNDAEG1有14个金属卡，垂直分布在整个电路板上。531X126SNDAEG1有六个大型银电阻，电阻方程印在侧面。银电阻器是如此之大，它们被拉链绑在电路板上。531X126SNDAEG1有24个长长的黑色电阻器，每个电阻器的侧面都印有白色的电阻器方程。电阻器是一种无源双端电气元件，作为电路元件实现电阻。在电子电路中，电阻器有多种用途，如减小电流、调节信号电平、划分电压、偏置有源元件和终止传输线等。

531X126SNDAEG1 通用电气的缓冲器卡 电路板

【英文介绍】

 The 531X126SNDAEG1 is a General Electric buffer card. The part number (531X126SNDAEG1), the type of board (SNUBBER CARD) and the manufacturer's logo (GE) are all printed on the surface of the board, as well as +SV-1. The 531X126SNDAEG1 has 12 sets of male terminals, white plastic base and backrest. Each male terminal consists of four thin metal prongs. These male terminals allow 531X126SNDAEG1 to be connected to the surrounding circuit board. The 531X126SNDAEG1 has a small black square transistor. A transistor is a semi-conductive device used to switch on or amplify electrical or electronic signals. Transistors can be identified by their three connection points to the circuit board. The 531X126SNDAEG1 has 14 metal cards that are vertically distributed throughout the board. The 531X126SNDAEG1 has six large silver resistors with the resistance equation printed on the side. The silver resistors are so large that they are zipped to the circuit board. The 531X126SNDAEG1 has 24 long black resistors, each with a white resistor equation printed on the side. A resistor is a passive double-ended electrical component that acts as a circuit element to achieve resistance. In electronic circuits, resistors have many uses, such as reducing current, regulating signal levels, dividing voltage, biasing active components, and terminating transmission lines.

531X126SNDAEG1 通用电气的缓冲器卡 电路板
