IC660BSM120  I/O总线交换模块 连接到2条串行总线上

【产品详情】

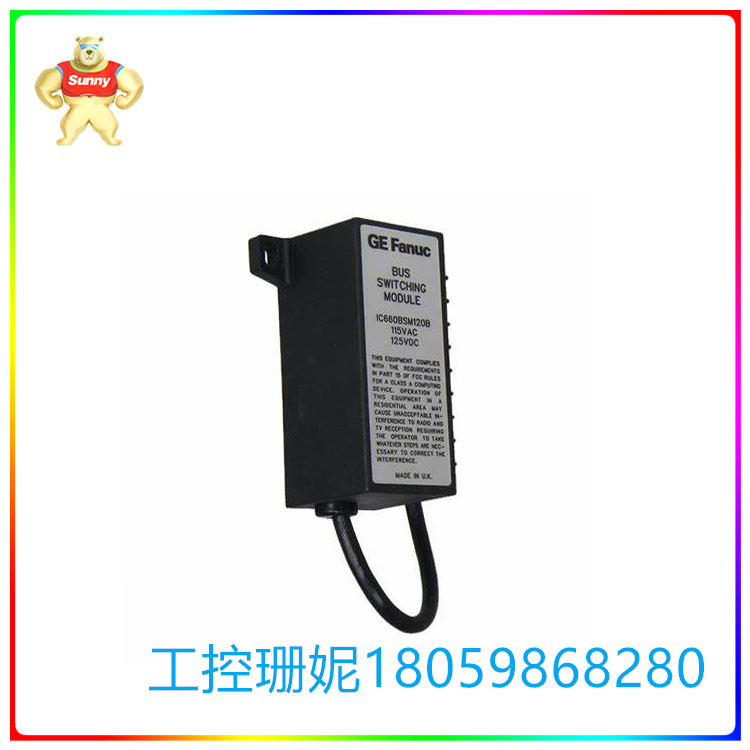

GE Fanuc IC660BSM120 Genius I/O总线交换模块是一款简单可靠的模块，可将Genius I/O块同时连接到2条串行总线上。与IC660BSM021交换模块不同，IC660BSM120交换模块是交流/直流供电的，适用于支持交流的I/O模块。IC660BSM120交换模块设计用于在同一双串行总线上连接多达8个I/O块，并且接线额外的IC660BSM120模块可以在同一双总线上将Genius I/O块连接增加到多达30个块。正确配置的双总线配置不仅可以将I/O块连接到串行总线，而且还可以在总线发生故障时存储通信路径。IC660BSM120交换模块的工作由集群连接中的B相离散块控制。在操作期间，该I/O块上的第一个电路可以配置为总线交换模块的专用输出。

GE Fanuc IC660BSM120交换模块可通过HHM (Genius掌上显示器)或CPU编程进行配置，也可用于母线间的切换。当选择母线B时，IC660BSM120交换模块的工作电压范围为交流90伏~ 130伏，直流95伏~ 150伏。当母线A处于活动状态时，其额定工作电压小于65伏交直流，115伏交流时最大电流输出为60毫安，120伏直流时最大电流输出为12毫安。IC660BSM120交换模块的额定可靠性可达500,000次操作(最小)，最大激活时间小于20毫秒。IC660BSM120交换模块的工作温度范围为0 ~ 60摄氏度，安装尺寸约为3.5 × 2.3 × 2.5英寸。

IC660BSM120  I/O总线交换模块 连接到2条串行总线上

【英文介绍】

The GE Fanuc IC660BSM120 Genius I/O Bus switch module is a simple and reliable module that connects Genius I/O blocks to two serial buses at the same time. Unlike the IC660BSM021 switch module, the IC660BSM120 switch module is powered by AC or DC and is applicable to the I/O modules that support AC. The IC660BSM120 switch module is designed to connect up to 8 I/O blocks on the same pair of serial buses, and wiring additional IC660BSM120 modules can increase Genius I/O block connections to up to 30 blocks on the same pair of buses. A properly configured dual-bus configuration not only connects the I/O blocks to the serial bus, but also stores the communication path in the event of a bus failure. The IC660BSM120 switch module is controlled by the B-phase discrete blocks in the cluster connection. During operation, the first circuit on this I/O block can be configured as a dedicated output for the bus switch module.

The GE Fanuc IC660BSM120 switch module can be configured by HHM (Genius Handheld Display) or CPU programming, and can also be used for switching between buses. When bus B is selected, the operating voltage of the IC660BSM120 switch module ranges from 90 V to 130 V for AC and 95 V to 150 V for DC. When busbar A is active, its rated operating voltage is less than 65 V AC DC, and the maximum current output is 60 mA at 115 V AC and 12 mA at 120 V DC. The rated reliability of the IC660BSM120 switch module is up to 500,000 operations (minimum) and the maximum activation time is less than 20 milliseconds. The operating temperature of the IC660BSM120 switch module ranges from 0 to 60 degrees Celsius. The dimensions of the IC660BSM120 switch module are 3.5 x 2.3 x 2.5 inches.
