IC660BRD024 直流源输出块 冗余输出组

【产品详情】

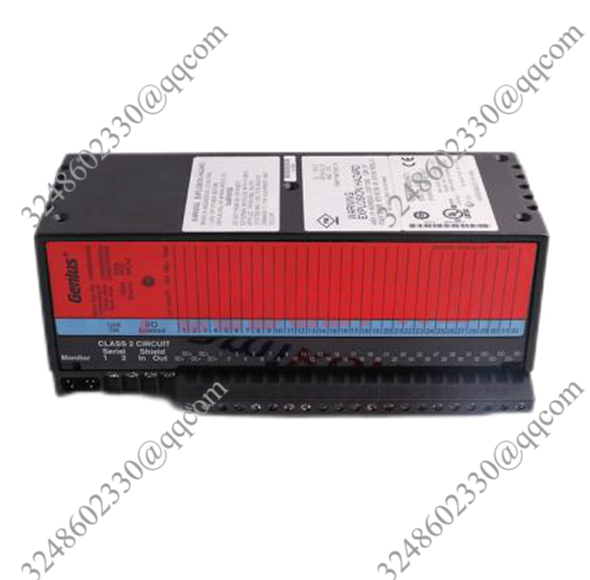

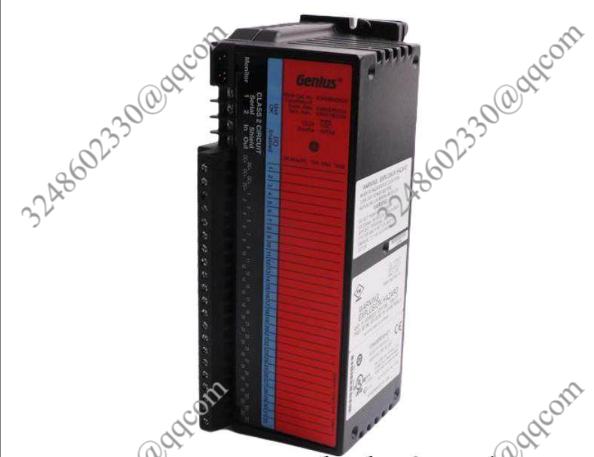

GE Fanuc IC660BRD024 Genius GMR源输出块是T-Output子系统的12/24伏直流源输出块。IC660BRD024源输出块属于GMR输出子系统的t块输出组。GMR的输出子系统控制和监控离散输出负载，它可能包括H-Block, T-Block, I-Block, 1 out of 1诊断和天才冗余输出组。IC660BRD024源输出块支持H-Output组和T-Output组配置。在H-Output组配置中，2个IC660BRD024源输出块并联接在负载一侧，另外2个下沉输出块并联接在负载另一侧。在T-Output组配置中，两个IC660BRD024电源输出模块并联连接在负载的一侧，负载的另一端接地。

GE Fanuc IC660BRD024电源输出模块是一款32点直流电源输出模块，工作电流负载范围为0.5 ~ 1.0安培，最大冲击电流额定值为10.0安培。T-Block输出组的总电流额定值为16.0安培，最大漏电流额定值为20微安。IC660BRD024源输出块在每个输出点上都带有内置的阻塞二极管和反馈电阻，用于故障检测，并用于防止由于I/O反驱动电流在H-Output或T-Output组中使用时可能出现的系统故障。IC660BRD024源输出模块安装在总线上(总线连接必须匹配GMR配置)，并配置手持监视器。

IC660BRD024 直流源输出块 冗余输出组

【英文介绍】

GE Fanuc IC660BRD024 Genius GMR Source output block is a 12/24 volt DC source output block for the T-Output subsystem. The IC660BRD024 source output block belongs to the t block output group of the GMR output subsystem. The output subsystem of GMR controls and monitors discrete output loads, which may include H-Block, T-Block, I-Block, 1 out of 1 diagnostics and genius redundant output groups. The IC660BRD024 source output block supports H-Output group and T-Output group configuration. In the H-Output group configuration, two IC660BRD024 source output blocks are connected to the load side and two sinking output blocks are connected to the load side. In the T-Output group configuration, two IC660BRD024 power output modules are connected in parallel to one side of the load, and the other end of the load is grounded.

The GE Fanuc IC660BRD024 power output module is a 32-point DC power output module with an operating current load range of 0.5 to 1.0 amps and a maximum impulse current rating of 10.0 amps. The T-Block output group has a total current rating of 16.0 amps and a maximum leakage current rating of 20 microamps. The IC660BRD024 source output block has built-in blocking diodes and feedback resistors at each output point for fault detection and for preventing system failures that may occur when I/O reverse drive current is used in H-Output or T-Output groups. The IC660BRD024 source output module is installed on the bus (the bus connection must match the GMR configuration) and configured with a handheld monitor.

IC660BRD024 直流源输出块 冗余输出组
