IC660BRD020 离散I/O源模块 现场输出设备提供电流

【产品详情】

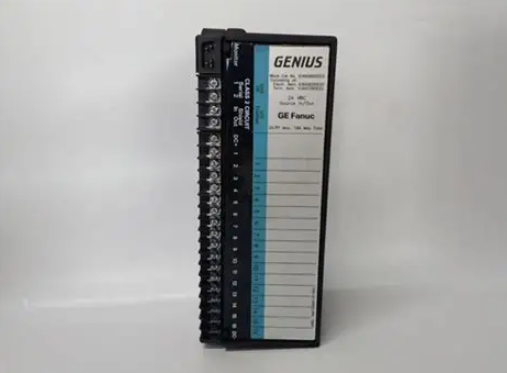

GE Fanuc IC660BRD020 I/O模块是一个24和48伏直流额定离散I/O源模块。在IC660BRD020 I/O块上有16个I/O电路，用于向现场输出设备提供电流。IC660BRD020 I/O模块设计用于与机电传感器和固态传感器一起使用。IC660BRD020 I/O模块的尺寸为8.83英寸× 3.56英寸× 4.42英寸。块的大约重量是1.8公斤。用于显示块运行状态的LED包括“Unit OK”状态LED和“I/O Enabled”状态LED。此外，还提供单个LED用于显示每个单独电路的状态。块对块隔离额定电压为1500伏。16路输出均导通，输出电流为2安培时，模块的散热为91.5瓦。

IC660BRD020 I/O模块有16个分立电路，每个电路都可以配置为输入、三态输入或输出。输出电路可以直接连接到输入电路，而不需要反转逻辑状态或使用其他元件。IC660BRD020 I/O模块的工作电压为18 ~ 56伏，适用于24伏和48伏直流，适用于24伏直流，适用于18 ~ 30伏直流。最大额定纹波为10%。IC660BRD020 I/O模块所需的典型直流功率为150毫安，最大功率为300毫安。额定电源断电时间为10毫秒。任何手持监视器(HHM)都可以与IC660BRD020 I/O块一起使用。需要一个目录号为IC66HHM501的HHM来配置IC660BRD020 I/O块以实现冗余或更改波特率配置。

IC660BRD020 离散I/O源模块 现场输出设备提供电流

【英文介绍】

The GE Fanuc IC660BRD020 I/O module is a 24 - and 48-volt DC rated discrete I/O source module. There are 16 I/O circuits on the IC660BRD020 I/O block that provide current to the field output device. The IC660BRD020 I/O module is designed for use with electromechanical sensors and solid-state sensors. The IC660BRD020 I/O module measures 8.83 inches x 3.56 inches x 4.42 inches. The approximate weight of the block is 1.8 kg. The leds used to display the running status of the block include the "Unit OK" status LED and the "I/O Enabled" status LED. In addition, a single LED is provided to display the status of each individual circuit. Block to block isolation is rated at 1500 volts. When the output current is 2 amps, the heat dissipation of the module is 91.5 watts.

The IC660BRD020 I/O module has 16 discrete circuits, each of which can be configured as input, tri-state input, or output. The output circuit can be connected directly to the input circuit without the need to reverse the logic state or use other components. The IC660BRD020 I/O module operates at 18 to 56 volts, for 24 volts and 48 volts DC, for 24 volts DC, and for 18 to 30 volts DC. The maximum ripple rating is 10%. The typical DC power required for the IC660BRD020 I/O module is 150 mA, with a maximum power of 300 mA. The rated power off time is 10 milliseconds. Any handheld monitor (HHM) can be used with the IC660BRD020 I/O block. An HHM with directory number IC66HHM501 is required to configure the IC660BRD020 I/O block for redundancy or to change the baud rate configuration.
