IC660BPM100 电源监控设备 具有Genius I/O功能

【产品详情】

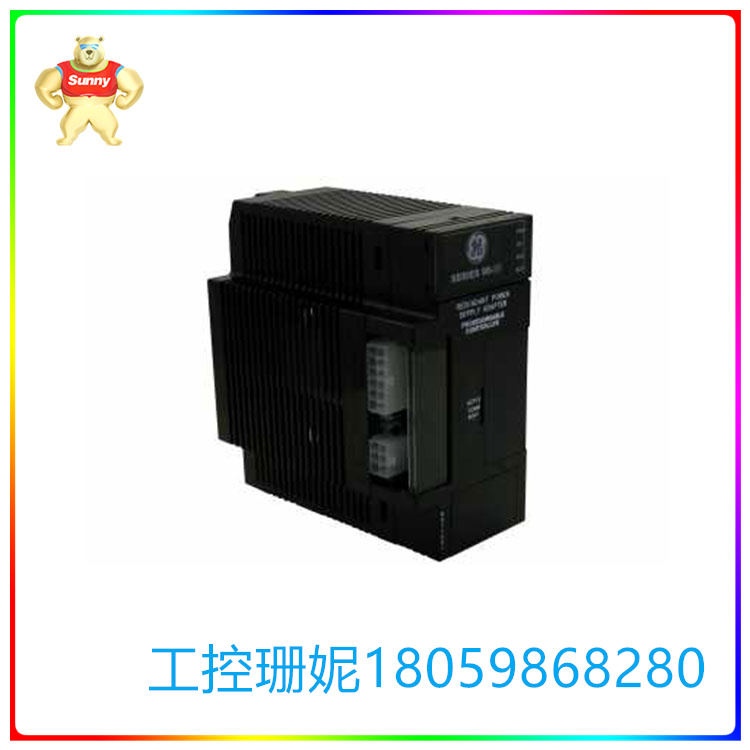

IC660BPM100是PowerTrac模块。该模块本质上是一个电源监控设备，具有Genius I/O功能，能够直接集成到系列90-3，系列90-70,PACSystem RX3i和其他支持天才总线协议的设备。该模块以前由GE发那科自动化公司生产，目前隶属于艾默生自动化公司。IC660BPM100用于电压和电流以及它们各自的参数。具体来说，IC660BPM100可用于确定有效值电压、电流、有功功率、无功功率、千瓦时和功率因数，以及相对相(wye和delta)和相对中性点(wye系统)的电压;每相和中性为电流;每相有功电流、功率和无功指示;有效系统功率因数(PF)。每个值和数据计算每两(2)秒更新一次。除了测量上述参数外，IC660BPM100还能够检测具有可配置阈值的过电流瞬态。它可以安装在机器或进程附近，因为它支持天才通信协议，其中IC660BPM100 PowerTrac捕获和处理的数据通过天才总线传输到主控制器。IC660BPM100将模拟测量转换为数字化波形，便于对参数进行简单分析。本设备接受三相电压输入，输入电压范围0-120VAC, 47- 63hz;输入电流为0-5安培，标称范围为47-63 Hz。它有内置状态led指示灯，显示单元OK和通信OK。IC660BPM100的工作温度为5.21 " w. X 11.00 " h. X 8.06 " d.或13.23厘米w. X 27.94厘米h. X 20.47厘米d.它的工作温度为0至+60摄氏度或+32华氏度至+140华氏度。

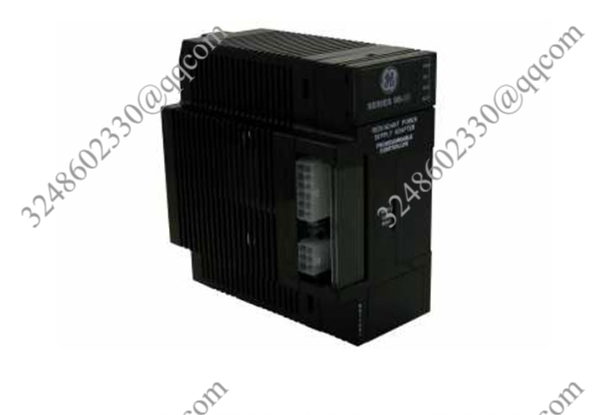

GE Fanuc Genius I-O IC660BPM100电源监视器模块监测电压和电流输入，并存储每种输入类型的波形值。根据这些存储的值，IC660BPM100块计算电流、电压、无功功率、有功功率、千瓦时和功率因数的均方根(RMS)值。IC660BPM100模块也测量线路频率。然后，IC660BPM100块将这些计算值发送到连接的计算机或PLC进行分析。IC660BPM100模块可与怀伊达配置的三相或单相系统一起使用。该模块接受多达3个线路电流互感器和一个中性电流互感器的电流输入，以及多达3个电位互感器的电压输入。IC660BPM100块是软件可配置的。该块具有坚固耐用的设计，可安装在电气过程和配电设备中。

IC660BPM100电源监控模块可以接受125伏直流或115至230伏交流额定输入。该块可以安装在距离其主机最远7500的地方。该块也可以用于独立的应用程序。电压输入过电压额定值峰值为300v，暂态电压额定值峰值为300v，单路负荷小于0.1 VA，电流输入耐受过流50安培，间隔10分钟，持续5秒。IC660BPM100块尺寸为5.21 x 11 x 8.06英寸。环境要求:工作温度范围32 ~ 140华氏度，存储温度范围-40 ~ 212华氏度，运行和存储相对湿度范围50 ~ 95%。IC660BPM100块的振动等级为1 G，频率为10至200赫兹。

IC660BPM100 电源监控设备 具有Genius I/O功能

【英文介绍】

IC660BPM100 is a PowerTrac module. The module is essentially a power monitoring device with Genius I/O capability that can be integrated directly into Series 90-3, Series 90-70,PACSystem RX3i and other devices that support the Genius Bus protocol. The module was previously manufactured by GE Fanuc Automation and is now part of Emerson Automation. The IC660BPM100 is used for voltage and current and their respective parameters. Specifically, the IC660BPM100 can be used to determine RMS voltages, currents, active power, reactive power, kilowatt-hours, and power factors, as well as voltages relative to phase (wye and delta) and relative neutral (wye system); Each phase and neutral is current; Active current, power and reactive power indication per phase; Effective system power factor (PF). Each value and data calculation is updated every two (2) seconds. In addition to measuring the above parameters, the IC660BPM100 is also capable of detecting overcurrent transients with configurable thresholds. It can be installed near a machine or process because it supports the genius communication protocol, in which data captured and processed by the IC660BPM100 PowerTrac is transmitted to the master controller via the Genius bus. The IC660BPM100 converts analog measurements into digital waveforms for simple analysis of parameters. The equipment accepts three-phase voltage input, input voltage range 0-120VAC, 47-63hz; The input current is 0-5 amps and the nominal range is 47-63 Hz. It has built-in status led indicators that show unit OK and communication OK. The IC660BPM100 operates at 5.21 "w.X 11.00" h.X 8.06 "d. Or 13.23 cm w.X 27.94 cm h.X 20.47 cm d. It operates at temperatures of 0 to +60 degrees Celsius or +32 degrees Fahrenheit to +140 degrees Fahrenheit.

The GE Fanuc Genius I-O IC660BPM100 Power monitor module monitors voltage and current inputs and stores waveform values for each input type. From these stored values, the IC660BPM100 block calculates root-mean-square (RMS) values for current, voltage, reactive power, active power, kilowatt-hours, and power factor. The IC660BPM100 module also measures line frequencies. The IC660BPM100 block then sends these calculated values to a connected computer or PLC for analysis. The IC660BPM100 module can be used with three-phase or single-phase systems configured by Wyeda. The module accepts current inputs from up to 3 line current transformers and one neutral current transformer, and voltage inputs from up to 3 potential transformers. The IC660BPM100 block is software configurable. The block has a rugged design and can be installed in electrical processes and distribution equipment.

The IC660BPM100 power monitoring module can accept inputs rated at 125 volts DC or 115 to 230 volts AC. The block can be installed at a distance of up to 7500 from its host. The block can also be used for stand-alone applications. The peak voltage input overvoltage rating is 300v, the peak transient voltage rating is 300v, the single load is less than 0.1VA, the current input can withstand overcurrent 50 amps, the interval is 10 minutes, the duration is 5 seconds. The IC660BPM100 blocks measure 5.21 x 11 x 8.06 inches. Environment requirements: The operating temperature ranges from 32 to 140 degrees Fahrenheit, the storage temperature ranges from -40 to 212 degrees Fahrenheit, and the operating and storage relative humidity ranges from 50 to 95%. The IC660BPM100 block has a vibration rating of 1 G and a frequency of 10 to 200 Hz.
