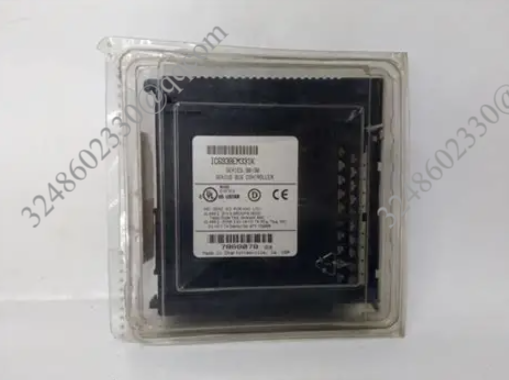

IC693BEM334 可编程逻辑控制器的固态模块

【产品详情】

GE Fanuc IC693BEM334天才总线控制器是GE Fanuc系列90-30或系列90-70可编程逻辑控制器(PLC)的固态模块，提供与天才I/O总线连接的网关。它用作Genius I/O主机的连接点和通信接口，以发送和接收离散，模拟或专用信号到系列90-30或90-70 plc，以控制工业机械或应用过程。多达31个GE Fanuc IC693BEM334天才总线控制器可以连接到单个系列90-30或90-70 PLC，每个天才总线控制器形成一个独立的天才总线网络或分支，可以与PLC通信，但不能与其他类似的网络或分支通信。

GE Fanuc IC693BEM334天才总线控制器支持多种类型的现场设备，包括115伏交流I/O块、直流I/O块、继电器输出块、RTD输入块和高速计数器块。GE Fanuc IC693BEM334天才总线控制器的进线连接到固定在模块正面的可拆卸端子带。模块的用户配置是通过手持式监视器或HHM完成的，它为机器语言提供人机界面。根据Genius网络的长度，可能需要75、100、120或150欧姆的终端电阻。安装GE Fanuc IC693BEM334天才总线控制器的一个重要考虑因素是将其放置在温度控制和湿度控制的环境中，以保证系统的最佳运行。

IC693BEM334 可编程逻辑控制器的固态模块

【英文介绍】

The GE Fanuc IC693BEM334 Genius Bus Controller is a solid state module of the GE Fanuc Series 90-30 or Series 90-70 programmable logic controllers (PLCS), providing a gateway to connect to the Genius I/O bus. It serves as a connection point and communication interface for Genius I/O hosts to send and receive discrete, analog, or dedicated signals to series 90-30 or 90-70 PLCS to control industrial machinery or application processes. Up to 31 GE Fanuc IC693BEM334 Genius Bus controllers can be connected to a single series of 90-30 or 90-70 PLCS, with each Genius Bus controller forming a separate genius bus network or branch that can communicate with the PLC, but not with other similar networks or branches.

The GE Fanuc IC693BEM334 Genius Bus controller supports multiple types of field devices, including 115 volt AC I/O blocks, DC I/O blocks, relay output blocks, RTD input blocks, and high-speed counter blocks. The GE Fanuc IC693BEM334 Genius Bus controller's incoming wires are connected to a detachable terminal band secured to the front of the module. The user configuration of the module is done via a handheld monitor or HHM, which provides a human-machine interface for the machine language. Depending on the length of the Genius network, terminal resistors of 75, 100, 120, or 150 ohms may be required. An important consideration in installing the GE Fanuc IC693BEM334 Genius bus controller is to place it in a temperature controlled and humidity controlled environment to guarantee optimal system operation.

IC693BEM334 可编程逻辑控制器的固态模块
