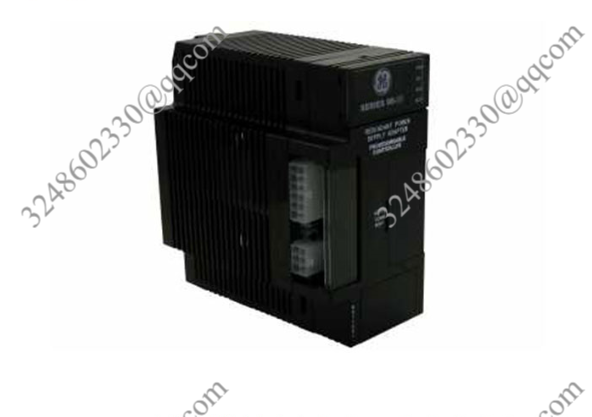

IC693BEM331 总线控制器模块 增强型天才通信模块

【产品详情】

IC693BEM331是GE Sires 90-30可编程逻辑控制器(PLC)产品系列的一款总线控制器模块。该模块由GE发那科自动化制造，用于将系列90-30 PLC连接到专有的Genius I/O总线。该总线控制器模块能够与Genius块通信，如离散，模拟和特殊用途的现场设备。它还支持通过远程I/O扫描仪模块连接的90-70系列I/O机架与远程I/O滴组成的通信，通过总线接口单元的现场控制I/O站，其中支持多达8个额外的现场控制模块，Genius手持式监视器和各种主机。

系列90-30 PLC系统可安装多达八(8)个天才总线控制器或增强型天才通信模块。为实现此配置，90-30系列PLC所需固件为firmware 5.0或更高版本。

IC693BEM331配备了安装在模块前面板上的各种状态led。这些LED包括OK和COM LED。OK LED正常工作常亮。该LED在上电诊断完成后保持亮。COM指示灯常亮，表示总线控制模块处于主动通信状态;指示灯闪烁，表示总线连接间歇或错误。

与IC693BEM331总线控制器兼容的系列90-30 PLC有IC693CPU311K, 321K, 331L或更高版本以及任何版本的IC693CPU313, 323, 340, 341, 350, 351, 352, 360, 363和364。所需的固件版本为5.0或更高版本。

GE Fanuc IC693BEM331总线控制器能够处理来自总线上现场设备的最多128字节的输入和输出数据。GE Fanuc IC693BEM331总线控制器的配置是通过另一个专有的GE Fanuc手持监视器完成的。可以向使用GE Fanuc IC693BEM331总线控制器作为通信接口的系列90-30 PLC发送和接收数据的一些I/O设备类型包括离散I/O设备，如电磁阀，电机启动器和限位开关或模拟I/O设备，如压力变送器和温度传感器。制造商建议将GE Fanuc IC693BEM331总线控制器安装在保护框内，以避免直接接触水、过度潮湿和极端高温和极端低温。任何需要对电路进行维护的工作都应该由有资格的人员进行，因为设备的错误操作或任何接线的错误连接都可能导致应用程序故障、财产损失或严重伤害。

IC693BEM331 总线控制器模块 增强型天才通信模块

【英文介绍】

The IC693BEM331 is a bus controller module in the GE Sires 90-30 Programmable Logic Controller (PLC) product family. Manufactured by GE Fanuc Automation, the module is used to connect the Series 90-30 PLCS to the proprietary Genius I/O bus. The bus controller module is capable of communicating with Genius blocks such as discrete, analog and special purpose field devices. It also supports communication consisting of 90-70 series I/O racks connected via remote I/O scanner modules with remote I/O drops, field control I/O stations via the bus interface unit, which supports up to eight additional field control modules, Genius handheld monitors and various hosts.

The Series 90-30 PLC system can be installed with up to eight (8) Genius bus controllers or enhanced Genius communication modules. To achieve this configuration, the 90-30 series PLC requires firmware 5.0 or higher.

The IC693BEM331 is equipped with leds in various states mounted on the front panel of the module. These leds include OK and COM leds. OK LED working normally Steady on. The LED remains bright after the power-on diagnosis is complete. If the COM indicator is steady on, it indicates that the bus control module is in the active communication state. If the indicator is blinking, the bus connection is intermittent or incorrect.

Series 90-30 PLCS compatible with IC693BEM331 bus controllers are available in IC693CPU311K, 321K, 331L or later and any version of IC693CPU313, 323, 340, 341, 350, 351, 352, 360, 363 and 364. The required firmware version is 5.0 or higher.

The GE Fanuc IC693BEM331 bus controller is capable of processing up to 128 bytes of input and output data from field devices on the bus. The configuration of the GE Fanuc IC693BEM331 bus controller is done with another proprietary GE Fanuc handheld monitor. Some of the I/O device types that can send and receive data to series 90-30 PLCS that use the GE Fanuc IC693BEM331 bus controller as the communication interface include discrete I/O devices such as solenoid valves, motor starters and limit switches or analog I/O devices such as pressure transmitters and temperature sensors. The manufacturer recommends that the GE Fanuc IC693BEM331 bus controller be installed in a protective frame to avoid direct contact with water, excessive moisture, and extreme heat and cold. Any work that requires maintenance of the circuit should be performed by a qualified person, as incorrect operation of the device or incorrect connection of any wiring can result in application failure, property damage or serious injury.
