IC693BEM330 远程I/O扫描模块 可编程逻辑控制器

【产品详情】

IC693BEM330是一个远程I/O扫描模块，支持工厂仪表协议(FIP)。该模块属于90-30系列可编程逻辑控制器(PLC)系列，以前由GE发那科公司生产，现在属于艾默生自动化公司。它主要用于实现分布式I/O架构，使用户能够在远离主机控制器的地方与I/O模块进行通信。支持FIP I/O协议，支持1mhz的数据传输速率。它带有两(2)个FIP通道，由9针d壳母连接器提供。它还有一个SYNCHRO连接器，用于FIP同步电缆的终止。它需要使用目录编号#39-01-4031的配套Molex连接器。该模块配有LED状态指示灯，如CD1和CD2，用于描述每个通道上载波检测的状态。TEN1和TEN2是传输led，表示通过通信端口进行主动数据交换。IC693BEM330的兼容性不仅限于90-30系列plc，它还支持90-70系列平台，通过FIP总线接口单元(BIU)的现场控制站，远程I/O下降，以及通用设备，如支持FIP通信协议的通用和第三方设备。IC693BEM330可用于控制FIP I/O套，扫描和维护离散I/O的时序，将I/O数据映射到FIP应用变量，检测系统故障并生成报告，在断电后维护网络配置，提供闪烁和脉冲输出，输入滤波和颤振检测。该模块使用兼容的DOS或基于windows的编程软件或通过手持编程器进行配置。

GE Fanuc IC693BEM330远程I/O扫描模块来自GE系列90-30 PLC系列系统。该模块提供了多种GE发那科智能平台模块的连接方式。该扫描模块只能插入任何系列90-30 PLC的插槽1，其功能是发送和接收连接到工厂仪表协议(FIP)通信网络的其他模块的数据。GE Fanuc IC693BEM330远程I/O扫描模块最多可连接19个I/O模块，使用2个底板，每个底板有10个插槽，可以通过最长50英尺(15.2米)的延长电缆相互连接。

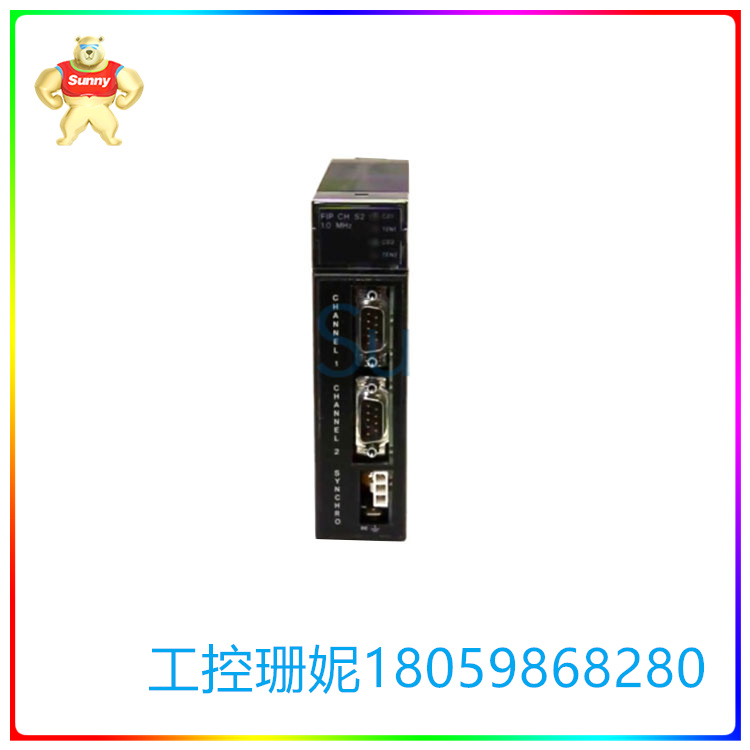

GE Fanuc IC693BEM330远程I/O扫描仪模块前面有两个9针公d型连接器，其中也可以找到4个状态led，标记为CD1, TEN1, CD2和TEN2。连接到扫描仪的所有模块都使用FIP网络发送和接收数据，并与系统的中央处理单元通信，一般是GE Fanuc系列90-30 PLC或可编程逻辑控制器。GE Fanuc IC693BEM330远程I/O扫描模块可通过GE Fanuc提供的专有手持配置工具(单独销售)进行用户配置。系统的任何维护、修理或故障排除应由合格的电气技术人员根据制造商手册提供的说明进行。环境保护应由最终用户提供，因为极端温度可能导致不稳定的行为或模块故障

 IC693BEM330 远程I/O扫描模块 可编程逻辑控制器

【英文介绍】

The IC693BEM330 is a remote I/O scanning module that supports Factory Instrumentation Protocol (FIP). The module belongs to the 90-30 series Programmable Logic controller (PLC) family, formerly manufactured by GE Fanuc and now owned by Emerson Automation. It is primarily used to implement a distributed I/O architecture, enabling users to communicate with I/O modules away from the host controller. Supports FIP I/O protocol and 1mhz data transmission rate. It comes with two (2) FIP channels, provided by a 9-pin D-shell female connector. It also has a SYNCHRO connector for termination of FIP synchronization cables. It requires a companion Molex connector with catalog number #39-01-4031. The module is equipped with LED status indicators, such as CD1 and CD2, which describe the status of carrier detection on each channel. TEN1 and TEN2 are transmission leds, indicating active data exchange through communication ports. The compatibility of the IC693BEM330 is not limited to 90-30 series PLCS, it also supports 90-70 series platforms, field control stations via FIP bus interface units (BIUs), remote I/O drop-off, and general-purpose devices such as general-purpose and third-party devices that support the FIP communication protocol. The IC693BEM330 can be used to control FIP I/O sets, scan and maintain the timing of discrete I/O, map I/O data to FIP application variables, detect system failures and generate reports, maintain network configurations after power outages, provide flicker and pulse outputs, input filtering, and flutter detection. The module is configured using compatible DOS or Windows-based programming software or via a handheld programmer.

The GE Fanuc IC693BEM330 remote I/O scanning module comes from the GE series 90-30 PLC series systems. The module provides a variety of GE Fanuc intelligent platform module connectivity. The scan module can only be plugged into slot 1 of any series 90-30 PLC and its function is to send and receive data from other modules connected to the Factory Instrumentation Protocol (FIP) communication network. The GE Fanuc IC693BEM330 Remote I/O scanning module can connect up to 19 I/O modules using 2 baseboards with 10 slots each that can be connected to each other via extended cables up to 50 feet (15.2 meters) long.

The GE Fanuc IC693BEM330 remote I/O scanner module has two 9-pin male D-type connectors on the front, where four status leds can also be found, labeled CD1, TEN1, CD2 and TEN2. All modules connected to the scanner use the FIP network to send and receive data and communicate with the system's central processing unit, generally a GE Fanuc series 90-30 PLC or programmable logic controller. The GE Fanuc IC693BEM330 Remote I/O scanning module can be user configured with a proprietary handheld configuration tool provided by GE Fanuc (sold separately). Any maintenance, repair or troubleshooting of the system shall be carried out by a qualified electrical technician according to the instructions provided in the manufacturer's manual. Environmental protection should be provided by the end user, as extreme temperatures can lead to erratic behavior or module failure
