IC693APU300 高速计数器模块 单槽位计数器模块

【产品详情】

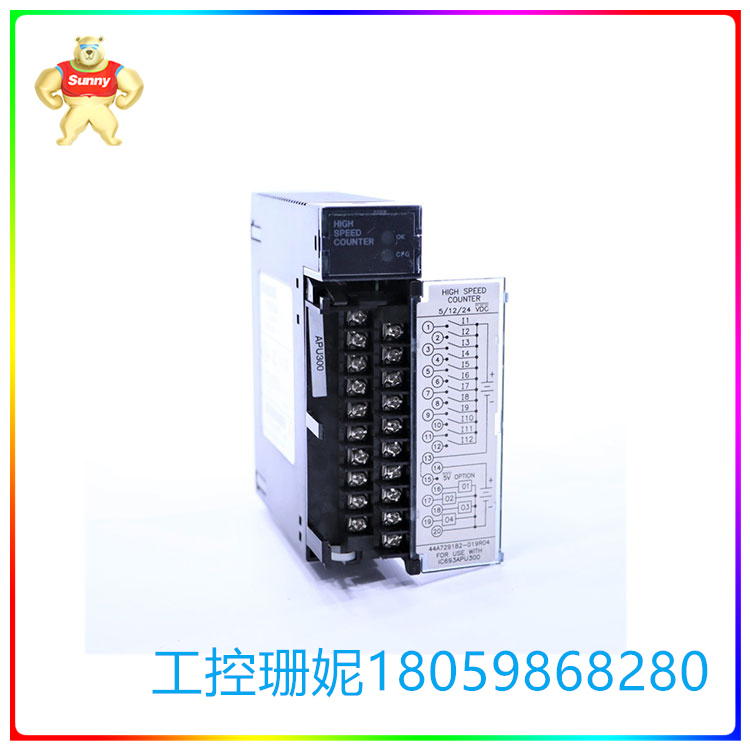

IC693APU300是一款高速计数器(HSC)模块，属于90-30系列PLC平台，该平台以前由GE发那科自动化生产，但最近被艾默生自动化收购。这个HSC模块是专门设计用于各种过程，但不限于涡轮流量计，仪表证明，速度测量，物料处理，运动控制和过程控制。对于计量应用，这个HSC模块可以用来生成供应或接收的总材料，可以作为计费和付款的参考，也可以简单地用于监控消耗和操作效率。对于运动控制，该模块可用于与编码器配对，接受高速低电平信号，这些信号表示负载行进的位置或运动量，可以作为控制的参考。在物料搬运应用中，该模块可用于产品的快速计数，以实现对物料和产品的准确分类。通过过程控制，该模块可用于测量高速过程变量，如磁性速度拾取器。IC693APU300具有12(12)个正逻辑输入，在5VDC或10- 30vdc信号电压下工作。它还具有四(4)个正逻辑输出，在10-30 VDC下产生500 mA或在4.75至6 VDC额定输出电压下产生20 mA。该高速计数器模块的最大计数率为200 kHz，并接受高达8 kHz的信号切换频率。该模块被归类为可选模块，因此它可以安装到系列90-30底板的任何可用I/O插槽上。

GE IC693APU300高速计数器模块是GE发那科公司的单槽位计数器模块。它适用于涡轮流量计，仪表证明，速度测量，物料处理，运动控制和过程控制等应用。该计数器模块的主要优点是它能够处理额定频率高达80千赫兹的快速信号脉冲。这种高速计数器模块可以感知输入和输出，以及计数输入和输出响应，而无需与CPU通信。IC693APU300高速计数器模块既可以向上计数，也可以向下计数，还可以计数两个变化值之间的差值。为了显示工作状态和配置参数的状态，模块的顶部有2个绿色led。

IC693APU300高速计数器模块可配置为4个相同的独立简单计数器、1个复杂计数器和2个相同的独立复杂计数器。这种高速计数器模块的一些功能包括每个计数器的基于时间的寄存器计数，用于现场接线的可移动终端板和内部模块诊断。模块的电源来自PLC背板的5伏直流额定母线。IC693APU300高速计数器模块可安装在任意系列90-30底板上。请勿将本模块安装在只能使用工具才能进入的机箱中。除非PLC处于正常关机状态，否则不能拆卸或更换该模块。它可以通过使用Logicmaster 90-30/20，手持编程器，逻辑开发人员plc或VersaPro软件进行配置。该模块可用于脉冲输入速率超过PLC输入能力的工业应用，如仪表验证，物料处理，速度测量，运动控制和涡轮流量计应用。

IC693APU300 高速计数器模块 单槽位计数器模块

【英文介绍】

The IC693APU300 is a high-speed counter (HSC) module that belongs to the 90-30 series PLC platform, which was previously produced by GE Fanuc Automation but was recently acquired by Emerson Automation. This HSC module is specifically designed for a variety of processes, but is not limited to turbine flow meters, instrument proof, speed measurement, material handling, motion control and process control. For metrology applications, this HSC module can be used to generate the total material supplied or received, which can be used as a reference for billing and payment, or simply to monitor consumption and operational efficiency. For motion control, the module can be used to pair with an encoder to receive high-speed low-level signals that indicate the position or amount of movement the load is traveling and can be used as a reference for control. In material handling applications, the module can be used for rapid counting of products to achieve accurate classification of materials and products. With process control, the module can be used to measure high-speed process variables such as magnetic speed pickers. The IC693APU300 has 12(12) positive logic inputs and operates at 5VDC or 10-30vdc signal voltages. It also has four (4) positive logic outputs that produce 500 mA at 10-30 VDC or 20 mA at a rated output voltage of 4.75 to 6 VDC. The high-speed counter module has a maximum count rate of 200 kHz and accepts signal switching frequencies up to 8 kHz. The module is classified as optional, so it can be installed into any available I/O slot on the Series 90-30 baseplate.

The GE IC693APU300 high speed counter module is a single slot counter module from GE Fanuc. It is suitable for applications such as turbine flow meters, instrument proof, speed measurement, material handling, motion control and process control. The main advantage of this counter module is its ability to handle fast signal pulses with rated frequencies up to 80 KHZ. This high-speed counter module can sense input and output, as well as count input and output responses, without having to communicate with the CPU. The IC693APU300 high-speed counter module can count both up and down, and can also count the difference between two changing values. In order to display the status of working status and configuration parameters, there are 2 green leds on the top of the module.

The IC693APU300 high speed counter module can be configured with 4 identical independent simple counters, 1 complex counter and 2 identical independent complex counters. Some of the features of this high-speed counter module include time-based register counts for each counter, removable terminal boards for field wiring, and internal module diagnostics. The power supply for the module comes from the 5-volt DC rated bus of the PLC backplane. The IC693APU300 high speed counter module can be installed on any series 90-30 baseplate. Do not install the module in a chassis that is accessible only by tools. The module cannot be removed or replaced unless the PLC is in a normal shutdown state. It can be configured by using Logicmaster 90-30/20, Handheld Programmer, Logic Developer plc or VersaPro software. The module can be used in industrial applications where the pulse input rate exceeds the PLC input capability, such as instrument verification, material handling, speed measurement, motion control and turbine flowmeter applications.
