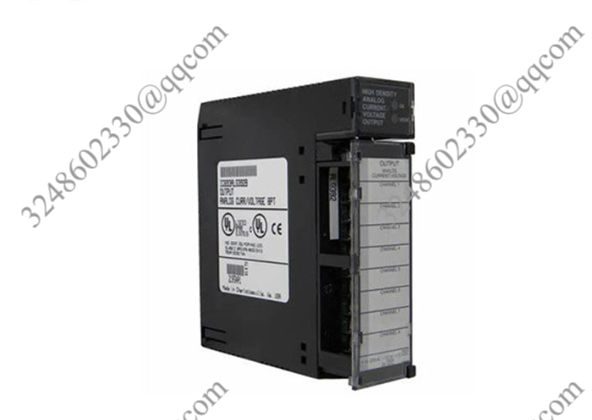

IC693ALG391 单槽模块 模拟输出模块

【产品详情】

IC694ALG391是以前由GE发那科自动化制造的模拟输出模块，现已被艾默生自动化收购。该模块是一个单槽模块，具有两(2)个模拟输出通道，可产生电压和电流输出信号，如0- 20ma / 4- 20ma和1-5VDC / 0- 5vdc电信号。该模块具有特定的分辨率，特别是4µA (1 LSB = 4µA)在4-20 mA;0-20 mA时5µA (1 LSB = 5µA);1 ~ 5vdc电压为1mv (1lsb = 1mv)， 0 ~ 5vdc电压为1.25 mV (1lsb = 1.25 mV)。该模块特别用于驱动调制控制设备，如控制阀、百叶、阻尼器、变频驱动器(VFD)和类似设备。它也可用于重传信号和接口面板仪表，数据记录仪，和其他接收元件。IC694ALG391可安装在5槽位和10槽位底板的任意I/O挂载位置。它有一个单独的模块OK状态指示器，描述模块的操作状态。当配置为4至20 mA时，该模块的绝对精度为8 μ A，工作温度为25oC (77oF);10µA在25℃(77oF)， 0至20 mA配置;50mv在25oC (77oF)为1至5 V操作和50mv在25oC (77oF)在0至5 V操作。IC694ALG391 +5V电源的内部功耗为30ma， + 24vdc隔离背板电源或用户自备电源的内部功耗为215ma。

IC693ALG391是系列90-30 PLC，模拟输出模块提供0-20 mA / 4-20 mA电流输出信号和1-5VDC / 0-5 VDC电压输出信号。该模块以前由GE发那科自动化公司生产，现在隶属于艾默生自动化公司。该模块具有2个模拟输出通道，在4- 20ma时分辨率为4µA (1 LSB = 4µA);0 ~ 20 mA时5µA (1 LSB = 5µA);1 ~ 5v时1mv (1lsb = 1mv);1.25 mV (1 LSB = 1.25 mV)在0至5V时，背板电流从+5V电源引出30 mA，从隔离的+24 VDC背板电源或用户电源引出215 mA。

 IC693ALG391 单槽模块 模拟输出模块

【英文介绍】

The IC694ALG391 is an analog output module formerly manufactured by GE Fanuc Automation and now acquired by Emerson Automation. The module is a single slot module with two (2) analog output channels that produce voltage and current output signals such as 0-20ma / 4-20ma and 1-5VDC / 0-5vdc electrical signals. The module has a specific resolution, in particular 4µA (1 LSB = 4µA) at 4-20 mA; 5µA at 0-20 mA (1 LSB = 5µA); The voltage from 1 to 5vdc is 1 mV (1lsb = 1 mV), and the voltage from 0 to 5vdc is 1.25 mV (1lsb = 1.25 mV). The module is especially used to drive modulation control devices such as control valves, louvers, dampers, variable frequency drivers (VFDS) and similar devices. It can also be used to retransmit signals and interface panel meters, data loggers, and other receiving elements. The IC694ALG391 can be installed in any I/O mount position on the baseboard in slots 5 and 10. It has a separate module OK status indicator that describes the operating status of the module. When configured at 4 to 20 mA, the module has an absolute accuracy of 8 μA and an operating temperature of 25oC (77oF). 10µA at 25 ° C (77oF), 0 to 20 mA configuration; 50mv at 25oC (77oF) for 1 to 5 V operation and 50mv at 25oC (77oF) for 0 to 5 V operation. The internal power consumption of the IC694ALG391 +5V power supply is 30ma, and the internal power consumption of the + 24vdc isolated backplane power supply or user owned power supply is 215ma.

The IC693ALG391 is a series 90-30 PLC with analog output modules that provide 0-20 mA / 4-20 mA current output signals and 1-5VDC / 0-5 VDC voltage output signals. The module was previously manufactured by GE Fanuc Automation and is now part of Emerson Automation. The module has two analog output channels with a resolution of 4µA (1 LSB = 4µA) at 4-20 mA; 5µA at 0 ~ 20 mA (1 LSB = 5µA); 1 ~ 5v 1mv (1lsb = 1mv); 1.25 mV (1 LSB = 1.25 mV) At 0 to 5V, the backplane current draws 30 mA from the +5V power supply and 215 mA from the isolated +24 VDC backplane power supply or user power supply.
