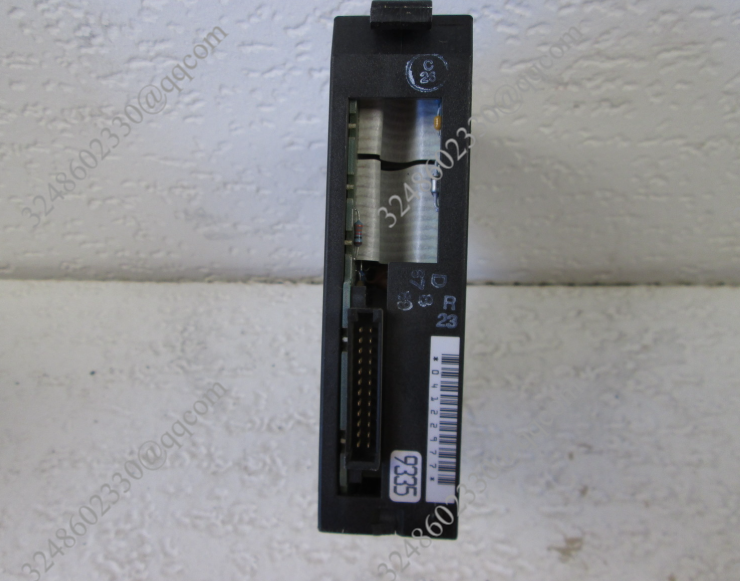

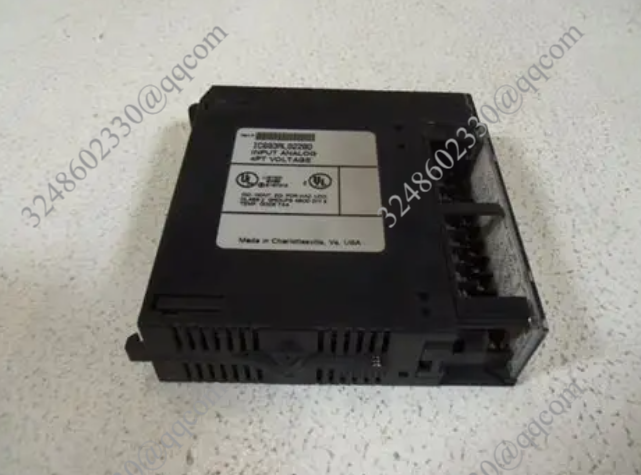

IC693ALG220 模拟输入模块 是90-30系列的一部分

【产品详情】

IC693ALG220是90-30系列模块，以前由GE发那科公司生产，目前隶属于艾默生自动化公司。该模块主要作为模拟输入模块，兼容输入信号范围为- 10vdc ~ + 10vdc。该模块可选择兼容0-20 mA信号，可通过在模块的用户终端连接器上安装250欧姆来启用。

IC693ALG220安装了模数转换器(ADC)，电压输入转换分辨率为12位;10位为电流输入，可以使用精密电阻增加到11位。模块的每个通道具有4 ms的单独更新速率，而模块由PLC电源提供的24VDC供电。它的背板电流消耗为27 mA，来自背板上的+5伏总线，来自隔离的+24伏背板总线的电流消耗为98 mA。它安装在5或10槽位系列90-30底板的任何可用I/O槽位上，并占用机架的单个槽位。

IC693ALG220在工作温度下的典型绝对精度为+/-10 mV/40µA，而最大值为+/-30 mV/160µA。它的线性度为1最小有效位(LSB)，输入滤波器响应为17 Hz，模块隔离在场侧和逻辑侧之间为1500伏，跨通道抑制> 80 db，电压模式下输入阻抗> 9兆欧，电流模式下输入阻抗> 250欧姆。

IC693ALG220模块是GE发那科公司的模拟输入模块，是90-30系列的一部分。该输入模块是可编程逻辑控制器(PLC)的一个组件，带有4个输入通道。每个通道都可以根据用户的应用要求轻松地将模拟信号转换为数字信号。此外，GE Fanuc IC693ALG220 CAV输入模块允许用户转换输入信号范围为-10到+10伏。每个通道的转换速度约为1毫秒。因此，IC693ALG220输入模块一次为任何通道提供约4毫秒的更新速率。转换后的信号具有12位二进制的分辨率。

IC693ALG220 模拟输入模块 是90-30系列的一部分

【英文介绍】

The IC693ALG220 is a 90-30 series module formerly manufactured by GE Fanuc and now owned by Emerson Automation. The module is mainly used as an analog input module, compatible with the input signal range of -10vdc to + 10vdc. The module is optionally compatible with 0-20 mA signals, which can be enabled by installing 250 ohms on the module's user terminal connector.

The IC693ALG220 is equipped with an analog-to-digital converter (ADC) with a voltage input conversion resolution of 12 bits. The 10-bit is a current input that can be increased to 11 bits using a precision resistor. Each channel of the module has a separate update rate of 4 ms, while the module is powered by 24VDC provided by a PLC power supply. It has a backplane current consumption of 27 mA from the +5 volt bus on the backplane and 98 mA from the isolated +24 volt backplane bus. It is installed in any available I/O slot of the 5 - or 10-slot series 90-30 baseplate and occupies a single slot of the rack.

The typical absolute accuracy of the IC693ALG220 at operating temperature is +/-10 mV/40µA, while the maximum is +/-30 mV/160µA. It has a linearity of 1 minimum significant bit (LSB), an input filter response of 17 Hz, module isolation of 1500 volts between the field side and the logical side, cross-channel rejection > 80 db, input impedance > 9 megohm in voltage mode, and input impedance > 250 ohms in current mode.

The IC693ALG220 module is GE Fanuc's analog input module, part of the 90-30 series. The input module is a component of the programmable logic controller (PLC) with 4 input channels. Each channel can easily convert analog signals to digital signals according to the user's application requirements. In addition, the GE Fanuc IC693ALG220 CAV input module allows the user to convert the input signal range from -10 to +10 volts. The conversion speed of each channel is about 1 millisecond. As a result, the IC693ALG220 input module provides an update rate of about 4 milliseconds for any channel at a time. The converted signal has a 12-bit binary resolution.
