IC693ACC337 终端块快速连接系列  90-30离散I/O模块

【产品详情】

IC693ACC337是一个终端块快速连接系列90-30离散I/O模块。该系统也被称为终端块快速连接系统或TBQC。TBQC在安装时提供了几个优点，因为它允许I/O模块快速连接到名称所引用的终端块。终端时钟快速连接由用户简单地插入标准DIN导轨，然后在终端块的连接器和I/O模块的连接器之间放置工厂制造的电缆。这使得放置和使用变得简单。但是，不建议用于模拟模块，因为它不符合必要的屏蔽要求。安装IC693ACC337只需要大约两分钟，而不是安装典型的16点模块，可能需要数小时才能正确接线。

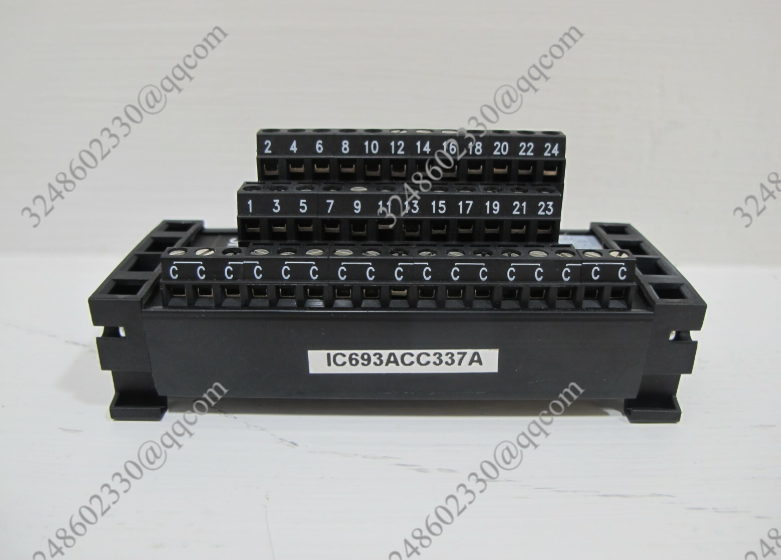

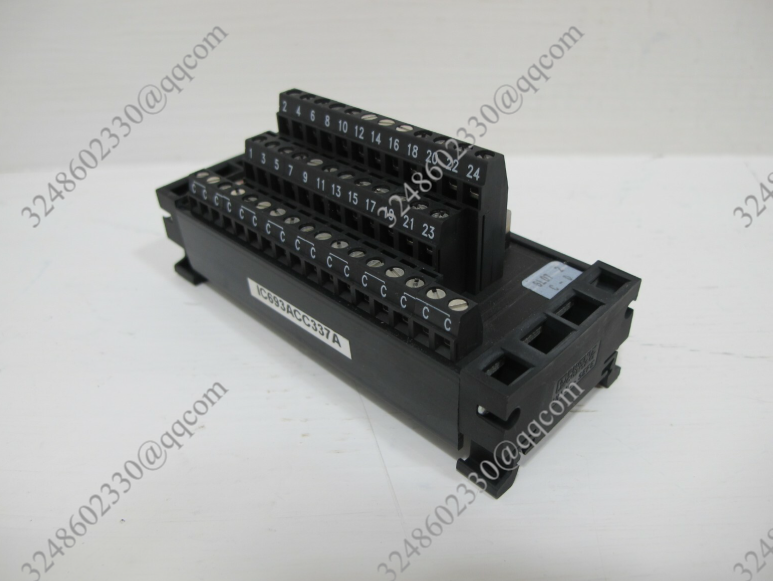

端子座包含三排排列在三层，具有简单使用的带有上升笼型连接的松不脱螺钉。IC693ACC337的输入可以根据它所使用的模块而变化，但它包括5/12 VDC 32点的TTL正/负逻辑，24 VDC 32点的正/负逻辑，5/24 VDC(输出)负逻辑也在32点，12/24 VDC(输出)正逻辑0.5A在32点。连接时，面板和端子排之间共有6根电缆。由于放置的原因，需要在模块的一端安装直角连接器的左右侧电缆。这样可以最大限度地减少设备所需的空间。IC693ACC337是该系列中唯一可以与32点模块一起使用的端子排，但需要两个端子排。该端子排兼容的模块有:IC693MDL654、IC693MDL655、IC693MDL752、IC693MDL753。

IC693ACC337 终端块快速连接系列  90-30离散I/O模块

【英文介绍】

The IC693ACC337 is a terminal block Fast connection series 90-30 discrete I/O module. The system is also known as the Terminal Block Rapid Connection System or TBQC. TBQC offers several advantages when installed, as it allows the I/O module to quickly connect to the terminal block that the name refers to. The terminal clock fast connection is made by the user simply plugging in a standard DIN rail and then placing a factory made cable between the connector of the terminal block and the connector of the I/O module. This makes it easy to place and use. However, it is not recommended for analog modules as it does not meet the necessary shielding requirements. Installing the IC693ACC337 takes only about two minutes, rather than installing a typical 16-point module, which can take hours to wire properly.

The terminal block consists of three rows arranged in three layers with easy-to-use captive screws with rising cage type connections. The input of the IC693ACC337 can vary depending on the module it uses, but it includes TTL positive/negative logic at 5/12 VDC 32 points, positive/negative logic at 24 VDC 32 points, 5/24 VDC(output) negative logic also at 32 points, and 12/24 VDC(output) positive logic at 0.5A at 32 points. There are six cables between the panel and the terminal block. Due to placement, the left and right side cables of the right Angle connector need to be installed at one end of the module. This minimizes the space required for the equipment. The IC693ACC337 is the only terminal block in the series that can be used with a 32-point module, but two terminal blocks are required. This block is compatible with the following modules :IC693MDL654, IC693MDL655, IC693MDL752, and IC693MDL753.

IC693ACC337 终端块快速连接系列  90-30离散I/O模块
