IC693ACC323 90-30系列电源模块

【产品详情】

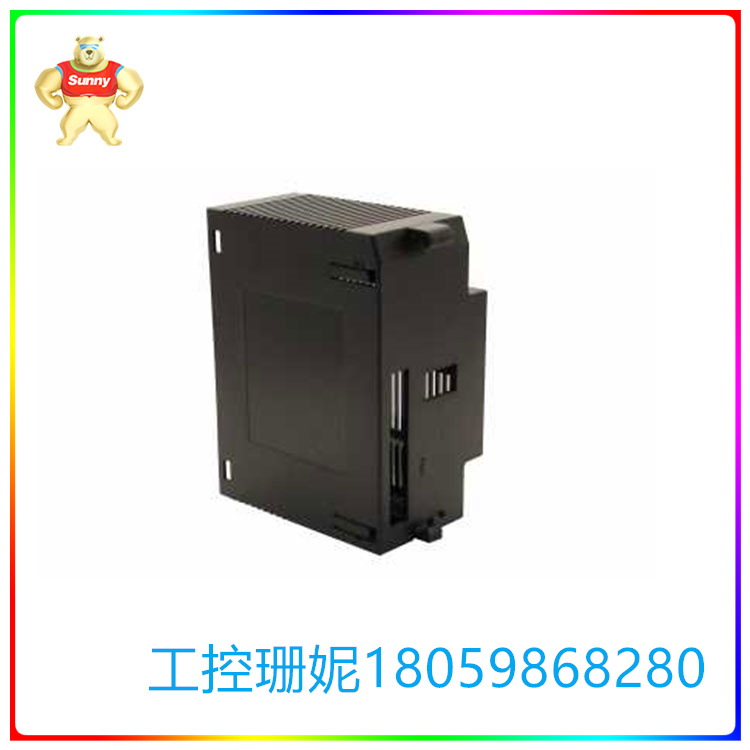

IC693ACC323模块是GE发那科公司生产的90-30系列电源模块。该电源模块的输入电压范围为交流85伏~ 264伏，直流100伏~ 300伏。GE Fanuc IC693ACC323电源模块有3个不同的输出，+24伏直流和+5伏直流继电器输出电压，为系列90-30输出继电器模块供电。隔离后的+ 24v直流电压可用于部分模块内部使用，也可用于24v直流额定输入模块供电。IC693ACC323电源模块有4个LED灯，分别标有“PWR”、“RUN”、“OK”和“BATT”。

安装时，IC693ACC323电源模块应安装在任何底板最左边的槽位上。此外，输入电流应为4安培，最长为250毫秒。120v交流电源的零线、地线、热线或240v交流电源的L1线、L2线、地线应通过顶部的3个端子连接到电源盒上，这些端子位于IC693ACC323电源模块正面的端子排上。直流电源的电源连接是将125伏直流电源的正负线分别连接到端子接头的上2个端子上。用户必须注意，连接对直流/交流输入电源的极性不敏感。

IC693ACC323 90-30系列电源模块

【英文介绍】

The IC693ACC323 module is a 90-30 series power module produced by GE Fanuc. The input voltage ranges from 85 V to 264 V for AC and 100 V to 300 V for DC. The GE Fanuc IC693ACC323 power module has 3 different outputs, +24 V DC and +5 V DC relay output voltages to power the series 90-30 output relay modules. The isolated + 24v DC voltage can be used for internal use of some modules, and can also be used for 24v DC rated input module power supply. The IC693ACC323 power module has 4 LED lights labeled "PWR", "RUN", "OK" and "BATT".

The IC693ACC323 power module should be installed in the leftmost slot of any baseplate. In addition, the input current should be 4 amps for a maximum of 250 milliseconds. The neutral cable, ground cable, or hot wire of the 120v AC power supply or L1 cable, L2 cable, or ground cable of the 240v AC power supply must be connected to the power box through the top three terminals, which are located on the terminal block on the front of the IC693ACC323 power module. For the DC power supply, connect the positive and negative wires of the 125-volt DC power supply to the upper two terminals of the terminal connector. The user must note that the connection is not sensitive to the polarity of the DC/AC input power supply.
