IC693MDL730 可编程逻辑控制器 正逻辑输出模块

【产品详情】

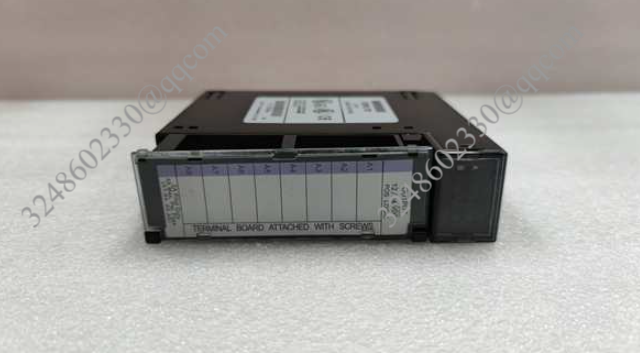

IC693MDL730是GE发那科90-30系列可编程逻辑控制器(PLC)产品家族的正逻辑输出模块，现隶属于艾默生自动化。该模块在单个组中具有8个离散输出通道，输出电压范围为12-24 VDC，纹波为+ 20%，-15%。每个通道提供每个点2安培的输出电流;60摄氏度时每个保险丝2安培;每个保险丝在50摄氏度时输出4安培。IC693MDL730在场侧和逻辑侧之间的隔离达到1500伏。输出通道的冲击电流额定值为9.4安培10毫秒;最大输出电压降12伏;最大关闭状态泄漏电流为1ma，每次转换的典型开关响应时间为2ms。该模块占用90-30基板的单个插槽，并与系列90-30五(5)或十(10)槽基板的任何I/O插槽兼容。当所有输出都通电时，它的电流绘制为55ma，来自背板上的5vdc总线。IC693MDL730兼容各种电气负载，特别是电机启动器，螺线管和指示器。模块必须连接外部电源，以提供运行电源。模块前面板上安装有状态LED指示灯，包括熔丝熔断指示灯、模块故障指示灯和8个通道指示灯，分别分配给每个输出通道，描述每个输出点的运行状态。该模块附带一个拆卸端子板，以简化维护。

IC693MDL730 PLC模块具有12至24伏直流额定电压，具有正逻辑和2安培输出电流。该组件具有直流电源，并配有8个点。该装置具有每点2安培负载电流，而响应时间额定为2毫秒开和2毫秒关。输出类型为晶体管输出，模块带有正极。连接器类型是带有20个螺钉的端子座，随模块一起提供。

IC693MDL730 可编程逻辑控制器 正逻辑输出模块

【英文介绍】

The IC693MDL730 is a positive logic output module in GE Fanuc's 90-30 series programmable logic controller (PLC) product family, now part of Emerson Automation. The module has 8 discrete output channels in a single group with an output voltage range of 12-24 VDC and a ripple of + 20%, -15%. Each channel provides an output current of 2 amps per point; 2 amps per fuse at 60 ° C; Each fuse outputs 4 amps at 50 degrees Celsius. The IC693MDL730 is isolated to 1500 volts between the field side and the logical side. The output channel has an impulse current rating of 9.4 amps for 10 ms; Maximum output voltage drop 12 volts; The maximum off state leakage current is 1ma, and the typical switching response time per transition is 2ms. The module occupies a single slot on a 90-30 substrate and is compatible with any I/O slot on a series 90-30 five (5) or ten (10) slot substrate. When all outputs are energized, its current is plotted as 55ma, coming from the 5vdc bus on the backplane. The IC693MDL730 is compatible with a wide range of electrical loads, especially motor starters, solenids and indicators. The module must be connected to an external power supply to provide operating power. The front panel of the module is equipped with status LED indicators, including fuse fuse indicator, module fault indicator and 8 channel indicators, which are assigned to each output channel and describe the operating status of each output point. The module comes with a removable terminal board to simplify maintenance.

The IC693MDL730 PLC module has a 12 to 24 volt DC voltage rating with positive logic and 2 amp output current. The module has a DC power supply and is equipped with 8 points. The device has a load current of 2 amps per point, while the response time is rated at 2 ms on and 2 ms off. The output type is transistor output, and the module has a positive electrode. The connector type is a terminal block with 20 screws and is supplied with the module.
