IC693MDL646 可编程逻辑控制器 电源输入端子

【产品详情】

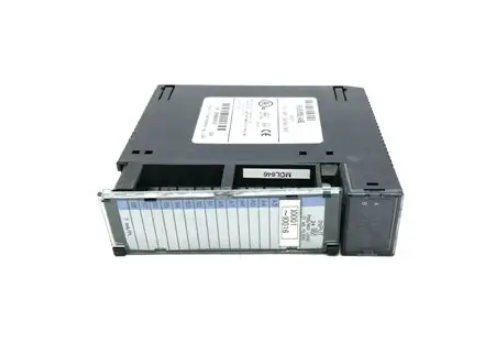

IC693MDL646是系列90-30可编程逻辑控制器(PLC)平台的组件模块，该平台以前由GE发那科公司生产，现在由艾默生自动化公司生产。该模块设计为接受24 VDC输入信号，支持正、负逻辑接线配置。

IC693MDL646有一组16(16)个输入通道。它带有一个通用的电源输入端子，典型响应时间为1毫秒。该模块设计用于适应各种二进制或开/关现场设备，如按钮设备，开关，接近开关和辅助触点。该模块接受0- 30vdc的输入电压范围，标称值为24vdc，在额定电压下输入电流为7ma。

该模块的输入特性包括11.5 VDC - 30 VDC的On状态电压;关断状态电压0 VDC - 5 VDC;导通状态电流3.2 mA(最小);关闭状态电流为1.1 mA(最大)，功耗为80ma @ 5VDC (5VDC母线电压)和125ma @ 24VDC母线电压或用户提供电源。

IC693MDL646带有20个连接端子。这些终端由一扇旋转门覆盖，旋转门还提供接线插入，作为如何建立与设备和电源的连接的参考。IC693MDL646有颜色标识，表示该模块为低压模块。个别通道状态LED也安装以及模块OK LED。

IC693MDL646模块是GE发那科24伏直流模块，属于GE可编程逻辑控制器系列90-30。

IC693MDL646 可编程逻辑控制器 电源输入端子

【英文介绍】

The IC693MDL646 is a component module of the Series 90-30 Programmable Logic Controller (PLC) platform that is manufactured by formerly by GE Fanuc, now by Emerson Automation.  This module is designed to accept 24 VDC input signals and supports Positive and Negative logic wiring configuration.

The IC693MDL646 has a single group of Sixteen (16) input channels.  It comes with a common power input terminal with 1 ms On and Off typical response time.  This module is designed to accommodate a wide variety of Binary or On/Off field devices such as push button devices, switches, proximity switches and auxiliary contacts.  This module accepts an input voltage range of 0-30 VDC with nominal value of 24 VDC and input current of 7 mA at rated voltage.

Input characteristics of this module includes an On state voltage of 11.5 VDC - 30 VDC;  Off state voltage of 0 VDC - 5 VDC;  On state current of 3.2 mA (minimum);  Off state current of 1.1 mA (maximum) and Power consumption of 80 mA @ 5VDC for 5VDC bus voltage and 125 mA @ 24VDC bus voltage or user provided power supply.

The IC693MDL646 comes with Twenty (20) connection terminals.  These terminals are covered by a swing door with the swing door also providing the wiring insert as reference on how to establish connection to devices and power sources.  This module follows a color-code indicating that the IC693MDL646 is a low-voltage module.  Individual channel status LEDs are also installed as well as Module OK LED.

The IC693MDL646 module is a GE Fanuc 24 Volts DC module classified under Series 90-30 of the GE programmable logic controllers.
