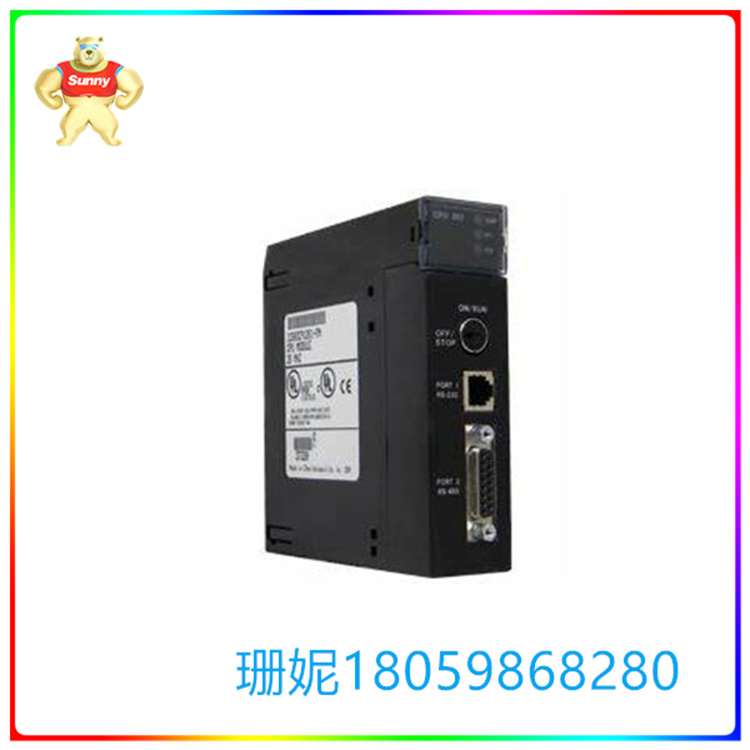

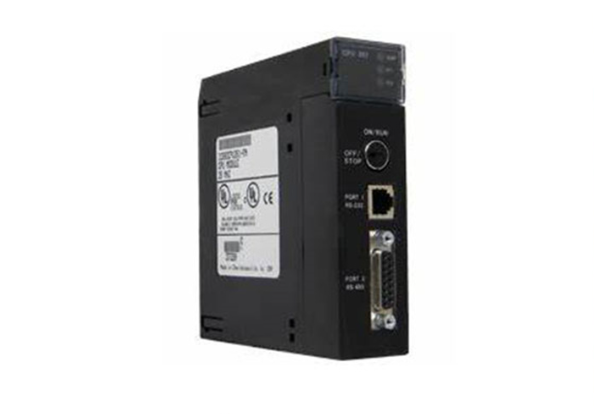

IC693CPU351-DF 单槽位CPU模块 直流电源

【产品详情】

GE Fanuc IC693CPU351为单槽位CPU模块。该模块使用的最大功率为5V直流电源，所需电源负载为890ma。该模块的处理速度为25mhz，使用的处理器类型为80386EX。环境温度范围为0℃~ 60℃。该模块还提供了240K字节的内置用户内存，用于将程序输入模块。用户内存的实际可用大小主要取决于分配给%AI、%R和%AQ的数量。

IC693CPU351利用Flash和RAM等内存存储来存储数据，并与PCM/CCM兼容。它还支持固件版本9.0和以后发布的版本的浮点数学等特性。它包含2000多个计时器或计数器，用于测量经过的时间。IC693CPU351还配备了一个备用电池时钟。该模块实现的扫描速率为0.22 m-sec/1K。IC693CPU351包含1280位的全局内存和9999个字的寄存器内存。另外，提供模拟输入和输出的存储器是固定的，为9999个字。内存也分配给内部和临时输出线圈4096位和256位。IC693CPU351由3个串口组成，支持SNP从和RTU从。

IC693CPU351-DF 单槽位CPU模块 直流电源

【英文介绍】

The GE Fanuc IC693CPU351 is a CPU module in a single slot. The maximum power used by the module is 5V DC power supply and the required power load is 890ma. The module has a processing speed of 25mhz and uses a processor type of 80386EX. The ambient temperature ranges from 0 ° C to 60 ° C. The module also provides 240K bytes of built-in user memory for entering programs into the module. The actual available size of user memory depends primarily on the amount allocated to %AI, %R, and %AQ.

The IC693CPU351 utilizes in-memory storage such as Flash and RAM to store data and is compatible with PCM/CCM. It also supports features such as floating point math for firmware version 9.0 and later releases. It contains more than 2,000 timers or counters to measure the elapsed time. The IC693CPU351 also comes with a backup battery clock. The scan rate achieved by this module is 0.22m-sec /1K. The IC693CPU351 contains 1280 bits of global memory and 9999 words of register memory. In addition, the memory that provides analog input and output is fixed at 9999 words. Memory is also allocated to internal and temporary output coils of 4096 bits and 256 bits. The IC693CPU351 consists of three serial ports, supporting SNP slave and RTU slave.

IC693CPU351-DF 单槽位CPU模块 直流电源
