IC660BBS103 智能模块 具有8个可作为输入和输出通道

【产品详情】

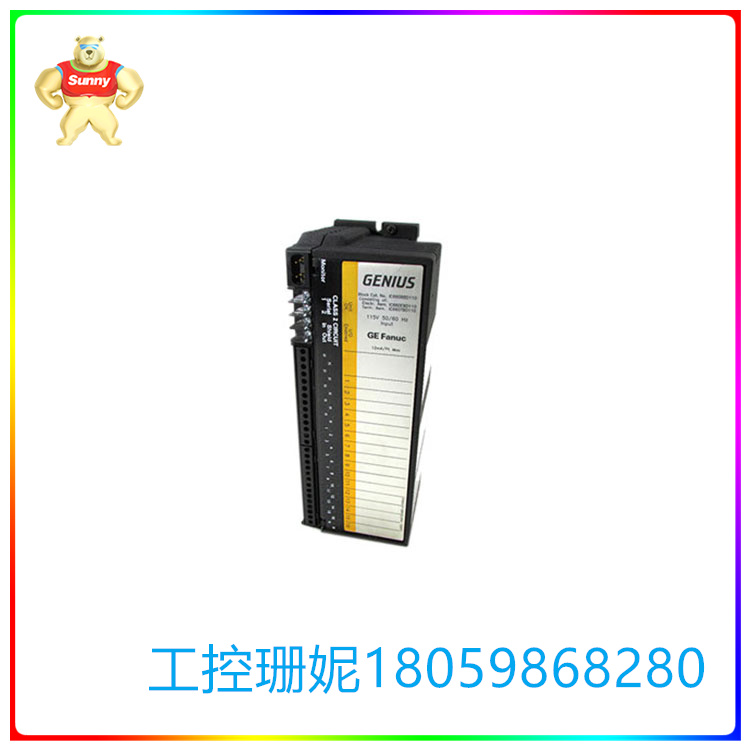

GE Fanuc IC660BBS103是一款Genius I/O模块。该硬件是一个智能模块，具有8个可作为输入和输出通道操作的电路。它可以在交流或直流电压下运行，如115vac和125VDC。

IC660BBS103的物理尺寸为8.83英寸(22.44厘米)x 3.34英寸(8.48厘米)x 3.91英寸(9.93厘米)(HxWxD)，重4磅。(1.8公斤)。它带有状态LED指示灯，如单元OK和I/O启用，以及每个模块电路的单独LED。块对块隔离额定1500V，最大散热16.8W。所有输入和最大45.6W。每个电路的输出电流为2安培。工作电压93-132VAC，频率47- 63hz, 105-132VDC。在交流电压下工作时，电源下降时间为1个周期，在直流电压下工作时为10毫秒。

对于输入操作，交流操作处理时间为2ms，直流操作处理时间为0.8 ms。这两个处理时间都直接受到配置的过滤器时间(10到100ms，增量为10ms)的影响。输入电路能够检测断线、过温和I/O功率损耗。

对于输出操作，输出电路在交流操作时输出2A，在直流电压下工作时输出2A，电阻和1A感应。模块的导通延时为0.5 Hz +交流工作1ms，直流工作1ms。输出电路配有内部电子短路跳闸，交流操作100ms，直流操作10ms。此外，输出电路具有短路、过载、空载、过温和I/O功率丢失的内部诊断。

IC660BBS103 智能模块 具有8个可作为输入和输出通道

【英文介绍】

The GE Fanuc IC660BBS103 is a Genius I/O module. The hardware is an intelligent module with eight circuits that can be operated as input and output channels. It can operate at AC or DC voltages, such as 115vac and 125VDC.

The IC660BBS103 measures 8.83 inches (22.44 cm)x 3.34 inches (8.48 cm)x 3.91 inches (9.93 cm)(HxWxD) and weighs 4 pounds. (1.8 kg). It comes with status LED indicators such as unit OK and I/O enabled, as well as separate leds for each module circuit. Block to block isolation rating 1500V, maximum heat dissipation 16.8W. All inputs and maximum 45.6W. The output current of each circuit is 2 amps. Operating voltage 93-132VAC, frequency 47-63hz, 105-132VDC. When operating at AC voltage, the power drop time is 1 cycle, and when operating at DC voltage, it is 10 milliseconds.

For input operations, the AC operation processing time is 2ms and the DC operation processing time is 0.8ms. Both processing times are directly affected by the configured filter times (10 to 100ms in increments of 10ms). The input circuit detects line breaks and excessive I/O power losses.

For output operation, the output circuit outputs 2A during AC operation and 2A, resistance and 1A induction when operating at DC voltage. The on-off delay of the module is 0.5Hz + 1ms for AC and 1ms for DC. The output circuit is equipped with internal electronic short circuit trip, AC operation 100ms, DC operation 10ms. In addition, the output circuit has an internal diagnosis of short circuit, overload, no-load, too mild I/O power loss.

IC660BBS103 智能模块 具有8个可作为输入和输出通道
