IC660BBS100 隔离I/O模块

【产品详情】

GE Fanuc IC660BBS100 I/O模块是GE Genius I/O系列中的115伏交流和125伏直流额定隔离I/O模块。IC660BBS100 I/O块有4个隔离组，每组2个I/O电路，每组额定在125伏直流或115伏交流下运行。如果输出的命令状态与块自身内部开关的状态不相同，IC660BBS100 I/O块报告失败的开关诊断消息。IC660BBS100 I/O块上的组与地之间的隔离额定为250伏交流连续。暂态额定电压为2000伏，峰值持续10秒。IC660BBS100 I/O模块的尺寸为8.83英寸× 3.5英寸× 3.94英寸。块的大约重量是4磅。模块工作时散热量为16.8瓦。

IC660BBS100 I/O模块的工作温度范围为0 ~ 60摄氏度。控制块所需的功率最大为8瓦。交流工作电压范围为93伏~ 132伏，直流工作电压范围为105伏~ 132伏。交流操作的频率范围是47到63赫兹。电源脱落时间为每周期10毫秒。每块块的峰值输出电流在35摄氏度时为15安培，在60摄氏度时为7.5安培。IC660BBS100 I/O模块具有100毫秒的内部电子短路跳闸(AC)和10毫秒的长时间跳闸(DC)。IC660BBS100 I/O模块与GE Fanuc ic660hh501手持监视器兼容。IC660BBS100 I/O模块可以与任何GE发那科总线控制器一起使用。

IC660BBS100 隔离I/O模块

【英文介绍】

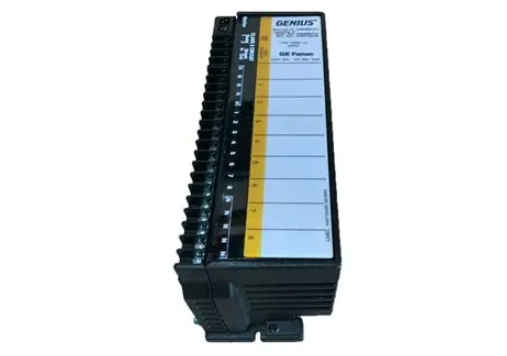

The GE Fanuc IC660BBS100 I/O block is a 115 Volts AC and 125 Volts DC rated isolated I/O block in the GE Genius I/O series.  The IC660BBS100 I/O block has 4 isolated groups of 2 I/O circuits and each group is rated for operation at 125 Volts DC or 115 Volts AC. The IC660BBS100 I/O block reports a failed switch diagnostics message if the commanded state of an output is not the same as the state of the block’s own internal switch.  The isolation between a group and ground on the IC660BBS100 I/O block is rated for 250 Volts AC continuous.  The transient rating is 2000 Volts peak for a duration of 10 seconds.  The dimensions of the IC660BBS100 I/O block are 8.83 x 3.5 x 3.94 inches.  The approximate block weight is 4 pounds.  The heat dissipated by the module during operation is 16.8 Watts.

The operating temperature range for the IC660BBS100 I/O block is 0 to 60 degrees Celsius.  The power required for controlling the block is a maximum of 8 Watts.  The AC operating voltage range is 93 to 132 Volts AC and the DC operating voltage range is 105 to 132 Volts DC.  The frequency range for AC operation is 47 to 63 Hertz.  The power supply dropout time is 10 milliseconds per cycle.  The peak output current per block is 15 Amps at 35 degrees Celsius and 7.5 Amps at 60 degrees Celsius.  The IC660BBS100 I/O block comes with a 100-millisecond internal electronic short circuit trip (AC) and a 10-millisecond long time trip (DC).  The IC660BBS100 I/O block is compatible with the GE Fanuc IC660HHM501 handheld monitor.  The IC660BBS100 I/O block can be used with any GE Fanuc bus controller.

IC660BBS100 隔离I/O模块
