IC660BBR100 高速计数器模块 专门设计用于涡轮流量计

【产品详情】

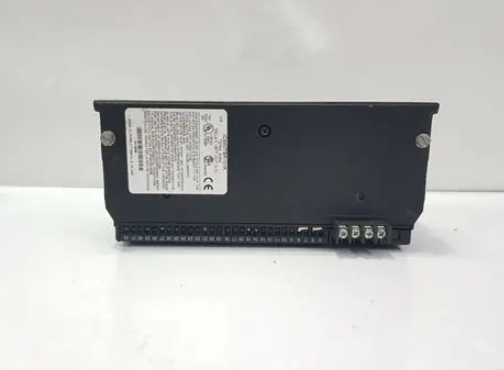

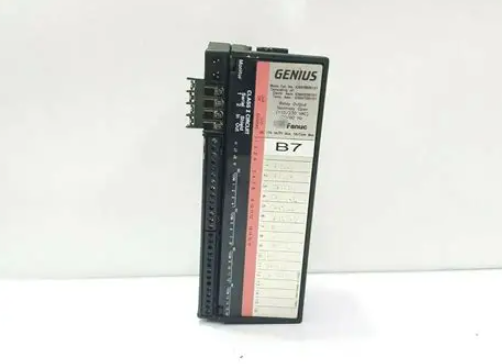

IC660BBD120是一个高速计数器模块，是天才块IO的一部分，可以用作分布式I/O架构的一个组件。该模块以前是GE发那科自动化产品目录的一部分，目前属于艾默生自动化。虽然更换了品牌，但该模块的功能和特性保持不变。功能模块具有十二(12)5V直流至30V直流输入，接受频率高达200 kHz和四(4)4.75V直流至5.25V直流，200mA输出，专门设计用于涡轮流量计，仪表验证，速度测量，物料处理和运动控制应用。这个模块有一个开放式的外壳。它必须安装在一个外壳内，提供足够的保护，防止工业污染物。此外，它具有紧凑的无机架设计，由两(2)个组件组成，即零件号为IC660TBD120的终端底座组件和目录号为IC660EBD120的电子组件。这些模块化特性使该模块无需拆卸激励线连接即可进行维修。该模块的无机架设计消除了对底板的操作和与合作伙伴设备通信的需要。它可以安装到通过所提供的安装孔固定的外壳子面板上。可以直接连接现有的Genius I/O网络，因为该模块提供了连接上述协议的终端。它还配备了一个手持监视器(HHM)端口，用于连接到HHM设备。

IC660BBD120模块由GE发那科的Genius I-O产品线设计和制造。这个块是高速计数器块。它直接处理额定频率高达200千赫兹的快速脉冲信号。这使得IC660BBD120高速计数器块适用于工业应用，如运动控制，物料处理，仪表验证，涡轮流量计和速度测量应用。这个计数器块的一些最独特的功能包括电池备份支持，防止输出电源浪涌，软件配置，12个输入，4个输出，一个振荡器输出，和一个5伏直流额定输出。IC660BBD120高速计数器模块可以配置为不同的计数方式。它可以配置为只向上计数，只向下计数，同时向上和向下计数，或者计算正在变化的两个值之间的差值。

GE Fanuc Genius I-O IC660BBD120高速计数器块支持直接处理，这意味着该高速计数器块无需与CPU通信即可感知输入，执行计数功能并响应适当的输出。这种高速计数器块可以处理高达3安培的浪涌电流，每次输出长达10毫秒。它可以在32到140华氏度的温度下工作，并在-40到212华氏度的温度下储存。它在操作和存储中可以容忍的非冷凝湿度水平在5%到95%之间。IC660BBD120高速计数器块可以处理具有不同复杂程度的1、2或4个不同计数器的应用程序。

IC660BBR100 高速计数器模块 专门设计用于涡轮流量计

【英文介绍】

The IC660BBD120 is a high-speed counter module that is part of Genius Block IO and can be used as a component of the distributed I/O architecture. The module was formerly part of GE Fanuc's automation product catalog and is currently owned by Emerson Automation. Despite the change of brand, the functions and features of the module remain the same. The functional modules feature twelve (12)5V DC to 30V DC inputs, accept frequencies up to 200 kHz and four (4)4.75V DC to 5.25V DC, 200mA outputs, and are specifically designed for turbine flow meters, instrument validation, speed measurement, material handling, and motion control applications. This module has an open shell. It must be installed in a housing that provides adequate protection against industrial contaminants. In addition, it has a compact raddless design consisting of two (2) components, namely the terminal base assembly with part number IC660TBD120 and the electronic assembly with catalog number IC660EBD120. These modular features allow the module to be serviced without removing the drive wire connection. The module's rackless design eliminates the need for the operation of the baseboard and communication with partner equipment. It can be mounted to a shell panel secured through the provided mounting holes. It is possible to connect directly to the existing Genius I/O network because the module provides a terminal to connect to the above protocols. It also comes with a Handheld Monitor (HHM) port for connecting to HHM devices.

The IC660BBD120 module is designed and manufactured by GE Fanuc's Genius I-O product line. This block is the high-speed counter block. It directly processes fast pulse signals with rated frequencies up to 200 kilohertz. This makes the IC660BBD120 high speed counter block suitable for industrial applications such as motion control, material handling, instrument validation, turbine flow meters and speed measurement applications. Some of the most unique features of this counter block include battery backup support, output power surge prevention, software configuration, 12 inputs, 4 outputs, an oscillator output, and a 5 volt DC rated output. The IC660BBD120 high-speed counter module can be configured for different counting modes. It can be configured to count up only, count down only, count up and down at the same time, or calculate the difference between two values that are changing.

The GE Fanuc Genius I-O IC660BBD120 high-speed counter block supports direct processing, which means that the high-speed counter block senses the input, performs the counting function, and responds to the appropriate output without having to communicate with the CPU. This high-speed counter block can handle inrush currents of up to 3 amps with up to 10 milliseconds of output at a time. It can operate at temperatures from 32 to 140 degrees Fahrenheit and be stored at temperatures from -40 to 212 degrees Fahrenheit. The non-condensing humidity level it can tolerate in operation and storage is between 5% and 95%. The IC660BBD120 high-speed counter block can handle applications with 1, 2, or 4 different counters of varying complexity.

IC660BBR100 高速计数器模块 专门设计用于涡轮流量计
