IC660BBD026 I/O电路模块 带有16个输入点

【产品详情】

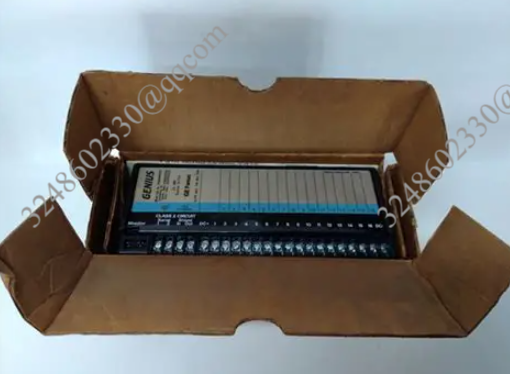

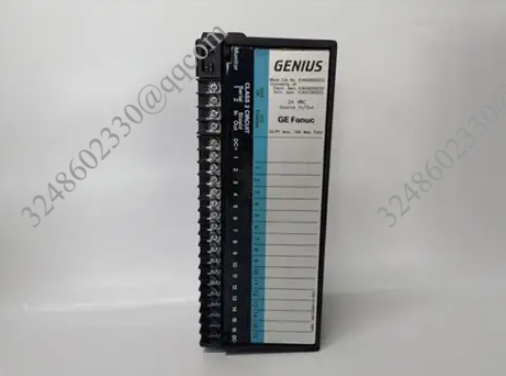

IC660BBD026模块是GE发那科制造的I/O电路模块。它的额定直流电压为12至24伏。该模块的前端带有16个输入点。输入端配有LED指示灯。每当使用特定输入进行连接时，led就会亮起。IC660BBD026 I/O电路块可以很容易地连接到不同的GE PLC组件。它可以连接到手持式程序员或控制器通过使用监控端口在左上角的块。IC660BBD026 I/O电路块为不同的离散、模拟和现场设备提供接口选项。I/O块具有高级诊断功能，并且可以通过使用块中的2个串行端口将其连接到个人计算机来轻松配置。

除了串行端口外，IC660BBD026 I/O电路块的前部还带有屏蔽输入端口和屏蔽输出端口。两个LED指示灯“I/O Enabled”和“Unit OK”状态更新出现在监控端口附近。IC660BBD026 I/O电路块带有用于三态输入的开路线。它具有“过温错误”开关选项，在发生过温错误时保护系统起着至关重要的作用。短路诊断功能是目前的系统，如果输出的瞬时电流超过30安培的第一个线路周期。IC660BBD026 I/O电路块的环境工作温度应保持在0 ~ 60摄氏度之间才能正常工作，不使用时可将电路块存储在-40 ~ 100摄氏度之间。

IC660BBD026 I/O电路模块 带有16个输入点

【英文介绍】

The IC660BBD026 module is an I/O circuit module manufactured by GE Fanuc. It has a rated DC voltage of 12 to 24 volts. The front end of the module has 16 input points. The input is equipped with an LED indicator. The led lights up whenever a connection is made with a specific input. IC660BBD026 I/O circuit blocks can be easily connected to different GE PLC components. It can be connected to a handheld programmer or controller by using the monitor port in the upper left corner of the block. The IC660BBD026 I/O circuit block provides interface options for different discrete, analog, and field devices. The I/O block has advanced diagnostic capabilities and can be easily configured by connecting it to a personal computer using the 2 serial ports in the block.

In addition to the serial port, the front of the IC660BBD026 I/O circuit block has a shielded input port and a shielded output port. Two LED indicators "I/O Enabled" and "Unit OK" status updates appear near the monitoring port. The IC660BBD026 I/O circuit block has an open route for three-state inputs. It has an "overtemperature error" switch option, which plays a vital role in protecting the system in the event of an overtemperature error. The short circuit diagnosis function is present in the system if the output instantaneous current exceeds 30 amps during the first line cycle. The ambient operating temperature of the IC660BBD026 I/O circuit block should be kept between 0 and 60 degrees Celsius to work normally, and the circuit block can be stored between -40 and 100 degrees Celsius when not in use.

IC660BBD026 I/O电路模块 带有16个输入点
