IC660BBD025 实现分布式I/O架构 具有32个I/O电路

【产品详情】

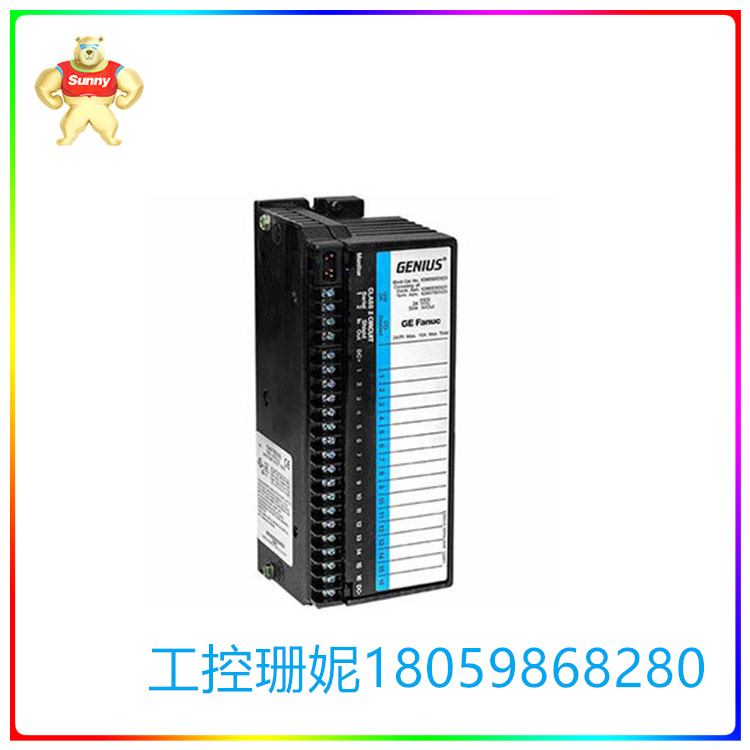

IC660BBD025是来自Genius I/O Block系列的Block I/O。该器件主要用于实现分布式I/O架构，因为IC660BBD025是一个全功能的Genius I/O节点，具有32个I/O电路，内置Genius通信终端和集成的手持监视器(HHM)端口。IC660BBD025原由GE发那科自动化生产，但该产品系列和其他自动化设备已被艾默生自动化收购。该模块支持远程安装，靠近被控制的机器或过程，因为IC660BBD025能够与高达7500英尺远的控制器通信。它可以直接集成系列90-30、系列90-70控制器和其他支持通信协议的控制器，以及天才总线控制器、接口模块和第三方设备。该模块的输入电路接受10至30 VDC范围为12/24 V标称电源;4.9至5.3伏电压范围为5伏标称电源在水槽配置仅。输入电路具有1、2、3、4、5、10、20、30、40、50、60、70、80、90或100ms的可选滤波时间和1.4 ms的输入处理时间。输出电路的额定电流为0.5安培，最大浪涌电流为4安培，最长可达10毫秒。该模块的总输出电流为16安培，单个输出延迟为0.5 ms。IC660BBD025提供状态LED指示灯，如模块OK和I/O Enabled。该模块还配备了可复位的自我保护电路和先进的诊断。

GE Fanuc Genius I-O IC660BBD025 I/O块为汇聚I/O块。它有5伏、12伏或24伏直流额定电压。它还带有32个I/O点。块的额定负载电流为0.5安培。I/O块可以与不同的输入设备、开关和现场设备连接。IC660BBD025 I/O吸收块可以很容易地配置，它可以用作输入或输出设备。块的正面配备了不同的端口和LED指示灯。在块的顶部有一个监控端口，可以用来连接可编程控制器或监控设备。在监控端口下面，串行端口1和串行端口2与屏蔽输入端口和屏蔽输出端口一起可用。

GE Fanuc IC660BBD025 I/O Block带有I/O Enabled LED和Unit OK LED，当整个单元和I/O都处于正常运行状态时，可以提醒操作员。前面的32个I/O点都有一个LED，当使用特定的I/O点时发光。该I/O块已通过UL标准和其他工业标准认证。IC660BBD025 I/O块具有内置保护功能，包括过温，过载和短路保护。这个天才I/O块完全兼容+5伏晶体管逻辑(TTL)。这个块是紧凑的，它的尺寸为8.83英寸高，3.58英寸宽，4.7英寸深。它只需8个输入就能散发11瓦的热量，所有32个点都能散发18瓦的热量。块对块的隔离电压是850伏。

IC660BBD025 实现分布式I/O架构 具有32个I/O电路

【英文介绍】

The IC660BBD025 is a Block I/O from the Genius I/O Block family. The device is primarily used to implement a distributed I/O architecture, as the IC660BBD025 is a fully functional Genius I/O node with 32 I/O circuits, a built-in Genius communication terminal, and an integrated Handheld Monitor (HHM) port. The IC660BBD025 was originally manufactured by GE Fanuc Automation, but this product line and other automation equipment have been acquired by Emerson Automation. The module supports remote installation, close to the machine or process being controlled, as the IC660BBD025 is able to communicate with controllers up to 7,500 feet away. It can directly integrate Series 90-30, Series 90-70 controllers and other controllers that support communication protocols, as well as genius Bus controllers, interface modules and third-party devices. The module's input circuit accepts a 12/24 V nominal power supply in the 10 to 30 VDC range; 4.9 to 5.3 volts voltage range for 5 volts nominal power supply in sink configuration only. The input circuit has an optional filtering time of 1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90 or 100ms and an input processing time of 1.4 ms. The output circuit has a rated current of 0.5 amps and a maximum surge current of 4 amps for up to 10 milliseconds. The module has a total output current of 16 amps and a single output delay of 0.5 ms. The IC660BBD025 provides status LED indicators such as module OK and I/O Enabled. The module is also equipped with a resettable self-protection circuit and advanced diagnostics.

GE Fanuc Genius I-O IC660BBD025 The I/O block is an aggregated I/O block. It is available with 5 volts, 12 volts or 24 volts DC voltage ratings. It also comes with 32 I/O points. The block has a rated load current of 0.5 amps. I/O blocks can be connected to different input devices, switches, and field devices. The IC660BBD025 I/O absorber block can be easily configured and it can be used as an input or output device. The front of the block is equipped with different ports and LED indicators. At the top of the block there is a monitoring port that can be used to connect a programmable controller or monitoring device. Under the monitoring ports, serial ports 1 and 2 are available together with masked input ports and masked output ports.

The GE Fanuc IC660BBD025 I/O Block comes with an I/O Enabled LED and a Unit OK LED to alert the operator when the entire unit and I/O are up and running. Each of the 32 I/O points on the front has an LED that lights up when a specific I/O point is used. The I/O block has been certified to UL standards and other industry standards. The IC660BBD025 I/O block has built-in protection, including overtemperature, overload and short circuit protection. This genius I/O block is fully compatible with +5 volt transistor logic (TTL). The block is compact, and it measures 8.83 inches high, 3.58 inches wide, and 4.7 inches deep. It emits 11 watts of heat with just eight inputs, and 18 watts from all 32 points. Block to block isolation voltage is 850 volts.
