IC660BBD024 高密度的32点离散I/O块 具有单独可配置的通道作为输入

【产品详情】

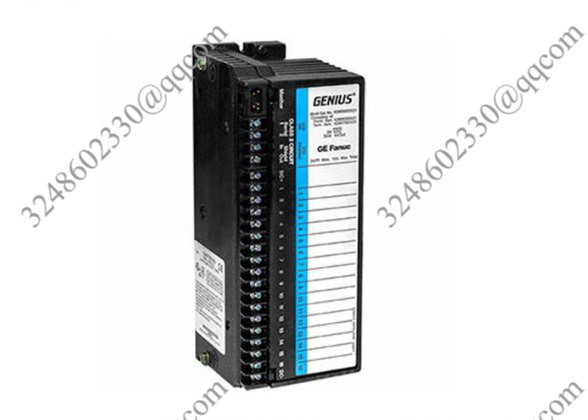

IC660BBD024是GE发那科的智能Block I/O模块。该模块是一个高密度的32(32)点离散I/O块，具有单独可配置的通道作为输入，输出或带反馈的输出。该模块支持源布线，并提供可复位的自我保护电路和先进的诊断。

IC660BBD024输入特性包括兼容12/24VDC作为on状态信号值。具体来说，对于12VDC，导通范围为8-12VDc，而24VDC导通范围为18-24VDC。它的输入阻抗为3.3 K欧姆，输入处理时间为1.4 ms，受配置的信号滤波的影响，具有多种选项，如1、2、3、4、5、10、20、30、40、50、60、70、80、90或100ms。

当配置为输出时，每个通道能够提供0.5安培的接通延迟为0.5 ms，并且能够承受10 ms的最大涌流4安培，可能每0.5秒重复一次。该块I/O能够高达16安培。每个配置的输出通道在4安培浪涌时最大电压降为2.0伏，并能够检测开关故障。

IC660BBD024支持天才总线协议，用于与兼容上述协议的合作伙伴设备通信。具体来说，总线控制器如IC66*CBB902或CBB 903，任何版本;或型号IC66*CBB900或CBB901版本1.3或更高版本可使用。此外，它也可以配置使用IC66*HHM501手持监视器。对于总线交换模块(BSM)， IC66*BSM021与IC660BBD024块I/O兼容。

IC660BBD024 I/O模块还可以与2线和3线接近开关一起工作，以及继电器，接触器和灯。前面板上的32个相同的I/O点可以很容易地配置。当与触点连接时，触点旁边相应的LED指示灯会亮起。

GE Fanuc IC660BBD024 I/O模块的块对块隔离等级为850伏。它的最大纹波在12至24伏时为10%，在5伏时为1%。IC660BBD024 I/O模块在12伏时电源差为4毫秒，在24伏时电源差为20毫秒。在砌块安装过程中，应确保正确的搬运。该块带有一个开放的外壳，因此应保持在一个干净的地方，没有空气中的污染物。它可以安装在向上或向下的位置，相邻块之间至少有2英寸的空间。IC660BBD024 I/O模块的工作温度范围为0 ~ 60℃，最大湿度为95%(无凝结湿度)

IC660BBD024 高密度的32点离散I/O块 具有单独可配置的通道作为输入

【英文介绍】

The IC660BBD024 is an intelligent Block I/O module from GE Fanuc. The module is a high-density 32(32) point-discrete I/O block with individually configurable channels as input, output or output with feedback. The module supports source wiring and provides resetable self-protection circuitry and advanced diagnostics.

The IC660BBD024 input features include compatibility with 12/24VDC as an on status signal value. Specifically, for 12VDC, the conduction range is 8-12VDc, while for 24VDC, the conduction range is 18-24VDC. It has an input impedance of 3.3 K ohms and an input processing time of 1.4 ms, subject to configured signal filtering, with a variety of options such as 1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90 or 100ms.

When configured as an output, each channel is capable of providing a 0.5 amp turn-on delay of 0.5 ms and is capable of withstanding a 10 ms maximum inrush current of 4 amps, possibly repeated every 0.5 seconds. The block I/O is capable of up to 16 amps. Each configured output channel has a maximum voltage drop of 2.0 volts at 4 amp surges and is capable of detecting switch failures.

The IC660BBD024 supports the Genius Bus protocol for communicating with partner devices that are compatible with the aforementioned protocols. Specifically, bus controllers such as IC66*CBB902 or CBB 903, any version; Or Model IC66*CBB900 or CBB901 version 1.3 or later available. In addition, it can also be configured using the IC66*HHM501 handheld monitor. For Bus switch modules (BSM), IC66*BSM021 is compatible with IC660BBD024 block I/O.

The IC660BBD024 I/O module can also work with 2-wire and 3-wire proximity switches, as well as relays, contactors, and lights. The 32 identical I/O points on the front panel can be easily configured. When connected to the contact, the corresponding LED indicator next to the contact will light up.

The GE Fanuc IC660BBD024 I/O module has a block-to-block isolation rating of 850 volts. Its maximum ripple is 10% at 12 to 24 volts and 1% at 5 volts. The IC660BBD024 I/O module has a power difference of 4 ms at 12 volts and 20 ms at 24 volts. Ensure proper handling during block installation. The block comes with an open shell, so it should be kept in a clean place, free from pollutants in the air. It can be installed in an up or down position with at least 2 inches of space between adjacent blocks. IC660BBD024 I/O module operating temperature range is 0 ~ 60℃, the maximum humidity is 95%(non-condensation humidity)
