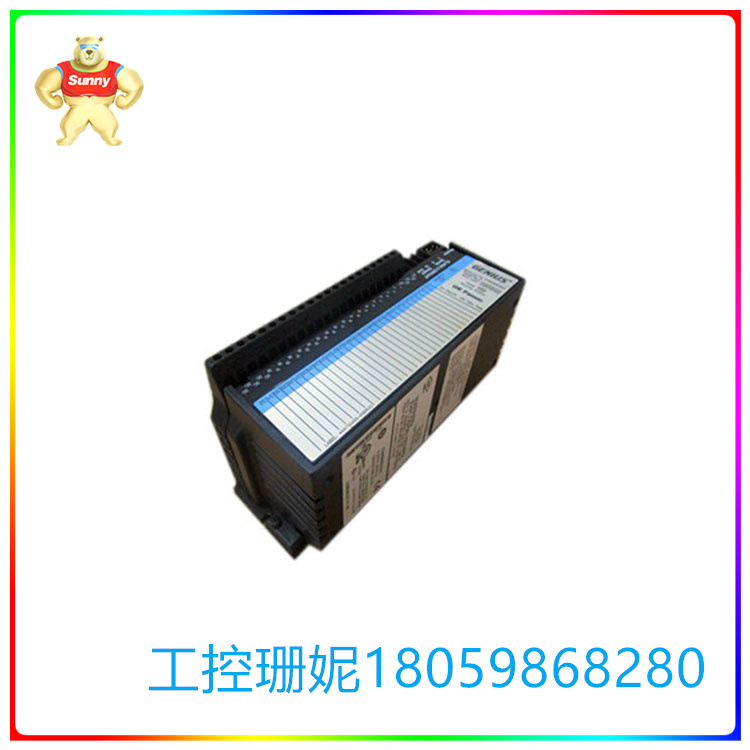

IC660BBD022 分布式I/O模块 该设备是一个独立的单节点I/O站

【产品详情】

IC660BBD022是一款支持Genius协议的模块，是Genius I/O Block系列分布式I/O模块的一部分。该设备是一个独立的单节点I/O站，具有16个支持源布线配置的I/O电路。IC660BBD022具有16个工作在24 / 48 VDC的I/O电路。该模块的每个通道可配置为输入和输出，并能够通过提供的Genius I/O总线终端进行数据交换，允许GE可编程逻辑和自动化控制器(PLC / PAC)以及总线控制器、PC接口模块、人机界面(HMI)等模块以及第三方设备之间的通信。该模块是一种面板安装的独立设备，具有开放式外壳，因此必须安装在外壳内，以提供足够的保护，防止工业污染物。该模块可以远程安装，远离合作设备，最大距离为7500英尺。它还允许其他I/O块的菊花链形成一个Genius I/O网络。该模块的操作可以通过安装在终端组件顶部的手持监视器(HHM)端口进行本地配置。也可以使用主控制器的编程软件远程配置。该模块的输入通道接受12 / 24 VDC标称电压，驱动延迟为1.7 ms。同样，输出通道每个电路产生2安培电流，最大导通延迟为1毫秒。该模块特别由两个组件组成，IC660EBD020电子组件和IC660TBD022端子底座组件。

IC660BBD022 I/O模块是GE发那科公司生产的16路源I/O模块。它运行24伏直流电源，它可以与2线和3线传感器一起使用。这个Genius I-O设备的负载电流为2安培，这个直流供电模块是智能的，它可以很容易地配置，以便用作传感器或执行器设备。它还具有其他可配置的功能，包括输出功率默认值，可选择的输入滤波时间和输出脉冲测试功能。IC660BBD022 I/O块具有诊断和安全措施，可以轻松提醒操作人员运行时间和操作错误。它可以很容易地检测过载、过温、短路、空载和故障开关错误。这种装置便携，体积小巧。它可以节省面板空间，尺寸为高8.83英寸，深4.42英寸，宽3.56英寸。

IC660BBD022源I/O块的前部有16个可配置的I/O电路。安装了I/O Enabled和Unit OK LED，以便在块上有活动时照亮。监控端口也可以连接到手持式编程器。I/O块可以很容易地连接到运行Windows操作系统的个人计算机上。当工作电流为2安培时，IC660BBD022 I/O模块耗散68.8瓦的热量。它产生10%的最大纹波。该块的最大开关频率为每秒一次，具有高涌流电流。输出导通延迟最大值为1毫秒。环境工作温度不应超过60摄氏度。

IC660BBD022 分布式I/O模块 该设备是一个独立的单节点I/O站

【英文介绍】

The IC660BBD022 is a module that supports the Genius protocol and is part of the Genius I/O Block family of distributed I/O modules. The device is an independent single-node I/O station with 16 I/O circuits that support a source wiring configuration. The IC660BBD022 has 16 I/O circuits operating at 24/48 VDC. Each channel of the module can be configured as input and output and is capable of data exchange via the supplied Genius I/O bus terminal, allowing communication between GE programmable logic and automation controllers (PLC/PAC) and modules such as bus controllers, PC interface modules, human machine interfaces (Hmis), and third-party devices. The module is a panel mounted stand-alone device with an open housing, so it must be installed inside the housing to provide adequate protection against industrial contaminants. The module can be installed remotely, away from partner equipment, at a maximum distance of 7,500 feet. It also allows Daisy chains of other I/O blocks to form a Genius I/O network. The operation of the module can be configured locally via a Handheld Monitor (HHM) port mounted on top of the terminal component. It can also be configured remotely using the master controller's programming software. The module's input channel accepts a 12/24 VDC nominal voltage with a drive delay of 1.7 ms. Similarly, the output channel generates 2 amps of current per circuit with a maximum on-off delay of 1 millisecond. The module consists of two components in particular, the IC660EBD020 electronic assembly and the IC660TBD022 terminal base assembly.

The IC660BBD022 I/O module is a 16-channel source I/O module manufactured by GE Fanuc. It runs on a 24 volt DC power supply and it can be used with both 2 - and 3-wire sensors. The load current of this Genius I-O device is 2 amps, this DC power supply module is smart, and it can be easily configured to be used as a sensor or actuator device. It also has other configurable features, including output power defaults, selectable input filtering times, and output pulse testing capabilities. The IC660BBD022 I/O block has diagnostics and security measures to easily alert operators to uptime and operational errors. It can easily detect overload, overtemperature, short circuit, no-load and fault switching errors. The device is portable and compact. It saves panel space and measures 8.83 inches high, 4.42 inches deep and 3.56 inches wide.

The front of the IC660BBD022 source I/O block has 16 configurable I/O circuits. I/O Enabled and Unit OK leds are installed to illuminate when there is activity on the block. The monitoring port can also be connected to a handheld programmer. I/O blocks can be easily connected to personal computers running Windows operating systems. When operating at 2 amps, the IC660BBD022 I/O module dissipates 68.8 watts of heat. It produces a 10% maximum ripple. The block has a maximum switching frequency of once per second and a high inrush current. The maximum output turn-on delay is 1 ms. Ambient operating temperature should not exceed 60 degrees Celsius.

IC660BBD022 分布式I/O模块 该设备是一个独立的单节点I/O站
