IC660BBA103 热电偶输入块 该模块输入通道的导线
【产品详情】

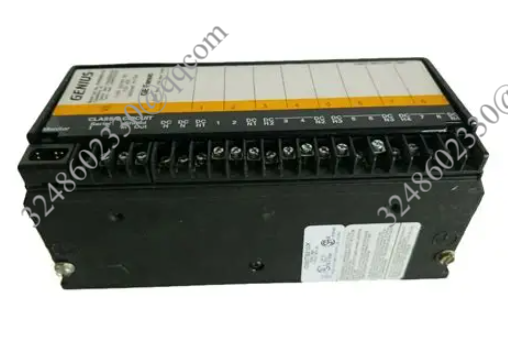

IC660BBA103是一个天才I/O块。这个I/O块是一个热电偶输入块,能够接受来自各种热电偶传感器和毫伏信号的信号。具体来说,热电偶J、K、T、E、B、R、S和N型传感器可以是该模块输入通道的导线,也可以是25.0mV到+150mV范围的毫伏信号,用于电压测量。该输入块有六(6)个输入通道,分为三(3)组,每组有两(2)个输入通道。
该模块的电压测量性能在25摄氏度下具有8 Hz的精度,典型分辨率为+/-10 μ V误差,最大分辨率为+/-20 μ V。它具有+/-2µV /°C的典型带宽输入放大器滤波器。对于热电偶操作,模块的性能受到所使用的补偿类型的影响。当与内部冷端测量一起使用时,测量范围为0-60摄氏度,分辨率小于+/-0.01℃。当与外部冷端测量一起使用时,测量范围为-25 - +150℃,分辨率为+/-0.01℃。
IC660BBA103热电偶输入模块的更新时间为2.0秒,典型和最大更新速率为3.0秒。它能够在不到5.0秒的时间内检测开线连接。它还能够开线,超量程,欠量程,高报警,低报警和内部故障诊断。
IC660BBA103输入模块有“Unit OK”和“I/O Enabled”状态LED指示灯。此外,它具有1500v的块对块隔离和300V的组对组隔离。该模块由115VAC/125VDC的外部电源供电。
IC660BBA103热电偶输入模块能够测量温度,滤波,放大,电压到频率转换和补偿水平。其诊断设施可用于查找热电偶输入的故障连接,也称为开线诊断。在考虑极性的同时,热电偶导线可以通过使用相同合金的连接器型卷曲引脚轻松连接到6个输入通道。手持式监视器提供了配置模块的功能,并在其配置保护模式中防止对配置进行不必要的更改。
IC660BBA103 热电偶输入块 该模块输入通道的导线
【英文介绍】
The IC660BBA103 is a Genius I/O block. This I/O block is a Thermocouple Input block that is capable of accepting signals from a variety of Thermocouple sensors and millivolt signals. Specifically, Thermocouple type J, K, T, E, B, R, S, and N sensors may be wires to the input channels of this block as well as millivolt signals with range of 25.0mV to +150mV for voltage measurement. This input block has Six (6) input channels, grouped into Three (3), with each group having Two (2) input channels.
The module’s performance with voltage measurement exhibits an accuracy of 8 Hz at 25 Degree Celsius with typical resolution of +/-10µV error and maximum of +/-20µV. It has a typical bandwidth input amplifier filter of +/-2µV per °C. For Thermocouple operation, the module’s performance is affected by the type of compensation used. When used with internal cold junction measurement, measurement range is 0-60 Degree Celsius with resolution of less than +/-0.01°C. When used with external cold junction measurement, measurement range is -25 - +150 Degree Celsius with resolution of +/-0.01°C.
The IC660BBA103 Thermocouple input block has an update time of 2.0 seconds, typical and maximum update rate of 3.0 Seconds. It is capable of detecting open wire connection in less than 5.0 seconds. It is also capable of Open Wire, Overrange, Underrange, High Alarm, Low Alarm, and Internal Fault diagnostics.
The IC660BBA103 input block has status LED indicators of Unit OK and I/O Enabled. Additionally, it has block to block isolation of 1500 V and group to group isolation of 300V. This module is powered by an external supply voltage of 115VAC/125VDC.
The IC660BBA103 Thermocouple Input Block is capable of temperature measurement, filtering, amplification, voltage to frequency conversion, and compensation levels. Its diagnostic facilities can be used to find a faulty connection to thermocouple inputs which are also known as open-wire diagnostics. Thermocouple wires can be easily connected to the 6 input channels by using connector-type crimp pins of the same alloy while considering the polarity. The hand-held monitor provides the facilities to configure the module and prevent unwanted changes to the configuration in its configuration protection mode.
