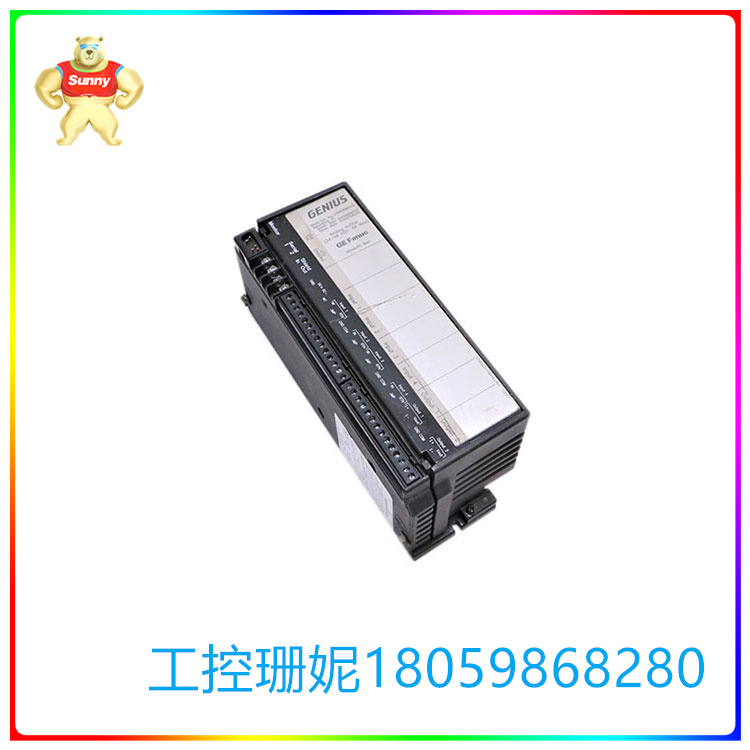

IC660BBA100  I/O模块产品 有4个输入电路和2个输出电路

【产品详情】

IC660BBA100模拟I/O模块属于GE Fanuc系列90-30 I/O模块产品线。它有4个输入电路和2个输出电路。该电压和电流额定模拟I/O模块提供5个模拟功率范围0至10伏DC， +/-10伏DC， +/-5伏DC, 0至5伏DC和4至20毫安。IC660BBA100模拟I/O块还提供高达1024毫秒的可选输入滤波器时间。如果通信进程中断，每个输出都可以保留最后状态或默认值。它具有向后兼容早期版本，也兼容GE系列IC697, IC600和IC550 plc。模块的电子块可以在不改变模块现场接线和配置的情况下进行更换。

IC660BBA100模拟I/O模块具有12位模拟数字转换器，可将输入信号电流或电压转换为数字值。转换后的信号可以被缩放成整数，以便在工程单位中表示它。输出电路连接到一个12位数模转换器，该转换器将处理后的值转换为电压或电流输出信号。IC660BBA100模拟I/O模块还可以自动校准2个转换器，以确保性能的准确性。在每次总线扫描中，它传输8字节的输入数据和4字节的输出数据。用户可以通过手持式监视器以整数形式监视输入和输出值。将交流电源连接到6、7端子上，给模块上电。请确保与电源连接器串联安装250伏和1/8安培额定保险丝。面板上的2个状态led提供模块的状态。

IC660BBA100  I/O模块产品 有4个输入电路和2个输出电路

【英文介绍】

The IC660BBA100 analog I/O module belongs to the GE Fanuc series 90-30 I/O module product line. It has four input circuits and two output circuits. The voltage and current rated analog I/O module offers five analog power ranges of 0 to 10 volt DC, +/-10 volt DC, +/-5 volt DC, 0 to 5 volt DC and 4 to 20 MA. The IC660BBA100 analog I/O block also offers optional input filter times up to 1024 ms. If the communication process is interrupted, each output can retain its last state or default value. It is backward compatible with earlier versions and is also compatible with the GE series IC697, IC600 and IC550 PLCS. The electronic block of the module can be replaced without changing the field wiring and configuration of the module.

The IC660BBA100 analog I/O module features a 12-bit analog-to-digital converter that converts input signal current or voltage to a digital value. The converted signal can be scaled to integers in order to represent it in engineering units. The output circuit is connected to a 12-bit digital-to-analog converter that converts the processed value into a voltage or current output signal. The IC660BBA100 analog I/O module can also automatically calibrate 2 converters to ensure accurate performance. In each bus scan, it transmits 8 bytes of input data and 4 bytes of output data. The user can monitor the input and output values in integer form through the handheld monitor. Connect the AC power supply to terminals 6 and 7 to power on the module. Be sure to install 250 volt and 1/8 amp rated fuses in series with the power connector. The 2 status leds on the panel provide the status of the module.

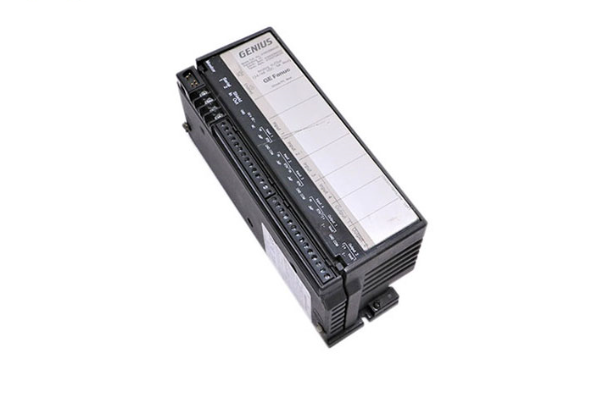

IC660BBA100  I/O模块产品 有4个输入电路和2个输出电路
