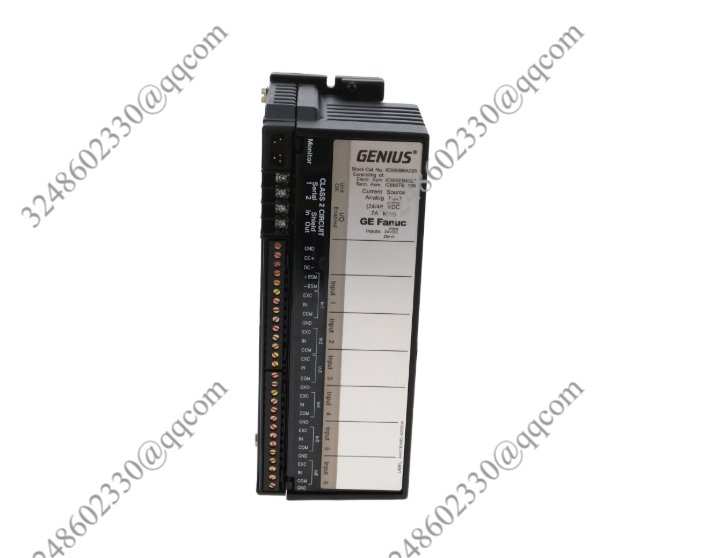

IC660BBA026 内置六6个模拟输入通道

【产品详情】

IC660BBA026属于独立Block模块的Genius I/O。目前由艾默生自动化生产，GE发那科自动化已被前者收购。IC660BBA026保留了其功能，内置六(6)个模拟输入通道，支持电流源布线，分辨率为6µA。

IC660BBA026作为Genius I/O块系统的一部分，内置了Genius Bus通信接口，使该模块能够独立作为一个完整的远程I/O模块，能够通过自身配置向主控制器发送和接收I/O数据。它具有无机架设计，无需使用背板或机箱，为可用的安装方法提供最大的灵活性。这个I/O块可以安装在右侧向上或上下颠倒，在一个外壳内，提供对空气，工业污染物的保护。

IC660BBA026可配置为与同一台多插拔网络连接。如果与该模块的多个实例或同一产品系列一起使用，IC660BBA026必须相隔2英寸。此外，终端电阻必须安装在第一个和最后一个节点上，跨越串行1和串行2端子。

IC660BBA026输入通道不需要校准操作。它配备了软件可配置的诊断和。这些诊断包括低报警和高报警报告、超量程和过量程检测、断线检测和内部故障报告。该模块还提供了软件选择的输入转换时间范围从16.6 ms到400 ms。

IC660BBA026电流源输入模块是GE发那科的6输入模拟电流源模块。它可用于与输出4至20毫安模拟信号电流的设备接口。B相手持式监视器可以用来配置模块很容易。它的电压-频率转换器特性提供了一个基于所接收的模拟电流的数字信号。用户可以对各个输入电路设置上下限报警限制。输入电路由24伏额定电流回路组成，可提供25毫安电流。IC660BBA026电流源输入块具有手持式监视器，提示告警限制和诊断错误。它还具有从监视器中清除旧故障消息的功能。

IC660BBA026电流源输入块也兼容冗余PLC系统，系列90-30 PLC，系列6 PLC和系列5 PLC。它的诊断功能报告输入电流水平低于2毫安。该模块的典型热漂移是每摄氏度70 PPM。在安装过程中，请确保在块之间留出2英寸或更多英寸的空间，以便进行适当的冷却。该块可以通过钻适当的螺栓孔倒置或右侧向上安装。一个单独的安装套件，配件也与IC660BBA06模块发货。接地端子称为端子5，连接到块机箱，可用于块安全。115伏交流电源或125伏直流电源的电源应接在分座的H端子上，中性点应接在N端子上。

IC660BBA026 内置六6个模拟输入通道

【英文介绍】

IC660BBA026 belongs to Genius I/O of an independent Block module. Currently manufactured by Emerson Automation, GE Fanuc Automation has been acquired by the former. The IC660BBA026 retains its functionality with six (6) built-in analog input channels, support for current source wiring, and a resolution of 6µA.

As part of the Genius I/O block system, the IC660BBA026 has a built-in Genius Bus communication interface, enabling the module to stand alone as a complete remote I/O module, capable of sending and receiving I/O data to the master controller through its own configuration. It has a rackless design that eliminates the need for a backplane or chassis, providing maximum flexibility for available mounting methods. This I/O block can be mounted on the right side up or upside down, inside a housing that provides protection against air, industrial pollutants.

The IC660BBA026 can be configured to connect to the same multi-plug network. If used with multiple instances of the module or the same product family, the IC660BBA026 must be 2 inches apart. In addition, the terminal resistor must be installed on the first and last node, across the serial 1 and serial 2 terminals.

The IC660BBA026 input channel does not require calibration operations. It comes with software configurable diagnostics and. These diagnostics include low - and high-alarm reporting, over - and over-range detection, line break detection, and internal fault reporting. The module also provides a software-selected input conversion time range from 16.6 ms to 400 ms.

The IC660BBA026 current source input module is GE Fanuc's 6-input analog current source module. It can be used to interface with devices that output 4 to 20 mA analog signal currents. The B-phase handheld monitor can be used to configure modules easily. Its voltage-to-frequency converter features provide a digital signal based on the received analog current. Users can set upper and lower alarm limits for each input circuit. The input circuit consists of a 24-volt rated current loop that provides 25 mA. The IC660BBA026 current source input block features a handheld monitor that prompts for alarm limits and diagnostic errors. It also has the ability to clear old fault messages from the monitor.

The IC660BBA026 current source input block is also compatible with redundant PLC systems, series 90-30 PLC, Series 6 PLC and Series 5 PLC. Its diagnostic function reports input current levels below 2 mah. The typical thermal drift of this module is 70 PPM per degree Celsius. During installation, be sure to leave 2 or more inches of space between the blocks for proper cooling. The block can be mounted upside down or right side up by drilling the appropriate bolt holes. A separate mounting kit, accessories are also shipped with the IC660BBA06 module. The ground terminal, called Terminal 5, is connected to the block chassis and can be used for block security. The power supply of the 115 volt AC power supply or 125 volt DC power supply should be connected to the H terminal of the separate seat, and the neutral point should be connected to the N terminal.

IC660BBA026 内置六6个模拟输入通道
