IC660BBA024 额定电流源I/O模块

【产品详情】

IC660BBA024电流源I/O模块是一款24 ~ 48伏直流额定电流源I/O模块，属于GE Fanuc系列90-30 I/O模块产品线。它有助于连接提供4毫安到20毫安额定模拟信号的设备。该模块的一些功能包括4个输入和2个输出，隔离通道和工厂校准。IC660BBA024电流源I/O块上的每个输入提供24伏电流环路电源。输出通道还提供两个4至20毫安额定电流回路。所有的输入和输出电路提供线性缩放，有助于产生工程单位以及诊断设施。

IC660BBA024电流源I/O模块尺寸为22.44 x 8.48 x 9.93厘米，重4磅。4个独立输入的规格是在25摄氏度下满量程读数精度的0.1%，输入分辨率为1微安，输入转换时间为16.6毫秒至400毫秒，电流范围为4至20毫安。2个输出电路的规格包括6微安的输出分辨率，4至20毫安的电流范围，6至8毫秒的输出更新频率，以及0.15%的满量程读数精度在25摄氏度。它使用电压-频率转换器将模拟读数转换为数字值。这些独立的输出在电上都是相通的。IC660BBA024电流源I/O块支持直连24 ~ 48v直流版本的总线交换模块。为了使模块上电，必须在DC+和DC-端子上连接24 ~ 48伏的直流电源。

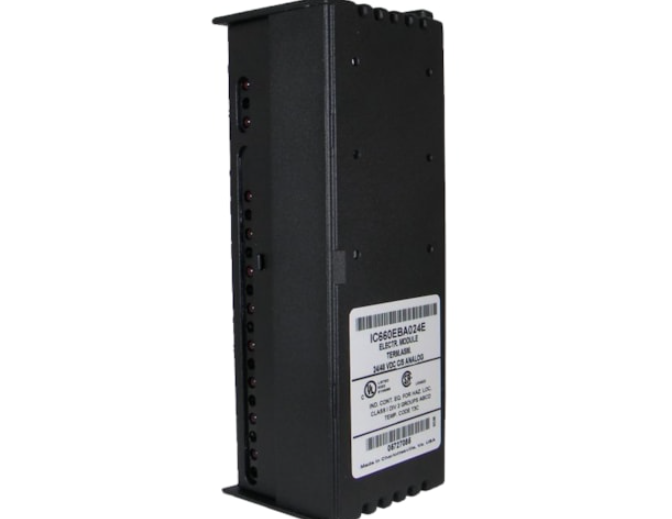

IC660BBA024 额定电流源I/O模块

【英文介绍】

The IC660BBA024 current source I/O module is a 24 to 48 volt DC rated current source I/O module belonging to the GE Fanuc series 90-30 I/O module product line. It helps connect devices that provide analog signals rated from 4 mah to 20 mah. Some of the features of the module include 4 inputs and 2 outputs, isolated channels and factory calibration. IC660BBA024 Current source Each input on the I/O block provides 24 volt current loop power. The output channel also offers two current circuits rated from 4 to 20 mA. All input and output circuits provide linear scaling, helping to generate engineering units as well as diagnostic facilities.

The IC660BBA024 current source I/O module measures 22.44 x 8.48 x 9.93 cm and weighs 4 pounds. The specification for the four independent inputs is 0.1% of full scale reading accuracy at 25 degrees Celsius, input resolution of 1 microamp, input conversion time of 16.6 ms to 400 ms, and current range of 4 to 20 mA. The specifications of the 2 output circuits include 6 microamps of output resolution, a current range of 4 to 20 mA, an output update frequency of 6 to 8 ms, and a full-scale reading accuracy of 0.15% at 25 degrees Celsius. It uses a voltage-to-frequency converter to convert analog readings to digital values. These independent outputs are all electrically connected. IC660BBA024 Current source I/O blocks Support direct connection to 24 to 48v DC bus switch modules. To power on the module, connect 24 to 48 volts of DC power to the DC+ and DC-terminals.

IC660BBA024 额定电流源I/O模块
