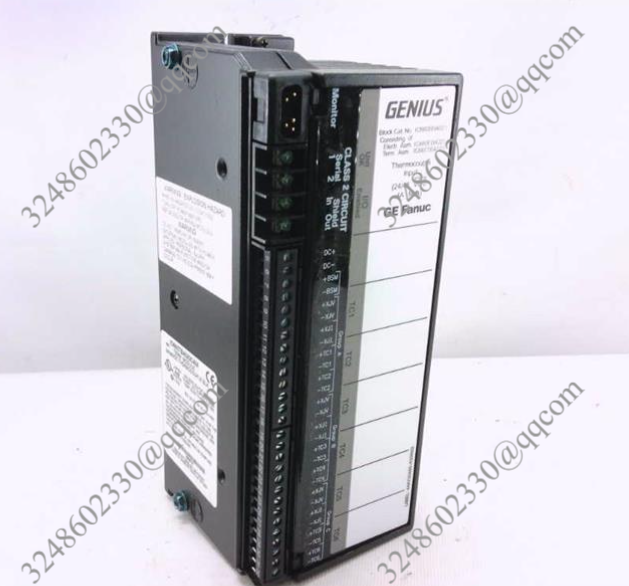

IC660BBA023 6通道热电偶输入模块

【产品详情】

IC660BBA023热电偶模块是GE发那科设计的24至48伏直流额定6通道热电偶输入模块。在工作过程中，最大散热功率为9w。电源的额定电压是24至48伏直流，它有10%的最大纹波与10毫秒的电源断电时间。该模块上的6个输入电路分为3组，每组由热电偶输入电路和远端冷端补偿输入组成。IC660BBA023热电偶输入模块上的输入电压测量范围为-25 mV至150 mV, 25摄氏度时输入通道的精度为8赫兹。

IC660BBA023热电偶块在不到5秒的时间内响应开线检测。它还有2秒的典型输入更新时间和3秒的最大更新时间。内部冷端输入测量0至60摄氏度的温度范围，分辨率小于+/- 0.01摄氏度，精度为+/- 0.1摄氏度。该模块的处理器负责将冷端温度值转换为电压值。兼容GE IC697系列plc, CPU为IC697CPU731、IC697CPU771及以后版本，编程软件为2.02及以后版本。在安装过程中，确保有足够的气流进行风冷。环境工作温度范围为0℃~ 60℃，相对湿度范围为5% ~ 95%。24 ~ 48v直流电源可接在IC660BBA023热电偶模块的5、6端子上。

IC660BBA023 6通道热电偶输入模块

【英文介绍】

The IC660BBA023 thermocouple module is a 24 - to 48-volt DC rated 6-channel thermocouple input module designed by GE Fanuc. In the working process, the maximum heat dissipation power is 9w. The rated voltage of the power supply is 24 to 48 volts DC, it has a maximum ripple of 10% with a power outage time of 10 milliseconds. The 6 input circuits on the module are divided into 3 groups, each group consists of a thermocouple input circuit and a remote cold compensation input. The input voltage on the IC660BBA023 thermocouple input module is measured from -25 mV to 150 mV, with an accuracy of 8 Hz for the input channel at 25 degrees Celsius.

IC660BBA023 thermocouple block responds to on-line detection in less than 5 seconds. It also has a typical input update time of 2 seconds and a maximum update time of 3 seconds. The internal cold end input measures a temperature range of 0 to 60 degrees Celsius with a resolution of less than +/- 0.01 degrees Celsius and an accuracy of +/- 0.1 degrees Celsius. The processor of the module is responsible for converting the cold end temperature value to the voltage value. Compatible with GE IC697 series plc, the CPU is IC697CPU731, IC697CPU771 or later, and the programming software is 2.02 or later. During installation, ensure that there is sufficient air flow for air cooling. The ambient operating temperature ranges from 0 ° C to 60 ° C, and the relative humidity ranges from 5% to 95%. The 24 to 48v DC power supply can be connected to the 5 and 6 terminals of the IC660BBA023 thermocouple module.

IC660BBA023 6通道热电偶输入模块
