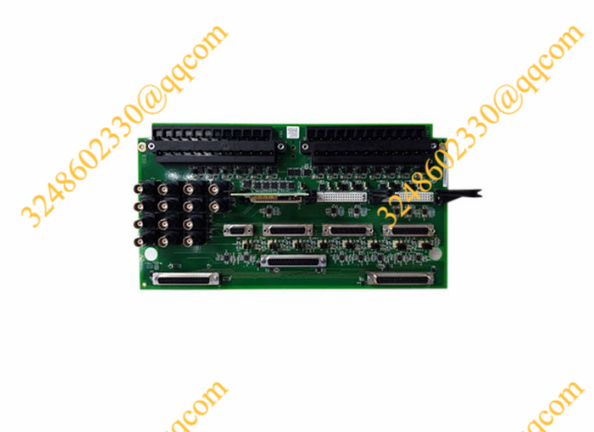

531X121PCRAHG3 将电缆连接到新板上的相同连接器上
【产品详情】
GE电源连接板531X121PCRAHG3是多块原设备电源连接板的更新部件。531X121PCRAHG3板可以配置为多个电源连接板提供所需的电压。使用板上的两个跳线配置它与原始板兼容。板中包含设置两个跳线所需的信息。
一旦确定了跳线设置，请将电路板从装运的纸箱中取出。为防止引脚弯曲、连接器断裂或其他部件损坏，请只握住单板的两侧。取下防护袋，将防护袋平铺在干净干燥的地面上，例如工作台上。用你的手指或钳子移动跳线，以覆盖正确的引脚。不要放下跳绳或强迫跳绳越过球钉。你可能会把针弄弯或折断。另外，如果你在驱动器中丢失了一个跳线，你必须找回它，以避免损坏驱动器组件。
打开固定旧板的标签，并仔细注意电缆连接的位置。将电缆连接到新板上的相同连接器上，然后将板安装在驱动器中。通过压紧板卡来固定板卡。
新板可能是旧板的更新版本。即使板子看起来不同，新板子在驱动器中的行为也是一样的。
531X121PCRAHG3 将电缆连接到新板上的相同连接器上
【英文介绍】
The GE power connection board 531X121PCRAHG3 is an updated component of the original power connection board. The 531X121PCRAHG3 board can be configured to provide the required voltage to multiple power strips. Configure it to be compatible with the original board using two jumpers on the board. The board contains the information needed to set up the two jumpers.
Once the jumper Settings are determined, remove the board from the shipped carton. To prevent pin bending, connector breakage, or other component damage, hold only the two sides of the board. Remove the bag and lay it flat on a clean, dry surface, such as a work surface. Move the jumper with your fingers or pliers to cover the correct pins. Do not drop the jump rope or force it over the peg. You might bend or break the needle. Also, if you lose a jumper in the drive, you must retrieve it to avoid damaging the drive components.
Open the label that holds the old board in place and pay careful attention to where the cable is connected. Connect the cable to the same connector on the new board, then mount the board in the drive. The board is secured by pressing it down.
531X121PCRAHG3 将电缆连接到新板上的相同连接器上
【其他型号推荐】
| BENTLY | 3500/05-01-03-00-00-00 | BENTLY | 136719-01 | BENTLY | 3500/42M 140734-02 |
| BENTLY | 128229-01 | BENTLY | 3500/92 136188-02 通讯模块 | BENTLY | 3500/53M超速模块 |
| BENTLY | 128229-01 | BENTLY | 3500/92 136180-01 | BENTLY | 990-04-50-01-00 |
| BENTLY | 128229-01 | BENTLY | 146031-01 | BENTLY | 136188-01 |
| BENTLY | 3500/42M 140734-02 | BENTLY | 135489-04 | BENTLY | 3500/15 127610-01 |
| BENTLY | 3500/33-01-00 | BENTLY | 3500/33 149986-01 继电器模块 | BENTLY | 125840-01 |
| BENTLY | 128229-01 | BENTLY | 149992-01 | BENTLY | 330180-51-00 |
| BENTLY | 135137-01 | BENTLY | 146031-01 | BENTLY | 135473-01 |
| BENTLY | 133396-01 | BENTLY | 135489-01 | BENTLY | 135489-01 |
| BENTLY | 146031-01 | BENTLY | 135473-01 | BENTLY | 3500/05-01-02-00-00-00 |
| BENTLY | 146031-01 | BENTLY | 149992-01 | Bently | 125720-01 |
| BENTLY | 3500/54-03-00 | BENTLY | 18745-03 | BENTLY | 146031-01 |
| BENTLY | 146031-01 | BENTLY | 3500/15-05-05-00 | BENTLY | 3500/25 149369-01 |
| BENTLY | 135137-01 | BENTLY | 125840-02 | BENTLY | 125800-01 |
