531X111PSHSWG2为驱动器提供了三个可接受的电压源
【产品详情】

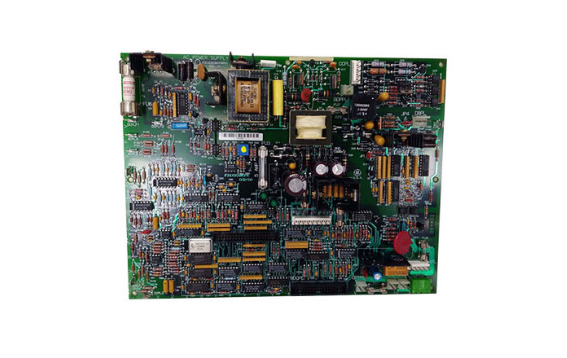

531X111PSHSWG2卡是通用电气公司生产的电机现场控制和电源板。作为GE 531X系列替换板的一员，该卡可以安装到GE系列的一系列驱动器中。安装此卡可提供正常驱动功能所需的电源。由于该板是作为G2版本开发的，因此当安装在外部励磁器中时，它的功能最好。
安装这个电源板为驱动器提供了三个可接受的电压源。531X111PSHSWG2可以产生5 VDC, 15 VDC和24 VDC的额定电压。驱动器的电机场电路也从电路板的集成脉冲变压器接收电源。许多控制选项和系统校准可以从卡上执行。三个板载继电器允许用户执行系统控制选项。这些可以在卡上识别为K1 (RUN)， K2 (MAX)和K3 (FAULT)。该卡还包含三个电位计和五个跳线。电路和电流反馈调整由电位器执行，而对电流和反馈信号的调整由跳线执行。
通用电气提供了一些安装参数，在开始设备安装之前应该检查这些参数。为确保设备不遭受任何可预防的损坏，卡只能由有资格的人员操作。请务必查看设备的手册和数据表，以获得全面的安装和接线指南。该设备的制造商通用电气(General Electric)最初为该卡提供技术支持。
531X111PSHSWG2为驱动器提供了三个可接受的电压源
【英文介绍】
The 531X111PSHSWG2 card is a motor field control and power supply board manufactured by General Electric. As a member of GE’s 531X series of replacement boards, this card can be installed into an array of drives across the GE family. Installing this card provides the power supply necessary for proper drive function. Since this board was developed as a G2 version, it functions best when installed in external exciters.
Installing this power board provides the drive with three acceptable voltage sources. 531X111PSHSWG2 can produce voltages rated at 5 VDC, 15 VDC, and 24 VDC. The motor field circuitry of the drive also receives a supply from the board’s integrated pulse transformer. A number of control options and system calibrations can be performed from the card. Three onboard relays allow users to execute system control options. These can be identified on the card as K1 (RUN), K2 (MAX), and K3 (FAULT). The card also contains three potentiometers and five jumpers. Circuit and current feedback adjustments are performed with the potentiometers while adjustments to the current and feedback signals are performed by the jumpers.
General Electric provides a number of installation parameters that should be reviewed before beginning device installation. To ensure the device does not suffer any preventable damages, the card should only be handled by qualified personnel. Be sure to review the device’s manual and datasheet for a comprehensive installation and wiring guide. The device’s manufacturer, General Electric, originally provided the card with technical support.
531X111PSHSWG2为驱动器提供了三个可接受的电压源
