531X111PSHASG2 为系统提供运行所需的电源
【产品详情】

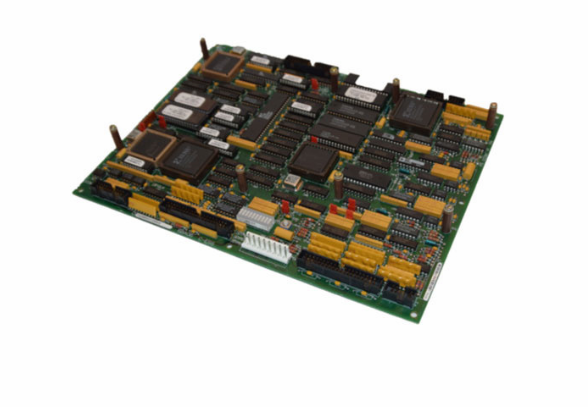

通用电气公司的531X111PSHASG2是一款电机现场控制和电源板。它是为193X系列替换驱动板而设计的。通用电气家族的一系列驱动器和激励器都可以在其机柜中接受该板。作为驱动系统的重要组成部分，该卡提供驱动完全运行所需的电源。由于这张卡是G2版本的板，它被开发为与外部激励器一起使用。
该卡是驱动器的一个组成部分，因为它为系统提供运行所需的电源。531X111PSHASG2可以生产5 VDC, 15 VDC和24 VDC的额定电源。卡的集成脉冲变压器为驱动器中的电机场电路供电。这张卡片上有三个继电器。其中包括RUN (K1)、MAX (K2)和FAULT (K3)。每个继电器提供不同的系统控制选项。电路板上还集成了三个电位器。它们被标记为P1 (FIELD SCALE)， P2 (CFB ZERO)和P3 (CFB ADJUST)。所有这些都为用户提供了校准或调整电路或电流反馈的能力。该板由五个可配置跳线组成。这些跳线用于允许用户选择和调整电流和反馈信号。
驱动板提供了许多制造商概述的安装参数。满足这些要求将减少驱动器及其电路板发生损坏或缺陷的一些风险。作为驱动器的一个重要特征，请勿允许任何未经培训的人员处理或安装此板。只有那些熟悉531X111PSHASG2的人才可以安装它。请查阅相应设备手册和数据表中的安装和接线说明。通用电气是该板最初的技术支持提供商。
531X111PSHASG2 为系统提供运行所需的电源
【英文介绍】
General Electric’s 531X111PSHASG2 is a motor field control and power supply board. It was designed for the 193X series of replacement drive boards. An array of drives and exciters across the GE family can accept this board in its cabinet. A vital component of the drive system, this card provides the power supplies required by the drive to operate fully. Since this card is a G2 version of the board it was developed to be used with an external exciter.
This card is an integral component of the drive as it provides the system with the power required to operate. 531X111PSHASG2 can produce rated supplies of 5 VDC, 15 VDC, and 24 VDC. The card’s integrated pulse transformer powers the motor field circuitry found in the drive. There are three relays found on this card. These include RUN (K1), MAX (K2), and FAULT (K3). Each relay provides a different system control option. There are also three potentiometers integrated onto the board. These are labelled as P1 (FIELD SCALE), P2 (CFB ZERO), and P3 (CFB ADJUST). All provide users with the ability to calibrate or adjust circuits or current feedbacks. The board is completed with five configurable jumpers. These jumpers are used to allow users to select and adjust current and feedback signals.
Drive boards are provided with a number of manufacturer outlined installation parameters. Meeting these will reduce some risks of damages or defects happening to the drive and its boards. As an important feature of the drive, do not permit any untrained personnel to handle or install this board. Only those familiar with the 531X111PSHASG2 should be allowed to install it. Please review the installation and wiring directions found in the corresponding device manual and datasheet. General Electric was the original technical support provider for this board.
531X111PSHASG2 为系统提供运行所需的电源
【其他型号推荐】
| GE | IS200STCIH6AED | GE | IS230TNSVH3A | GE | DS200TCCAG1 BAA |
| GE | IS200TBAIH1CCC | GE | IS230TVBAH2A | GE | DS200TCEAG1 BNE |
| GE | IS200TBCIH2CAA | GE | IS420ESWBH3A | GE | IS210AEBIH3BEC |
| GE | IS200TBCIS2CCD | GE | IS420ESWBH2A | GE | IS210AEBIH3BED |
| GE | IS200TDBTH6ABC | GE | IS420UCSCH2A-C-V0.1-A | GE | IS210AEDBH4AGD |
| GE | IS200TDBTH6ACD | GE | IS420UCSCH1A | GE | IS210AEPSG1AFC |
| GE | IS200TPROH1BCB | GE | DS200ACNAG1ADD | GE | IS210BPPBH2BMD |
| GE | IS200TPROS1CBB | GE | DS200ADGIH1AAA | GE | IS210SAMBH2AA |
| GE | IS200TREAH2AED | GE | DS200ADPBG1ABB | GE | IS210WSVOH1AE |
| GE | IS200TREGH1BEC | GE | DS200CPCAG1ABB | GE | IS215ACLEH1BB |
| GE | IS200TRPAH2AHE | GE | DS200CTBAG1ADD | GE | IS215UCVEH2AB |
| GE | IS200TSVCH1AJE | GE | DS200DCFBG1 BGB | GE | IS215UCVEH2AE |
| GE | IS200TTURH1CFD | GE | DS200DCFBG1BLC | GE | IS215UCVEM10A |
| GE | IS200TVBAH2ACC | GE | DS200DMCBG1AED | GE | IS215VPROH1BD |
| GE | IS200TVIBH2BBB | GE | DS200DMCBG1AKG | GE | IS220PAICH1A |
| GE | IS200VAICH1DAB | GE | DS200DPCBG1AAA | GE | IS220PAICH2A |
| GE | IS200VCRCH1B | GE | DS200DSPCH1ADA | GE | IS220PAOCH1A |
