531X111PSHARG3是一个电机现场控制和电源板
【产品详情】

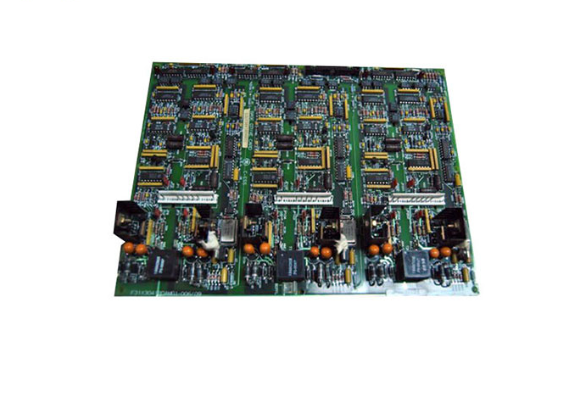

531X111PSHARG3卡是一个电机现场控制和电源板。它是由通用电气为其531X替换板系列制造的。GE公司开发的驱动器和励磁器都可以安装此卡。驱动所需的电源由这张卡提供。电机场电路也可以用这个装置供电。这是G3版本的主板,这意味着交流线路的MOVs安装在外部,而不是在主板上。
驱动操作依赖于531X111PSHARG3电源板正常工作。该卡可提供5 VDC、15 VDC和24 VDC三种额定电源。卡上的集成脉冲变压器为驱动器中的电机场电路提供电源。设备控制通过三个板载继电器执行。这三个是由K1 (RUN), K2 (MAX)和K3 (FAULT)组成。电路板上还有另外三个电位器。其中包括P1 FIELD SCALE, P2 CFB ZERO和P3 CFB ADJUST,所有这些都为用户提供了调节和校准电流反馈和电路的能力。卡中的反馈和电流信号可以使用卡上的五个可配置跳线进行调整。
通用电气提供了一组用户应满足的安装参数。遵循这些指导方针可以降低设备损坏的风险。531X111PSHARG3只能由经过培训的有资格操作此类电路板的人员安装。在与电路板相关的手册和数据表中可以找到图解的布线指南。最初,通用电气为这块板提供技术支持。
531X111PSHARG3是一个电机现场控制和电源板
【英文介绍】
The 531X111PSHARG3 card is a motor field control and power supply board. It was manufactured by General Electric for their 531X replacement board series. Drives and exciters developed by GE can have this card installed. The drive’s required power supply is provided by this card. Motor field circuitry can also be powered with this device. This is a G3 version of the board, meaning that the MOVs for the AC line are mounted externally rather than on the board.
Drive operation is reliant on the 531X111PSHARG3 power supply board functioning properly. This card can produce three power supplies rated at 5 VDC, 15 VDC, and 24 VDC. An integrated pulse transformer on the card provides power to the motor field circuitry in the drive. Device controls are performed via the three onboard relays. The three are comprised of K1 (RUN), K2 (MAX), and K3 (FAULT). An additional three potentiometers are also found on the board. These include P1 FIELD SCALE, P2 CFB ZERO, and P3 CFB ADJUST, with all providing users with the ability to adjust and calibrate current feedbacks and circuits. Feedback and current signals in the card can be adjusted using the the five configurable jumpers found on the card.
General Electric includes a set of installation parameters that users should meet. Risks of damages to the device are lessened by following these guidelines. 531X111PSHARG3 should only be installed by trained personnel that are qualified to handle boards like this. An illustrated wiring guide can be found in the manual and datasheet associated with the board. Originally, General Electric provided technical support for this board.
