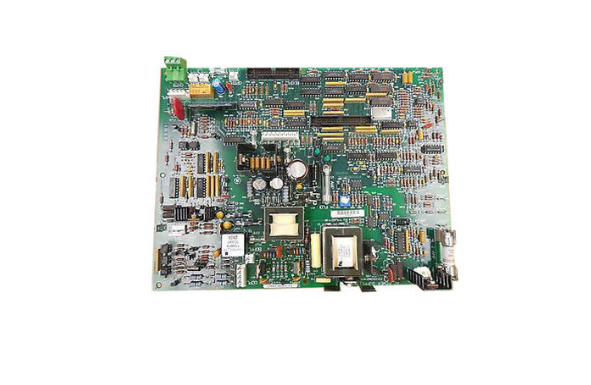

531X111PSHAPG3具有用于电机场电路的脉冲变压器
【产品详情】
GE端子板继电器卡531X111PSHAPG3提供驱动使用的5v dc、15v dc和24v dc电流。它还具有用于电机场电路的脉冲变压器。在安装GE端子板继电器卡531X111PSHAPG3时，需要使用手动工具和测试设备，这些工具和测试设备必须符合一定的最低标准，以确保安装人员或服务人员的安全。
为了安装电路板，你必须有测试设备来测试驱动器中电流的存在。在所有电源从驱动器中移除后使用此测试设备，以确保所有电源都已移除。电容器是电路板上的元件，在正常工作时存储功率并释放电流。在触摸电路板之前，必须等待几秒钟，直到电源从电路板上耗尽。确保测试设备工作正常，并已校准以检测驱动器中的电流。检查连接在测试仪上的探头，确保它们牢固地连接在一起。
拆卸和拧紧固定3TB组件的螺钉时，需要使用螺丝刀。该螺丝刀必须经过电气工程批准。有些螺丝刀的材料看起来是绝缘材料，但实际上并不是绝缘的。此外，绝缘材料可能磨损或丢失。不要使用绝缘没有磨损或破裂的工具，只有经过批准的工具才有绝缘，你可以确定是防震的。
531X111PSHAPG3具有用于电机场电路的脉冲变压器
【英文介绍】
The GE Terminal Board Relay Card 531X111PSHAPG3 supplies the 5 V dc, 15 V dc, and 24 V dc current used by the drive. It also features the pulse transformer for the motor field circuitry. The installation of the GE Terminal Board Relay Card 531X111PSHAPG3 requires the use of hand tools and testing equipment that must meet some minimum standards to ensure the safety of the installers or servicers.
For the installation of the board you must have testing equipment to test for the presence of electrical current in the drive. Use this testing equipment after all power is removed from the drive to ensure all power is removed. Capacitors are components in the board that during normal operation store power and release the current. You must wait a few seconds for the power to drain from the board before you touch the board. Make sure the testing device is working properly and is calibrated to detect the electrical current in the drive. Inspect the probes attached to the tester and make sure they are securely attached.
Screwdrivers are used during the procedure to remove and tighten screws that secure the 3TB assembly. The screwdriver must be approved for electrical work. Some screwdrivers have material that appears to be insulating material but is not insulating. Also, the insulating material might be worn or missing. Do not use tools with missing worn, or cracked insulation and only approved tools have insulation that you can be sure is protection against shock.
531X111PSHAPG3具有用于电机场电路的脉冲变压器
【其他型号推荐】
| GE | IS200STCIH6AED | GE | IS230TNSVH3A | GE | DS200TCCAG1 BAA |
| GE | IS200TBAIH1CCC | GE | IS230TVBAH2A | GE | DS200TCEAG1 BNE |
| GE | IS200TBCIH2CAA | GE | IS420ESWBH3A | GE | IS210AEBIH3BEC |
| GE | IS200TBCIS2CCD | GE | IS420ESWBH2A | GE | IS210AEBIH3BED |
| GE | IS200TDBTH6ABC | GE | IS420UCSCH2A-C-V0.1-A | GE | IS210AEDBH4AGD |
| GE | IS200TDBTH6ACD | GE | IS420UCSCH1A | GE | IS210AEPSG1AFC |
| GE | IS200TPROH1BCB | GE | DS200ACNAG1ADD | GE | IS210BPPBH2BMD |
| GE | IS200TPROS1CBB | GE | DS200ADGIH1AAA | GE | IS210SAMBH2AA |
| GE | IS200TREAH2AED | GE | DS200ADPBG1ABB | GE | IS210WSVOH1AE |
| GE | IS200TREGH1BEC | GE | DS200CPCAG1ABB | GE | IS215ACLEH1BB |
| GE | IS200TRPAH2AHE | GE | DS200CTBAG1ADD | GE | IS215UCVEH2AB |
| GE | IS200TSVCH1AJE | GE | DS200DCFBG1 BGB | GE | IS215UCVEH2AE |
| GE | IS200TTURH1CFD | GE | DS200DCFBG1BLC | GE | IS215UCVEM10A |
| GE | IS200TVBAH2ACC | GE | DS200DMCBG1AED | GE | IS215VPROH1BD |
| GE | IS200TVIBH2BBB | GE | DS200DMCBG1AKG | GE | IS220PAICH1A |
| GE | IS200VAICH1DAB | GE | DS200DPCBG1AAA | GE | IS220PAICH2A |
| GE | IS200VCRCH1B | GE | DS200DSPCH1ADA | GE | IS220PAOCH1A |
【常见问题】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！
问：您的交货时间如何？
答：我们有很多库存商品，3-5天您将收到它。
问：你们提供保修吗？
答：是的，我们为所有剩余的部件提供1年保修。
问：您可以接受哪些付款方式？
答：通常我们在中国大陆接受T/T和人民币转账
