【产品详情】

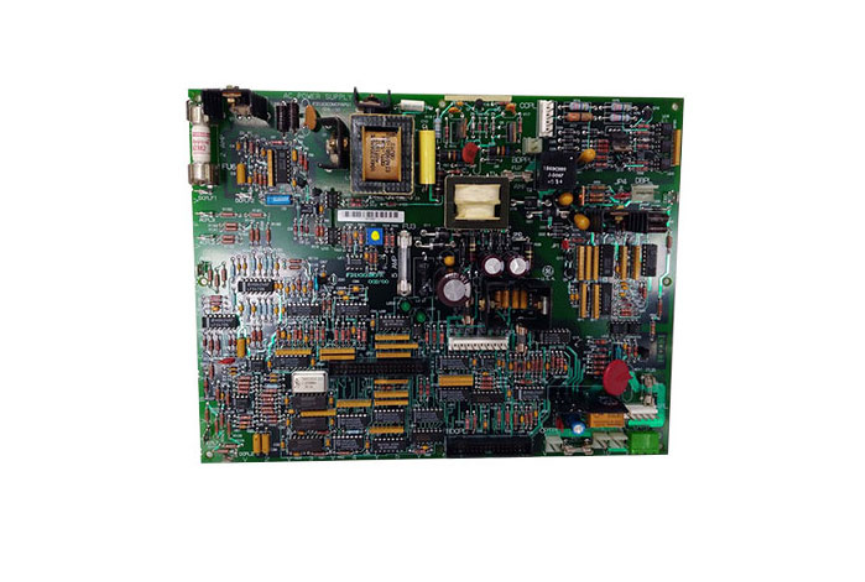

GE端子板继电器卡531X111PSHANG3提供驱动使用的5v dc、15v dc和24v dc电流。它还具有用于电机场电路的脉冲变压器。GE终端板继电器卡531X111PSHANG3包括更换3TB组件。该组件通过三根连接到电路板上的连接器的电线连接到电路板上。此外，该组件有一个带状电缆连接到它。所述组件连接到所述驱动器中所述板柜内部的安装板上。
您必须考虑到这样一个事实，即所有带状电缆都要求您使用避免损坏的技术断开并重新连接它们。组成带状电缆的细线很容易损坏，并可能与连接器断开。必须避免拉扯带状电缆而断开电缆。正确的方法是用一只手抓住塑料接头的带状电缆。用另一只手稳定组件并将连接器从组件中拔出。
五个螺丝将有缺陷的组件固定在安装板上。使用螺丝刀拆卸螺钉，并将螺钉放在安全的地方。如果任何螺钉落入驱动器或卡在任何其他部件中，请停止此程序并取出螺钉。当您重新启动驱动器时，松动的螺钉可能会损坏驱动器。
【英文介绍】
The GE Terminal Board Relay Card 531X111PSHANG3 supplies the 5 V dc, 15 V dc, and 24 V dc current used by the drive. It also features the pulse transformer for the motor field circuitry. The GE Terminal Board Relay Card 531X111PSHANG3 includes the replacement of the 3TB assembly. The assembly is attached to the board with three wires that are attached to connectors on the board. Also, the assembly has a ribbon cable attached to it. The assembly is attached to a mounting plate in the interior of the board cabinet in the drive.
You must consider the fact that all ribbon cables require you to disconnect and reconnect them using a technique that avoids damage. The fine wires that comprise a ribbon cable are easily damaged and can be disconnected from the connector. You must avoid disconnecting the cable by pulling on the ribbon cable. The proper technique is to grasp the ribbon cable by the plastic connector with one hand. Use your other hand to steady the assembly and pull the connector out of the assembly.
Five screws secure the defective assembly to the mounting plate. Use a screwdriver to remove the screws and keep the screws together in a safe place. If any screws fall into the drive or become lodged in any other components, stop the procedure and retrieve the screws. The loose screws might damage the drive when you apply power to the drive during restart.
【其他型号推荐】
| GE | 350-007740-850L | GE | 336A5026ADP13 | GE | IS220PAICH2A |
| GE | 04220FL11232A | GE | IS230SNRTH2A | GE | IS200EGPAG1BCA |
| GE | H201Ti | GE | IS200WETBH1ABA | GE | IS200EPSMG1AED |
| GE | IS220UCSAH1A | GE | SR750-P5-G5-S5-HI-A20-R-T | GE | IS200ERIOH1AAA |
| GE | H201Ci-1 | GE | IS200SRTDH2ACB | GE | IS200HSL AH2ADE |
| GE | UR6CH | GE | IS220YDIAS1A | GE | GE IC698CPE020-JX |
| GE | UR6TH | GE | DS200L DCCH1ANA | GE | VMIVME-7750 |
| GE | UR6UH | GE | IS230SNIDH1A | GE | GE IS200SPROH1AAB MRP663860 |
| GE | UR8LH | GE | IS230SNRTH2A | GE | GE IS200TSVCH2ADC MRP061873 |
| GE | UR8NH | GE | IS230SRTDH2A | GE | GE IS200TSVCH2AED MRP246517 |
| GE | UR9EH | GE | IS230STAOH2A | GE | GE IS210BPPBH2CAA |
【常见问题】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！
问：您的交货时间如何？
答：我们有很多库存商品，3-5天您将收到它。
问：你们提供保修吗？
答：是的，我们为所有剩余的部件提供1年保修。
问：您可以接受哪些付款方式？
答：通常我们在中国大陆接受T/T和人民币转账
