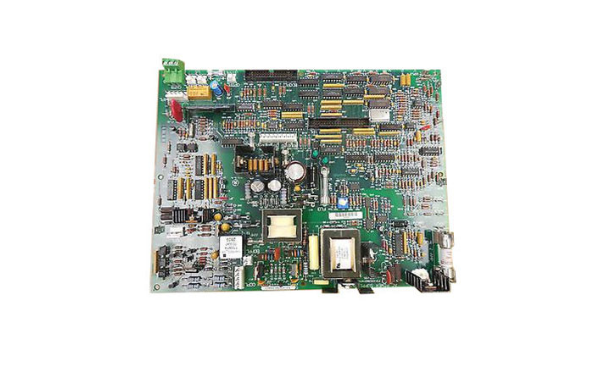

531X111PSHALG1该组件连接到驱动器的金属表面
【产品详情】
GE端子板继电器卡531X111PSHALG1提供驱动使用的5v dc、15v dc和24v dc电流。它还具有用于电机场电路的脉冲变压器。GE终端板继电器卡531X111PSHALG1还包括3TB组件，该组件连接到驱动器的金属表面。该组件通过三根电线连接到531X111PSHALG1，您必须从有缺陷的组件断开，并在安装替换组件时重新连接。
连接到组件的带状电缆也必须断开。抓住连接器上的带状电缆，用另一只手固定组件。将带状电缆拉出并移到远离工作区域的一侧。
使用螺丝刀拆卸固定组件在安装面上的5颗螺钉，并拆卸支架上的螺钉。将螺钉放在一边，用于固定更换组件。如果任何螺钉落入驱动器并卡在组件中，您必须定位并从驱动器中取出它们。使用真空软管附件来清洁该区域。
定位更换组件，并标记安装钻孔位置。用钻头在螺丝上打孔。然后，插入螺钉并拧紧以固定组件。将三根电线连接到531X111PSHALG1，并将它们插入连接器MOV1、MOV2和MOV3。在把三根电线连接到电路板上之前，先把它们排好。
531X111PSHALG1该组件连接到驱动器的金属表面
【英文介绍】
GE terminal board Relay card 531X111PSHALG1 provides 5v dc, 15v dc, and 24v dc currents for drive use. It also has a pulse transformer for electric field circuits. The GE terminal board relay card 531X111PSHALG1 also includes a 3TB component that is attached to the metal surface of the driver. The component is connected to 531X111PSHALG1 via three wires, which you must disconnect from the defective component and reconnect when installing a replacement component.
The ribbon cable connected to the assembly must also be disconnected. Grab the ribbon cable on the connector and secure the assembly with your other hand. Pull the ribbon cable out and move it to the side away from the work area.
Use a screwdriver to remove the five screws on the mounting surface and remove the screws from the support. Set the screw aside for securing the replacement assembly. If any screws fall into the drive and get stuck in the component, you must locate and remove them from the drive. Use a vacuum hose attachment to clean the area.
Locate the replacement component and mark the position of the drilling holes. Drill holes in the screws with a drill bit. Then, insert the screws and tighten them to secure the assembly. Connect three wires to 531X111PSHALG1 and plug them into connectors MOV1, MOV2 and MOV3. Line up the three wires before connecting them to the circuit board.
531X111PSHALG1该组件连接到驱动器的金属表面
【其他型号推荐】
| GE | 350-007740-850L | GE | 336A5026ADP13 | GE | IS220PAICH2A |
| GE | 04220FL11232A | GE | IS230SNRTH2A | GE | IS200EGPAG1BCA |
| GE | H201Ti | GE | IS200WETBH1ABA | GE | IS200EPSMG1AED |
| GE | IS220UCSAH1A | GE | SR750-P5-G5-S5-HI-A20-R-T | GE | IS200ERIOH1AAA |
| GE | H201Ci-1 | GE | IS200SRTDH2ACB | GE | IS200HSL AH2ADE |
| GE | UR6CH | GE | IS220YDIAS1A | GE | GE IC698CPE020-JX |
| GE | UR6TH | GE | DS200L DCCH1ANA | GE | VMIVME-7750 |
| GE | UR6UH | GE | IS230SNIDH1A | GE | GE IS200SPROH1AAB MRP663860 |
| GE | UR8LH | GE | IS230SNRTH2A | GE | GE IS200TSVCH2ADC MRP061873 |
| GE | UR8NH | GE | IS230SRTDH2A | GE | GE IS200TSVCH2AED MRP246517 |
| GE | UR9EH | GE | IS230STAOH2A | GE | GE IS210BPPBH2CAA |
【常见问题】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！
问：您的交货时间如何？
答：我们有很多库存商品，3-5天您将收到它。
问：你们提供保修吗？
答：是的，我们为所有剩余的部件提供1年保修。
问：您可以接受哪些付款方式？
答：通常我们在中国大陆接受T/T和人民币转账
