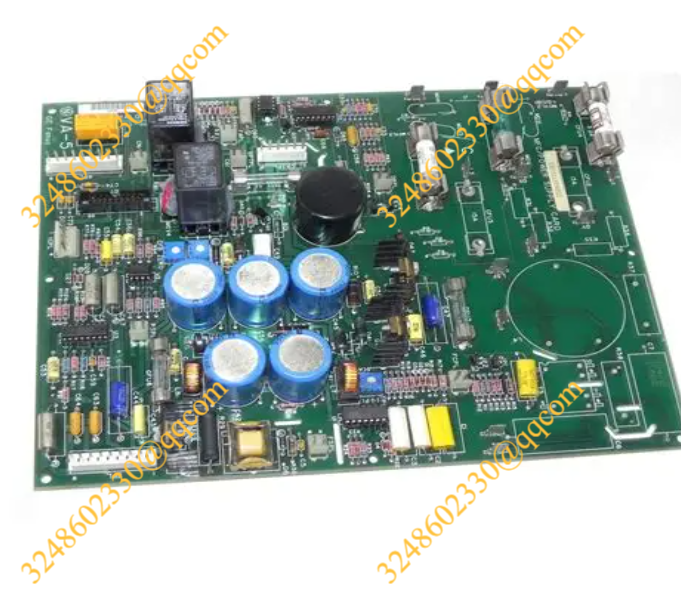

531X100CCHARM1有五个引脚电缆连接器和两个头连接器

【产品详情】

531X100CCHARM1是GE制造的PCB(印刷电路板)。该板组件被设计为GE通用驱动系统的一部分，如DC-300驱动器。这些驱动器通常用于完成工业环境中的各种任务。

531X100CCHARM1作为控制板。它携带4285、004/0、005/0、FR00/0等代码和F31X100CCHBCG1的副板号。该板是钻在每个角落，以允许安装选项。其他工厂制造的孔放置在其他地方。531X100CCHARM1最多可接受两块辅助板。它有五个雄性垂直引脚电缆连接器和两个头连接器，允许与辅助设备，其他板和板外组件通信。

531X100CCHARM1上的其他组件包括一个按钮开关和一个拨动开关，五个电位器，晶体管，20多个跳线开关和一个绿色LED指示灯。该板有二十多个集成电路设计用于各种操作;这些通常标有其原始零件号，以便快速识别。该板采用二极管、聚酯乙烯基、电解材料和陶瓷制成的电容器、金属薄膜制成的电阻器和电阻网络阵列。

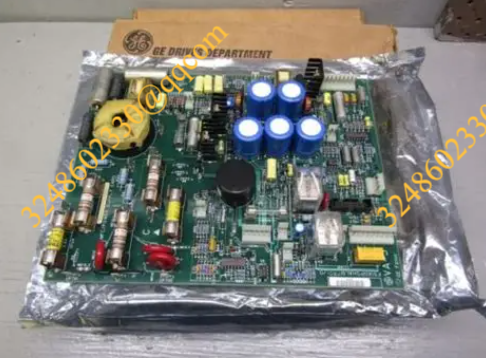

531X100CCHARM1有五个引脚电缆连接器和两个头连接器

【英文介绍】

The 531X100CCHARM1 is a PCB(printed circuit board) manufactured by GE. The board assembly is designed to be part of GE's general purpose drive system, such as the DC-300 drive. These drives are commonly used to accomplish a variety of tasks in industrial environments.

531X100CCHARM1 as the control board. It carries the codes 4285, 004/0, 005/0, FR00/0, and the sub-board number F31X100CCHBCG1. The board is drilled at each corner to allow for mounting options. Other factory-made holes are placed elsewhere. The 531X100CCHARM1 accepts up to two auxiliary boards. It has five male vertical pin cable connectors and two head connectors that allow communication with auxiliary devices, other board and off-board components.

Other components on the 531X100CCHARM1 include a push button switch and a toggle switch, five potentiometers, transistors, more than 20 jumper switches and a green LED indicator. The board has more than twenty integrated circuits designed for various operations; These are usually labeled with their original part number for quick identification. The board uses diodes, polyester vinyl, electrolytic materials and capacitors made of ceramics, resistors and resistor network arrays made of metal films.

531X100CCHARM1有五个引脚电缆连接器和两个头连接器

【其他型号推荐】

【常见问题】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！

问：您的交货时间如何？

答：我们有很多库存商品，3-5天您将收到它。

问：你们提供保修吗？

答：是的，我们为所有剩余的部件提供1年保修。

问：您可以接受哪些付款方式？

答：通常我们在中国大陆接受T/T和人民币转账
