269PLUS-DO-100N-120 具有键盘和48个字符的字母数字显示

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

GE Multilin继电器型号269PLUS-DO-100N-120是一种电机管理继电器，具有广泛的功能和保护功能，使其成为各种交流电机保护应用的合适选择。该继电器模型具有100欧姆镍RTD和120 VAC电源控制电压。如果这些规格不能满足您的应用要求，GE Multilin 269 PLUS继电器可用于其他配置。

微机控制的269PLUS-DO-100N-120继电器具有键盘和48个字符的字母数字显示，用于编程继电器，监控操作，检查和故障排除报警条件等。如果在269PLUS-DO-100N-120继电器的内置自检程序中发现任何故障，该前面板上的报警指示灯会向操作员发出服务要求的警报。存储在继电器的非易失性存储器中的信息也通过键盘和显示器访问。

继电器设定值、学习参数和预跳闸值存储在非易失性存储器中，确保它们在控制电源丢失时保持完整。在非易失性存储器中还存储有电机的统计记录。这包括:

电机运行小时数(合计)

MegaWattHours(总)

电动机启动

继电器旅行

GE Multilin 269 PLUS继电器有两个版本，每个版本之间有几个变化。269PLUS-DO-100N-120是一种抽拔(DO)型号，这意味着它可以从服务中移除而不会导致电机关闭。269 PLUS继电器的标准版和加长版之间有一些区别。269PLUS-DO-100N-120等DO型号只有一组报警接点和一组辅助1接点，不符合CE合规要求。

269PLUS-DO-100N-120 具有键盘和48个字符的字母数字显示

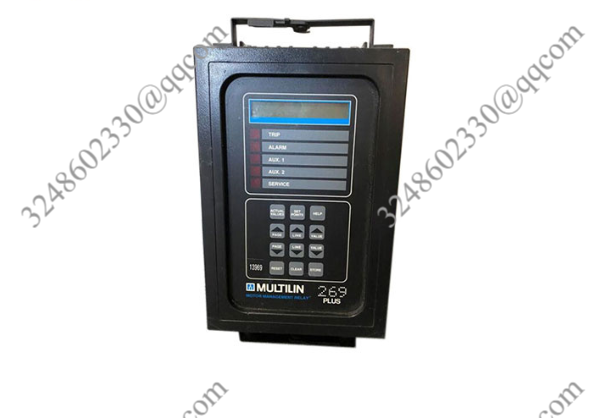

GE Multilin relay Model 269PLUS-DO-100N-120 is a motor management relay with a wide range of functions and protection features, making it a suitable choice for a variety of AC motor protection applications. The relay model has a 100 ohm nickel RTD and 120 VAC power supply control voltage. If these specifications do not meet your application requirements, the GE Multilin 269 PLUS relay can be used in other configurations.

The microcomputer controlled 269PLUS-DO-100N-120 relay features a keyboard and 48-character alphanumeric display for programming relays, monitoring operations, checking and troubleshooting alarm conditions, and more. If any fault is found in the built-in self-test procedure of the 269PLUS-DO-100N-120 relay, the alarm indicator light on the front panel alerts the operator to the service requirements. Information stored in the relay's non-volatile memory is also accessed via the keyboard and display.

Relay setpoints, learning parameters, and pre-trip values are stored in non-volatile memory, ensuring that they remain intact in the event of loss of control power. A statistical record of the motor is also stored in the non-volatile memory. This includes:

Motor operating hours (total)

MegaWattHours(total)

Motor starting

Relay travel

The GE Multilin 269 PLUS relay comes in two versions, with several variations between each version. The 269PLUS-DO-100N-120 is a pull-out (DO) model, which means it can be removed from service without causing the motor to shut down. There are some differences between the standard version and the extended version of the 269 PLUS relay. DO models such as the 269PLUS-DO-100N-120 have only one set of alarm contacts and one set of auxiliary 1 contacts, which do not meet CE compliance requirements.

269PLUS-DO-100N-120 具有键盘和48个字符的字母数字显示

【下单请联系我们】

欢迎访问厦门雄霸

销售经理：何小姐

地址：厦门市思明区吕岭路1733号创想中心2009室

（1）24小时电子邮件回复（12小时）;

（2）对于运往亚洲以外的国家/地区，请联系卖方。

【常见问题】

无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！

问：您的交货时间如何？

答：我们有很多库存商品，3-5天您将收到它。

问：你们提供保修吗？

答：是的，我们为所有剩余的部件提供1年保修。

问：您可以接受哪些付款方式？

答：通常我们在中国大陆接受T/T和人民币转账
