IS200CABPG1ACA 用于创新系列驱动的GE控制组件背板

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

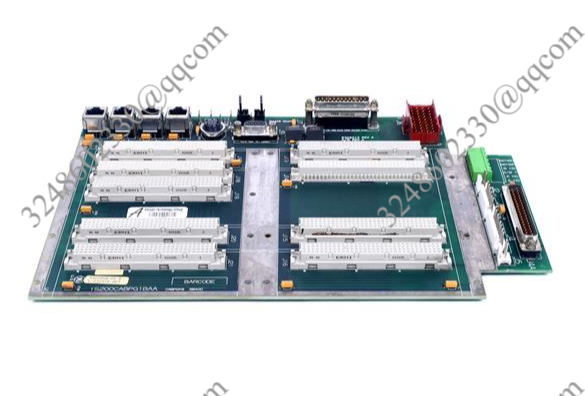

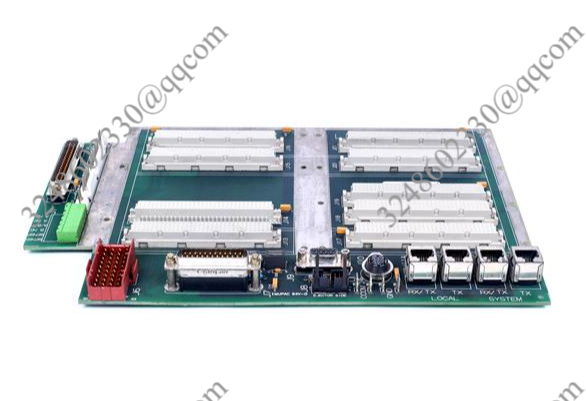

IS200CABPG1ACA是一款用于创新系列驱动的GE控制组件背板。

IS200CABPG1ACA也被称为CABP板。该板的功能是为插入的板提供接口，并与外部信号进行交互。该单板提供与其他外部接口的连接。其中一些连接包括电源输入、ISBus端口、诊断工具、前面板仪表和前面板键盘。该板通常安装在创新系列板架上。机架能够为插入IS200CABPG1ACA的电路板提供安装点。

IS200CABPG1ACA的设计使所有非板连接不会意外插入错误的插孔。电路板上的电路板连接倾向于使用不同类型的连接，是单独键控的，或者具有相同的引脚分配，因为它们可以互换而不会对电路板造成任何损害。只有特定的单板可以插入到CABP板上。1号槽位配置BAIA单板。DSPX单板分配到2号槽位。槽位3被ACL_板或GBIA/PBIA模块占用。槽位4分配给一个BIC_板。BPI_或FOSA板被分配到5号槽位。该单板的E1和E2插接连接器接GND。E3和E4插入式连接器连接到CCOM。该板上的j1 ~ j12连接器为对外接口连接。J13-J21连接器是实际的卡槽。

IS200CABPG1ACA 用于创新系列驱动的GE控制组件背板

The IS200CABPG1ACA is a GE control component backplane for innovative series drives.

IS200CABPG1ACA is also known as CABP board. The function of the board is to provide an interface to the inserted board and to interact with external signals. The board provides connections to other external interfaces. Some of these connections include power inputs, ISBus ports, diagnostic tools, front panel meters, and front panel keyboards. The board is usually mounted on the innovative series board rack. The rack provides a mounting point for boards that plug into the IS200CABPG1ACA.

The IS200CABPG1ACA is designed so that all off-board connections do not accidentally insert the wrong jack. Board connections on board tend to use different types of connections that are keyed separately, or have the same pin assignment, as they can be interchanged without causing any damage to the board. Only certain boards can be inserted into CABP boards. Slot 1 houses the BAIA board. The DSPX is allocated to slot 2. Slot 3 is occupied by the ACL_ board or GBIA/PBIA module. Slot 4 is assigned to a BIC_ board. The BPI_ or FOSA board is allocated to slot 5. The E1 and E2 connectors of the board are connected to GND. E3 and E4 plug-in connectors are connected to CCOM. The j1 to j12 connectors on the board are external interfaces. The J13-J21 connector is the actual card slot.
