IS200BPIIH1A 与IGCT开关设备接口

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

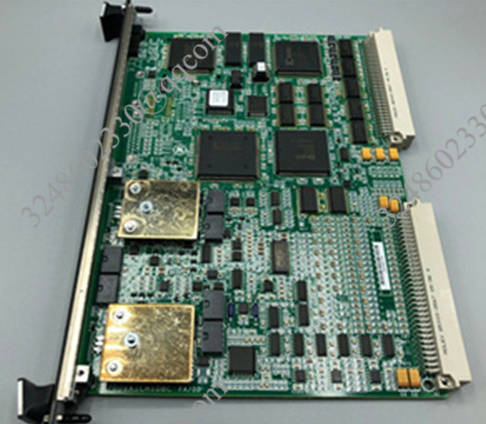

IS200BPIIH1A是GE Speedtronic Mark VI系列中使用的桥接电源接口板。

IS200BPIIH1A用于创新系列驱动器。它与IGCT开关设备接口，并为其他板(如与BICI板一起的Expander负载源板(IS200GGXIG))提供许多反馈信号、控制信号和可访问点。BPII板使用RS-422连接器来通信门命令和状态信号。它还在GGXI板之间中继多达24个门状态反馈信号和门发射命令。

IS200BPIIH1A设计了两个128针背板连接器，标记为P1和P2。该板也有两个68针连接器安装到其前面板。它们被标记为JGATE1和JGATE2，通常用于与GGXI板接口。前面板还有两个夹子，在插入机架系统后将电路板固定在适当的位置，并标有GE徽标，板的识别号码，以及“仅安装在6号槽”的警告。如果单板安装不正确，可能造成单板损坏或系统损坏。

IS200BPIIH1A型在其表面也有四个TP测试吊舱。它们位于两条平行线上。这些测试舱在电路板开发期间使用，一旦电路板安装就不使用。

有关IS200BPIIH1A板的工作原理或安装程序的详细信息，请参阅OEM设备提供的原始数据表或手册。如果文件不再可用，我们可以提供替代您的订单。

IS200BPIIH1A 与IGCT开关设备接口

The IS200BPIIH1A is a bridge power interface board used in the GE Speedtronic Mark VI series.

The IS200BPIIH1A is used for the innovative series of drives. It interfaces with the IGCT switchgear and provides many feedback signals, control signals, and access points for other boards such as the Expander load source board (IS200GGXIG) with the BICI board. The BPII board uses RS-422 connectors to communicate gate commands and status signals. It also relays up to 24 gate status feedback signals and gate launch commands between GGXI boards.

The IS200BPIIH1A is designed with two 128-pin backplane connectors, labeled P1 and P2. The board also has two 68-pin connectors mounted to its front panel. They are labeled JGATE1 and JGATE2 and are typically used to interface with the GGXI board. The front panel also has two clamps that hold the board in place after it is plugged into the rack system, and is marked with the GE logo, the board's identification number, and a warning to "Install in Slot 6 only." Improper board installation may cause board damage or system damage.

The IS200BPIIH1A also has four TP test pods on its surface. They lie on two parallel lines. These test pods are used during board development and are not used once the board is installed.

For more information about how the IS200BPIIH1A board works or how to install it, please refer to the original data sheet or manual provided by your OEM device. If the file is no longer available, we can provide a replacement for your order.
