IS200BPIBG1AEB 有四种主要的连接器类型

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

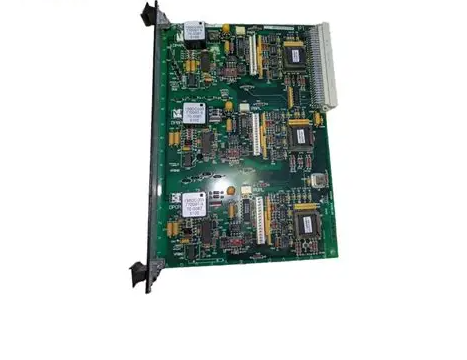

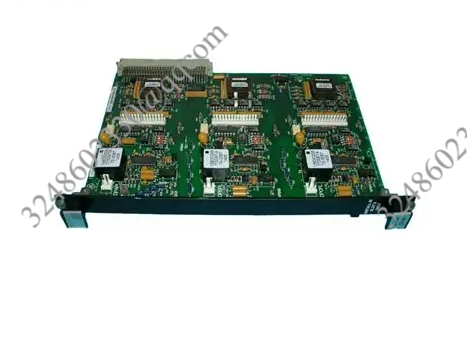

型号IS200BPIBG1AEB是通用电气公司生产的IGBT驱动桥个性接口板，用于Mark VI IS2000系列。当使用该模型时，它将为P1连接器逻辑电平数字控制信号提供信号调理，并将信号调理到三个或可能六个栅极驱动器/分流反馈板以及隔离的VCO反馈电路，这些电路将反过来监测直流链路和VBC和VAB相位输出电压。IS200BPIBG1AEB模型的另一个特点是可以捕获Gate Driver板发现的故障，然后报告故障信息。发送到或从附加的栅极驱动板发送的逻辑信号将是双光耦合的，与来自17.7 Vac馈电的5 V临时电源的隔离电压相耦合。

在IS200BPIBG1AEB型号上有六个可用的电源;这些电源来自于三个变压器的次级电源，每相一个。有17.7 Vac的电压交流电;这个Vac是一个方波输入，将提供给从P1连接器提供的变压器初级。第二次级电路还可以整流和滤波全波，以提供电压反馈压控振荡器电路所需的12 V隔离电压。BPIB模型上有一个5 V的控制逻辑，将通过P1连接器供电。

该模型可以控制上、下栅极驱动器的故障，并且每个相位单独锁存。当相邻IGBT被命令打开时，与驱动电路相关的锁存故障将在合适的相位P故障线上发出信号。有关IS200BPIBG1AEB故障控制的更多信息，请参阅GEI-100266使用手册的第三页。

关于IS200BPIBG1AEB的常见问题

IS200BPIBG1AEB型号上有多少连接器?

IS200BPIBG1AEB型号上有四种主要的连接器类型。PAPL、PBPL、PCPL或A相驱动板接口连接器和DPAPL、DPBPL、PCPL或17.7交流电源连接器。PAPL、PBPL和PCPL连接器各有16个引脚，每个引脚具有单独的功能。DPAPL、DPBPL和DPCPL连接器各有两个引脚。有关所有引脚及其命名法的信息，请参见表7、5、4和3中的命名法及其功能。

IS200BPIBG1AEB是什么型号的?

IS200BPIBG1AEB型号是IGBT驱动桥个性接口板。它用于提供与O1连接器连接和工作时所需的信号调理。它使用逻辑级数字控制信号与三到六个门驱动/分流反馈板以及隔离的VCO反馈电路一起工作。

IS200BPIBG1AEB 有四种主要的连接器类型

Model IS200BPIBG1AEB is an IGBT transaxle personality interface board manufactured by General Electric for the Mark VI IS2000 series. When the model is used, it will provide signal conditioning for the P1 connector logic level digital control signal and conditioning the signal to three or possibly six gate drivers/shunt feedback boards and isolated VCO feedback circuits that will in turn monitor the DC link and VBC and VAB phase output voltages. Another feature of the IS200BPIBG1AEB model is the ability to capture faults found by the Gate Driver board and then report the fault information. The logic signal sent to or from the additional gate driver board will be dual-optically coupled to the isolation voltage from the 5 V temporary power supply from the 17.7 Vac feed.

There are six available power supplies on the IS200BPIBG1AEB model; These power supplies come from the secondary power supply of three transformers, one for each phase. Ac with 17.7 Vac voltage; This Vac is a square-wave input that will be supplied to the transformer primary supplied from the P1 connector. The second secondary circuit can also rectify and filter the full wave to provide the 12 V isolation voltage required for the voltage feedback VCO circuit. There is a 5 V control logic on the BPIB model that will be powered through P1 connectors.

The model can control the failure of the upper and lower gate drivers, and each phase is latched separately. When the adjacent IGBTs are commanded to open, the latch fault associated with the drive circuit will signal on the appropriate phase P fault line. For more information on IS200BPIBG1AEB fault control, see page 3 of the GEI-100266 Operator's manual.

FAQ about IS200BPIBG1AEB

How many connectors are there on IS200BPIBG1AEB models?

There are four main connector types available on the IS200BPIBG1AEB model. PAPL, PBPL, PCPL, or A-phase driver board interface connectors and DPAPL, DPBPL, PCPL, or 17.7 AC power connectors. The PAPL, PBPL, and PCPL connectors each have 16 pins, each with a separate function. The DPAPL, DPBPL, and DPCPL connectors each have two pins. For information about all pins and their nomenclature, see nomenclature and their functions in Tables 7, 5, 4, and 3.

What model is IS200BPIBG1AEB?

The IS200BPIBG1AEB model is an IGBT drive axle personality interface board. It is used to provide the signal conditioning required when connected and working with the O1 connector. It uses logic-level digital control signals to work with three to six gate drive/shunt feedback boards and isolated VCO feedback circuits.

IS200BPIBG1AEB 有四种主要的连接器类型
