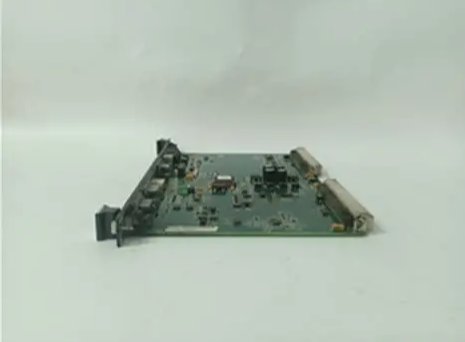

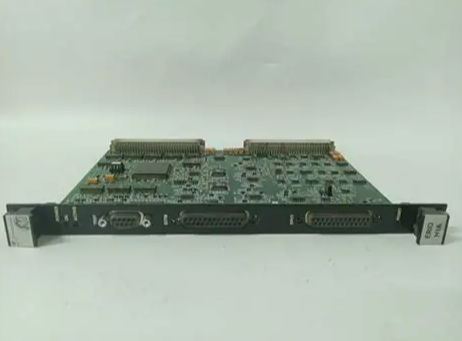

IS200BLIGH1A 作为LAN接口- genius板

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200BLIGH1A是GE为Speedtronic Mark VI系列生产的电路板组件。MKVI有一个基于pc的操作界面，装载了GE控制系统工具箱和simplicity Graphics等专有软件。MKVI支持以太网通信。

IS200BLIGH1A作为LAN接口- genius板。该板占辅助Profibus-DP接口模块(IS215PBIAH_A__.)的一半。该模块被设计为Profibus-DP网络上的I/O块，以提供驱动器和控制器之间的集成。该模块的另一半是通用通信系统Profibus-DP板(由SST Inc.制造)，该模块连接到板机架内的CABP电缆组件背板。

IS200BLIGH1A由五个板连接器组成。这包括P8背板连接器、未定义的P1和P2连接器以及P3连接器。UCS单板通过P3连接器安装在4个支架和接口上，用于在两个单板之间传输所有数据、数字地址和控制信号。

IS200BLIGH1A有三个LED指示灯，其中两个位于其前面板上。这两个前面板指示灯为“OK”和“诊断”。第三个指示灯表示P5电源的电源状态。

IS200BLIGH1A有一个跳线(JP1)，不应该由用户插入。值得注意的是，测试点TP1和TP2以及连接器J1和J2仅用于工程测试。关于IS200BLIGH1A板或IS215PBIAH模块的更多信息可以在GE出版物GEI-100419中找到。

IS200BLIGH1A 作为LAN接口- genius板

The IS200BLIGH1A is a circuit board assembly manufactured by GE for the Speedtronic Mark VI series. The MKVI has a PC-based interface loaded with proprietary software such as GE Control System Toolbox and simplicity Graphics. MKVI supports Ethernet communication.

IS200BLIGH1A serves as a LAN interface - genius board. The board occupies the auxiliary Profibus-DP interface module (IS215PBIAH_A__.) Half of it. The module is designed as an I/O block on the Profibus-DP network to provide integration between drivers and controllers. The other half of the module is the universal Communication System Profibus-DP board (manufactured by SST Inc. Manufactured), the module is connected to the CABP cable assembly backplane in the board frame.

The IS200BLIGH1A consists of five board connectors. This includes P8 backplane connectors, undefined P1 and P2 connectors, and P3 connectors. The UCS board is mounted on four brackets and interfaces via P3 connectors to transfer all data, digital addresses, and control signals between the two boards.

The IS200BLIGH1A has three LED indicators, two of which are located on its front panel. The two front panel indicators are "OK" and "Diagnosis." The third indicator indicates the power status of P5 power supplies.

The IS200BLIGH1A has a jumper (JP1) that should not be inserted by the user. It is important to note that test points TP1 and TP2 and connectors J1 and J2 are only used for engineering tests. More information about the IS200BLIGH1A board or IS215PBIAH module can be found in GE publication GEI-100419.

IS200BLIGH1A 作为LAN接口- genius板
