IS200BICLH1BAA 作为IGBT驱动/源桥接口板

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

产品描述

IS200BICLH1BAA是GE印刷电路板制造的Mark VI系列的组件。Mark VI是通用电气用于燃气和蒸汽轮机管理的Speedtronic系列的第五代产品。MKVI在硬件和软件之间进行了密切的协调，从一个带有13或21槽VME卡机架的控制模块开始。Mark VI系列可用于小型应用和具有从一个到多个模块的大型集成系统的单形和三重冗余形式。

IS200BICLH1BAA作为IGBT驱动/源桥接口板。主控板与BPIA/BPIB或SCNV板等板之间的板接口。IS200BICLH1BAA还提供桥接和环境温度监测，以及面板和系统故障串接口。IS200BICLH1BAA上的控制逻辑通过电子可编程逻辑器件或EPLD配置在主控板的CPU中。

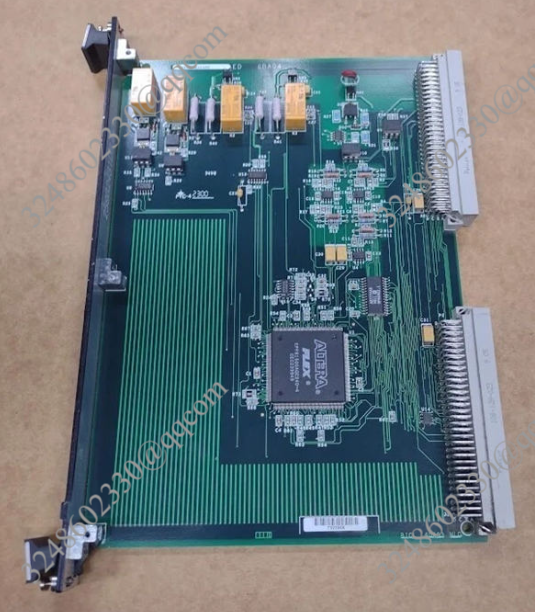

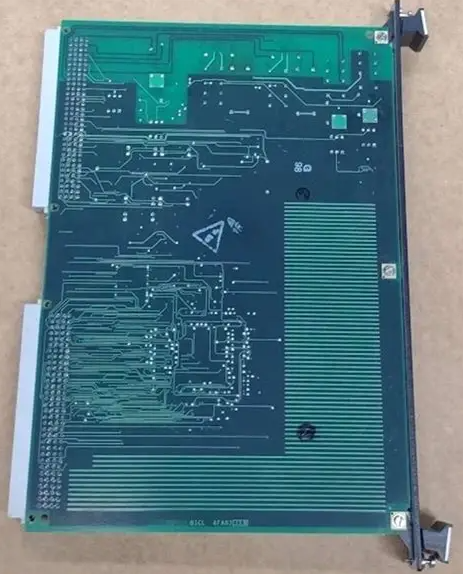

IS200BICLH1BAA由两个背板连接器构成。这些标着P1和P2。这些插头插入一个VME型机架。单板上没有其他连接器。该板有很少的组件，但确实有一个串行1024位存储器设备，以及四个继电器。每个继电器的上表面都印有继电器图。该板没有测试点，保险丝，或可调节的硬件。

我们的仓库团队将用防静电材料保护IS200BICLH1BAA在运输到你们工厂的过程中。电路板在任何时候都应被视为对静电敏感。安装程序可在GE出版物GEI-100264中找到。

IS200BICLH1BAA 作为IGBT驱动/源桥接口板

Product description

The IS200BICLH1BAA is a component of GE's Mark VI series of printed circuit boards. The Mark VI is the fifth generation of GE's Speedtronic family for gas and steam turbine management. The MKVI is closely coordinated between hardware and software, starting with a control module with a 13 - or 21-slot VME card rack. The Mark VI series can be used in both simplex and triple redundant forms for small applications and large integrated systems with from one to multiple modules.

The IS200BICLH1BAA serves as the IGBT driver/source bridge interface board. Board interface between the main control board and the BPIA/BPIB or SCNV board. The IS200BICLH1BAA also provides bridge and ambient temperature monitoring, as well as panel and system fault string interfaces. The control logic on the IS200BICLH1BAA is configured in the CPU of the main control board via an electronic programmable logic device or EPLD.

The IS200BICLH1BAA consists of two backplane connectors. These are labeled P1 and P2. These plugs plug into a VME type rack. There is no other connector on the board. The board has few components, but does have a serial 1024-bit memory device, as well as four relays. Relay drawings are printed on the upper surface of each relay. The board has no test points, fuses, or adjustable hardware.

Our warehouse team will protect IS200BICLH1BAA with anti-static materials during transportation to your factory. Circuit boards should at all times be considered to be electrostatic sensitive. The installer can be found in GE publication GEI-100264.

IS200BICLH1BAA 作为IGBT驱动/源桥接口板
