IS200BICLH1ACB 电阻热探测器传感器输入

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200BICLH1ACB通常在GE手册中被引用为BICL IGBT驱动源桥接接口板。该单板通过P1和P2两个连接器连接到GE Innovation系列的VME型机架。IS200BICLH1ACB的主要功能是允许创新系列驱动主控卡和安装的桥式个性接口板之间的通信。这些后一种板包括IS200BPIA, IS200BPIB和IS200SCNV，并将安装在与IS200BICLH1ACB BICL卡相同的应用程序中。

BICL板包括一个串行1024位存储设备。这种存储器在出厂时就被编程为带有板ID和修订信息。IS200BICLH1A之后的“CB”修订分别是功能修订和图稿修订。然而，两者都是向后兼容的，并且在这方面与不向后兼容的“A”版本有所不同。

物理特性:IS200BICLH1ACB有一个前面板，但是没有端口可以从模块的前面使用。面板包括BICL号码的板标识和圆形GE标识。电路板底部的三分之一处标有“只能安装在5号槽位”。重要的是要注意，这个板可以损坏安装到错误的插槽。

IS200BICLH1ACB包括四个继电器和四个电阻热探测器传感器输入，或rtd。RTD的温度可以通过单模式和双模式访问。有关使用BICL的所有信息都可以在GE出版物GEI-100264中找到，位于手册选项卡下。

IS200BICLH1ACB 电阻热探测器传感器输入

The IS200BICLH1ACB is commonly referred to in GE manuals as the BICL IGBT driver Source Bridge interface board. The board is connected to the VME type rack of the GE Innovation series through two connectors, P1 and P2. The main function of the IS200BICLH1ACB is to allow communication between the innovative series driver master card and the mounted bridge personality interface board. These latter boards include IS200BPIA, IS200BPIB, and IS200SCNV, and will be installed in the same application as the IS200BICLH1ACB BICL card.

The BICL board includes a serial 1024-bit storage device. The memory is programmed from the factory with the board ID and revision information. The "CB" revisions after IS200BICLH1A are functional revisions and draft revisions respectively. However, both are backward-compatible and differ in this respect from the "A" version, which is not backward-compatible.

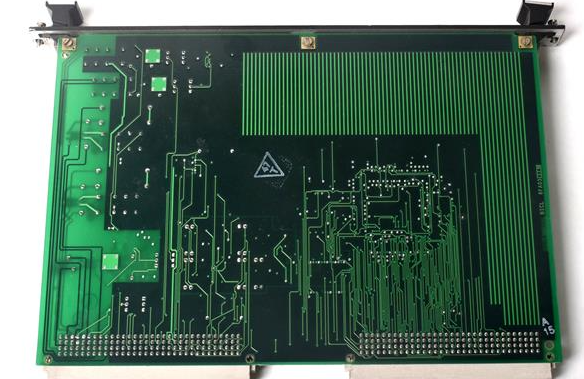

Physical characteristics: The IS200BICLH1ACB has a front panel, but no ports to use from the front of the module. The panel includes a board identifier for the BICL number and a circular GE identifier. The bottom third of the board is marked "Install in slot 5 only." It is important to note that this board can be damaged when installed into the wrong slot.

The IS200BICLH1ACB includes four relays and four resistance heat detector sensor inputs, or RTDS. The temperature of the RTD can be accessed through single and dual mode. All information on using BICL can be found in GE publication GEI-100264, under the Manuals TAB.

IS200BICLH1ACB 电阻热探测器传感器输入
