IS200BAIAH1BEE 应用接口卡

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200BAIAH1BEE是GE为其创新系列开发的桥接应用接口卡。

IS200BAIAH1BEE或BAIA旨在替代PCB。它有一个EEPROM，出厂预装固件。这个存储电路不应该被重新编程或移除。如果单板停止工作或损坏，则需要拆卸和更换整个单板。BAIA还使用RS-232C I/O接口，从DSPX板进入驱动系统键盘或PC。

IS200BAIAH1BEE应垂直放置到指定的控制卡机架组件中。在BAIA的面板上，有一个警告标签，提醒用户只能将该卡安装到机架上的1号插槽中。机架上的槽位是为特定的单板专门配置的。将单板插入除第一个槽位外的其他槽位会导致单板损坏。面板上有一个LED指示灯，标记为IMOK。

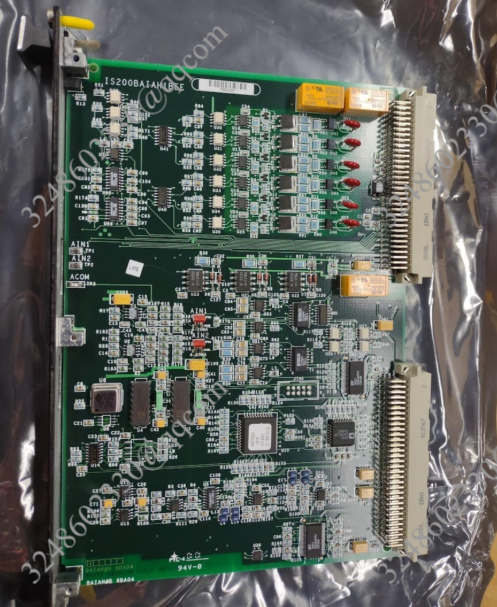

IS200BAIAH1BEE有许多不同的组件。它有3个继电器，一个JTAG连接器，5个跳线，两个变压器，一个电感，6个晶体管，6个二极管和50多个集成电路。在BAIA上还有一百多个电阻和电容器。主板背面有两个连接器，可插入卡机架组件背板上的卡槽。

如果您对IS200BAIAH1BEE的更多信息以及如何安装它感兴趣，请查看通用电气的数据表:GEI-100268A。

IS200BAIAH1BEE 应用接口卡

The IS200BAIAH1BEE is a bridging application interface card developed by GE for its series of innovations.

The IS200BAIAH1BEE or BAIA is designed to replace PCBS. It has an EEPROM, factory pre-installed firmware. This memory circuit should not be reprogrammed or removed. If the board stops working or is damaged, remove and replace the entire board. The BAIA also uses the RS-232C I/O interface to access the drive system keyboard or PC from the DSPX board.

The IS200BAIAH1BEE shall be placed vertically into the specified control card rack assembly. On the panel of the BAIA, there is a warning label reminding the user to only install the card into slot 1 on the rack. The slots on the rack are specially configured for specific boards. Inserting a board into a slot other than the first may damage the board. There is an LED indicator on the panel, labeled IMOK.

The IS200BAIAH1BEE has many different components. It has 3 relays, a JTAG connector, 5 jumpers, two transformers, an inductor, 6 transistors, 6 diodes, and more than 50 integrated circuits. There are also over a hundred resistors and capacitors on the BAIA. There are two connectors on the back of the motherboard that can be inserted into the card slots on the backplane of the card rack assembly.

If you are interested in more information about IS200BAIAH1BEE and how to install it, check out GE's data sheet :GEI-100268A.

IS200BAIAH1BEE 应用接口卡
